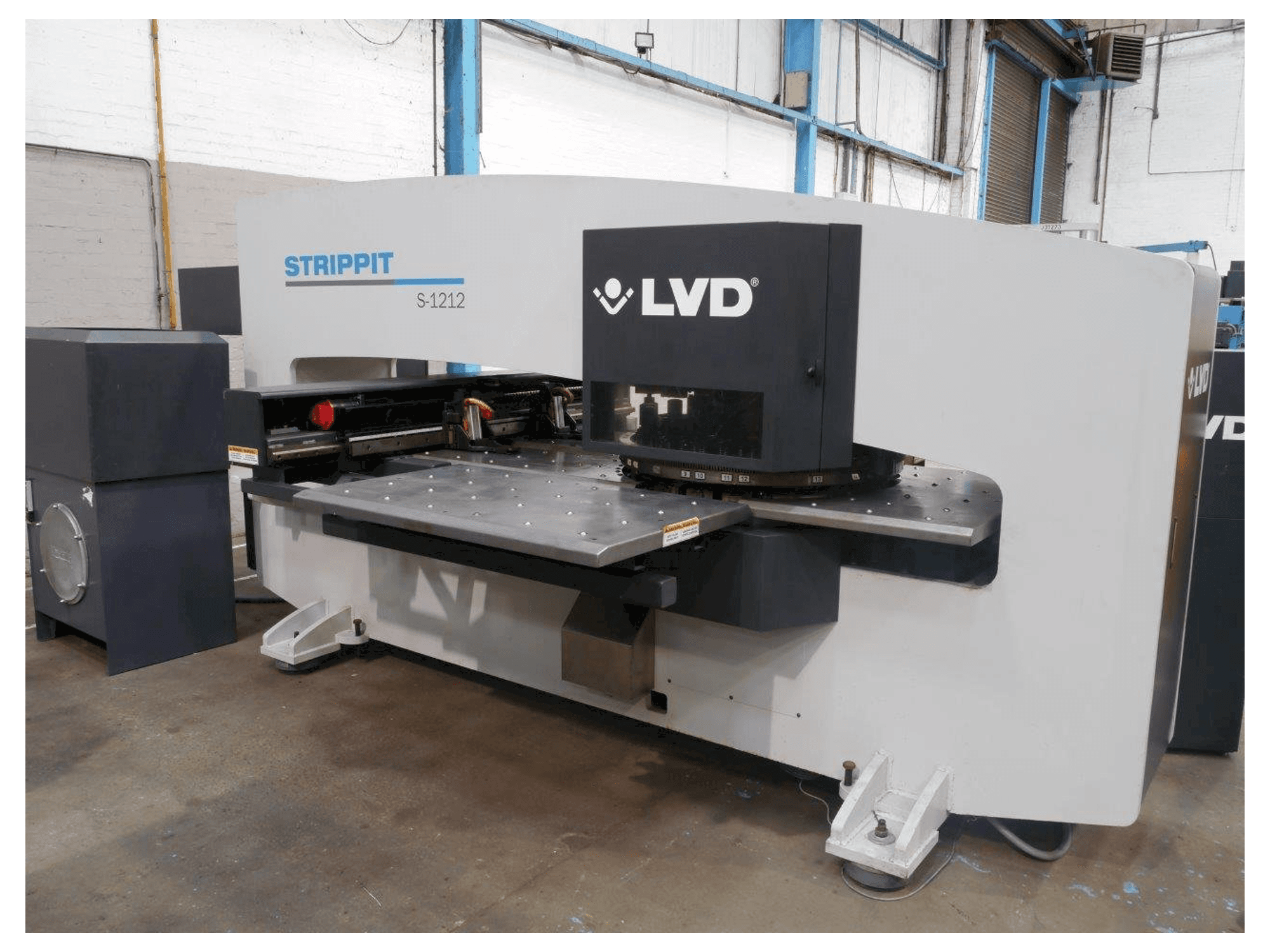

Front view of LVD STRIPPIT S 1212 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

LVD STRIPPIT S 1212

Photo Gallery

LVD - STRIPPIT S 1212GB-PUN-LVD-2011-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
LVD STRIPPIT S 1212 Punching Machine

Show in original language

This LVD STRIPPIT S 1212 Punching Machine was manufactured in the year 2011 in the United States. The model is operated through a Fanuc Series 18i ‑ PB control unit. This machine can work with a punching force of 200 kN. It is supplied with quantity of tooling.

Overview

brand: LVD
year: 2011
MODEL: STRIPPIT S 1212
application type: Punching
Location: United Kingdom
machine type: CNC Punch Press
control unit brand: FANUC

Technical Information - LVD STRIPPIT S 1212

Control Unit

Control Brand: FANUC
Control Model: Series 18i ‑ PB

Dimensions

Machine Depth: 2600 mm
Machine Height: 2250 mm
Machine Weight: 9120 kg
Table Length: 2590 mm
Table Load: 110 kg

Movement

X-axis Travel: 1326 mm
Y-axis Travel: 1337 mm

Technical Specification

Punching Force: 200 Kn

Additional Information

Additional equipment

Supplied with: Quantity of tooling

Machine Benefits

Qualitative Machine Benefits

Literature: manuals available in german

Technical Machine Benefits

Punching accuracy: 0,1mm + or ‑
Hole size: 88. 9mm at 2mm mild steel thickness, 30mm at 6mm mild steel thickness
Largest tool diameter: `d` (88. 9mm)
Feed clearance: 25mm
Turret configuration: 31 stations
Turret layout: 16 `a` (12,7mm) 10 `b` (31,7mm) 2 `c` (50. 8mm) 3 `d` (88,9mm) auto index stations
Sheet size: 1250mm x 1250mm
Hit rate @2mm working stroke: up to 900 hpm @ 1mm feed rate, up to 360 hpm @ 25mm feed rate
Fitted with: light guards

Machine History

Material thickness

6. 35 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
