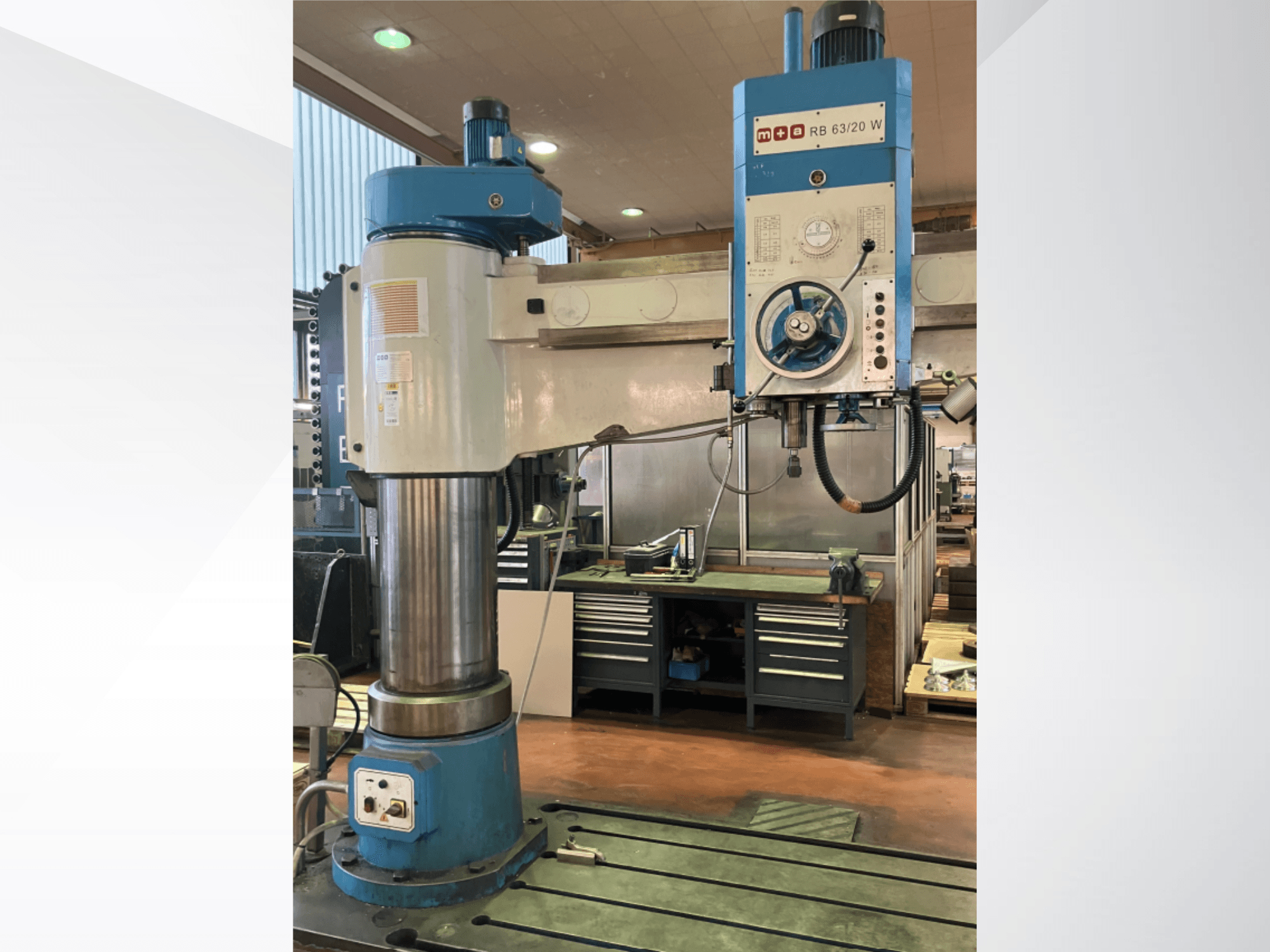

This 3-axis M+A RB 63/20 W drilling machine was manufactured in 2014. It features a maximum drilling diameter of 63 mm in steel and 80 mm in cast iron, with a maximum reach from the column of 2000 mm. The machine includes a robust cube table measuring 800 x 630 x 500 mm. If you are looking to get high-quality drilling capabilities, consider the M+A RB 63/20 W machine we have for sale. Contact us for further details.
Overview
- brand: M+A
- year: 2014
- MODEL: RB 63/20 W
- application type: Other Machine Tools
- Location: Germany
- machine type: Drilling Machine (Metal)
Technical Information - M+A RB 63/20 W
Dimensions
- Machine Height: 3437 mm
- Machine Length: 3080 mm
- Machine Width: 1250 mm
Movement
- Number of Axes: 3
- X-axis Travel: 1600 mm
Technical Specification
- Spindle Power: 5.5 kW
- Spindle Speed: 1600 RPM
Additional Information
- Maximum drilling diameter in steel (600 MPa): 63 mm
- Maximum drilling diameter in cast iron (250 MPa): 80 mm
- Maximum reach from column: 2000 mm
- Minimum reach from column: 450 mm
- Column diameter: 450 mm
- Minimum distance between spindle nose and baseplate: 400 mm
- Maximum distance between spindle nose and baseplate: 1600 mm
- Spindle inner taper: MT 5
- Maximum spindle stroke: 400 mm
- Vertical adjustment of drill head: 800 mm
- Horizontal adjustment of drill head: 1550 mm
- Baseplate length: 2900 mm
- Baseplate width: 1250 mm
- Baseplate height: 260 mm
- Number of spindle speeds: 16 (hydraulically set)
- Spindle speed range: 20 to 1600 rpm (20, 32, 50, 63, 80, 100, 125, 160, 200, 250, 315, 400, 500, 630, 1000, 1600 rpm)
- Number of spindle feeds: 16
- Spindle feed sizes range: 0.04 to 3.2 mm/rev
- Maximum permissible torque at spindle: 980 Nm
- Main drive motor power: 5.5 kW (1500 rpm)
- Arm elevating motor power: 2.2 kW (1500 rpm)
- Clamping motor power: 0.75 kW (1500 rpm)
- Coolant pump power: 90 W / 0.09 kW (3000 rpm, Flow rate: 25 l/min, Head: 4 m)
- Machine total power: 8.45 kW
- Operating voltage: 400 V / 50 Hz
- Required connection current: 16 A
- Maximum load capacity/weight: Approx. 7000 kg
- Machine overall dimensions: 3080 x 1250 x 3290 mm (Max height up to 3437 mm)
- Noise emission level: ≤ 85 dB (A)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
