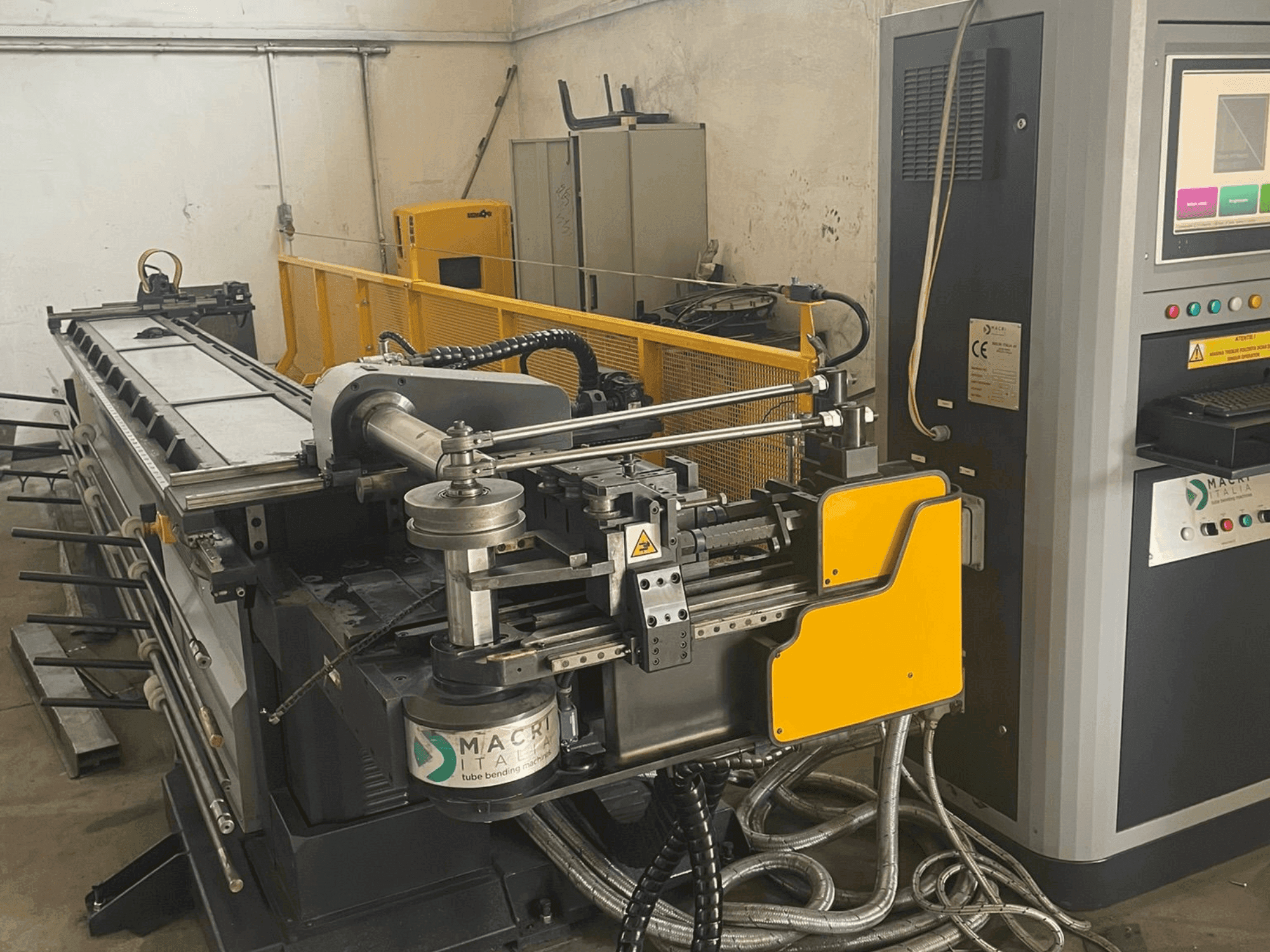

MACRI - PROVAR 6-45 U-DRO-BEN-MAC-2022-00001

• Max diameter (steel 450 n/mm²): ∅ 45x4 mm // max diameter (stainless steel 700 n/mm²): ∅ 40x3 mm // max diameter (steel 450 n/mm²): 40x35x2 mm

• Tube passage in the collet: ∅ 45 mm

• Useful working length with tube passage in the collet: 5100 mm

• Bending angle max: 180+10°

• Speed y axis: 150 °/sec. // speed x axis: 450 mm/sec. // speed z axis: 360 °/sec.

• Precision y axis: +/-0. 1° // precision x axis: +/-0. 1 mm // precision z axis: +/-0. 1°

• Bending: clockwise

• Total installed power: 15 kw

• Voltage and frequency: 400 volt / 50 hz

Machine still under power

Square tube sizes: 12x12, 20x20

• Round tube diameters: 12, 16, 20, 22, 27, 33.7

• Notes:

  • Square 12x12 can also be used for round diameter 12

  • Square 20x20 can also be used for round diameter 20
