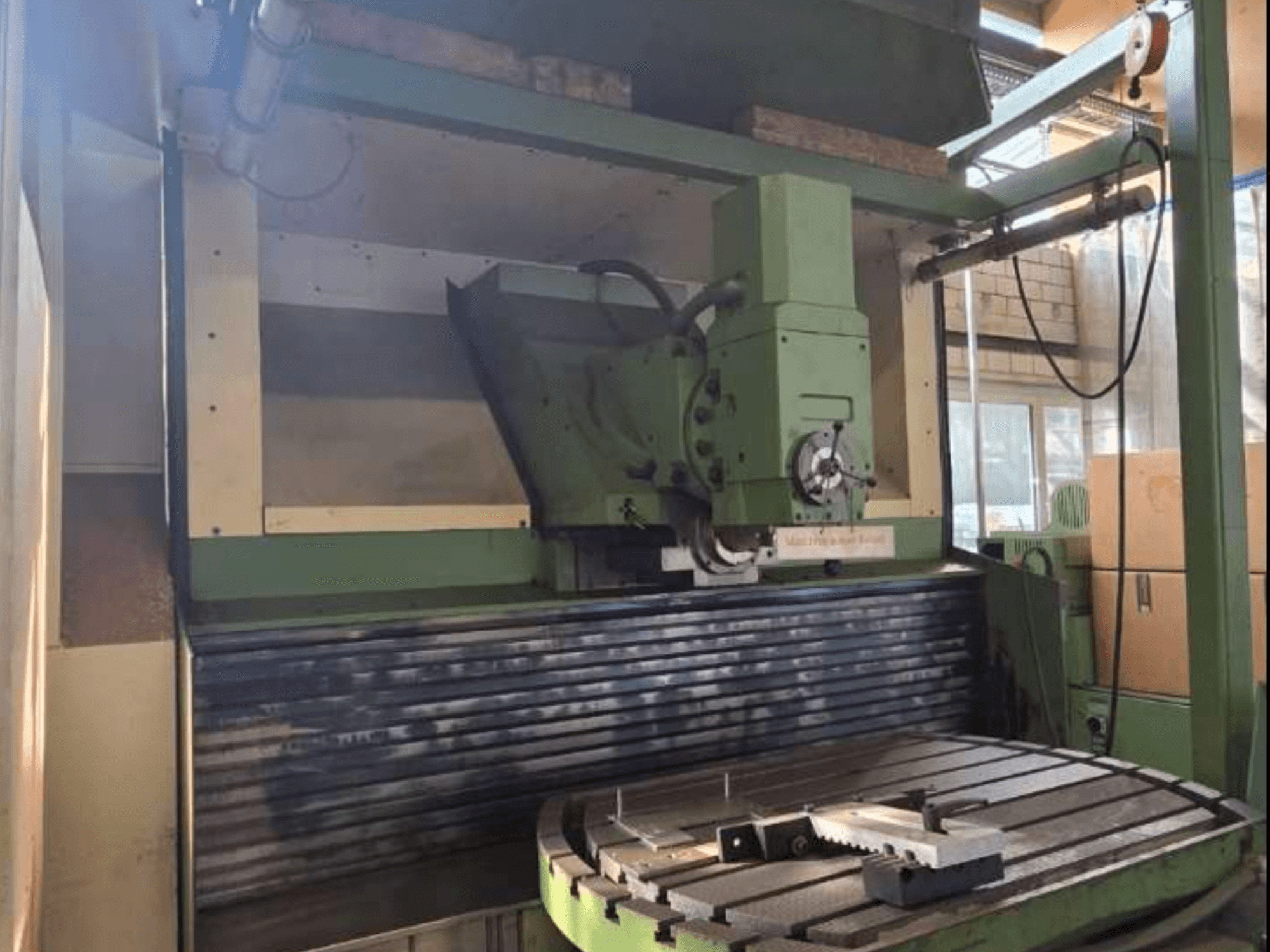

MAHO - MH 1000 C/ADE-MIL-MAH-1985-00001

Tool interface ISO 50
Quill stroke vertical spindle mm 100
Spindle speed range rpm 20–4000
Spindle speed override % 80–120
Feed rate X Y Z mm/min 1–4000
Feed force X Z N 8000
Feed force Y N 24000
Rapid traverse m/min 10
Feed and rapid override % 0–140
Table diameter mm 1250
Table length mm 800
Center bore mm 42 H7
T-slots 7
T-slot spacing mm 100
Manual cross adjustment mm 275
Table indexing ratio 1:120
Table rotation per handwheel turn deg 3
Table rotation per division deg 2
Positioning resolution deg 0.001
Increment per division mm 0.026
Table swivel X-axis deg ±30
Table swivel Y-axis deg ±30
Table rotation deg 360
Table clamping pressure bar 80
Max table load kg 800
Table weight kg 1100
Voltage V 220/380
Frequency Hz 50
Total connected load kVA 36
Total load with coolant kVA 41
Total load with coolant and tool changer kVA 46
Positioning resolution mm 0.001
Machine hours approx h 29192
Condition currently idle not in operation
Documentation manuals available
Protective doors partially disassembled included
Included accessories none tool holders not included
Table axis one axis manual only not referenceable error present
