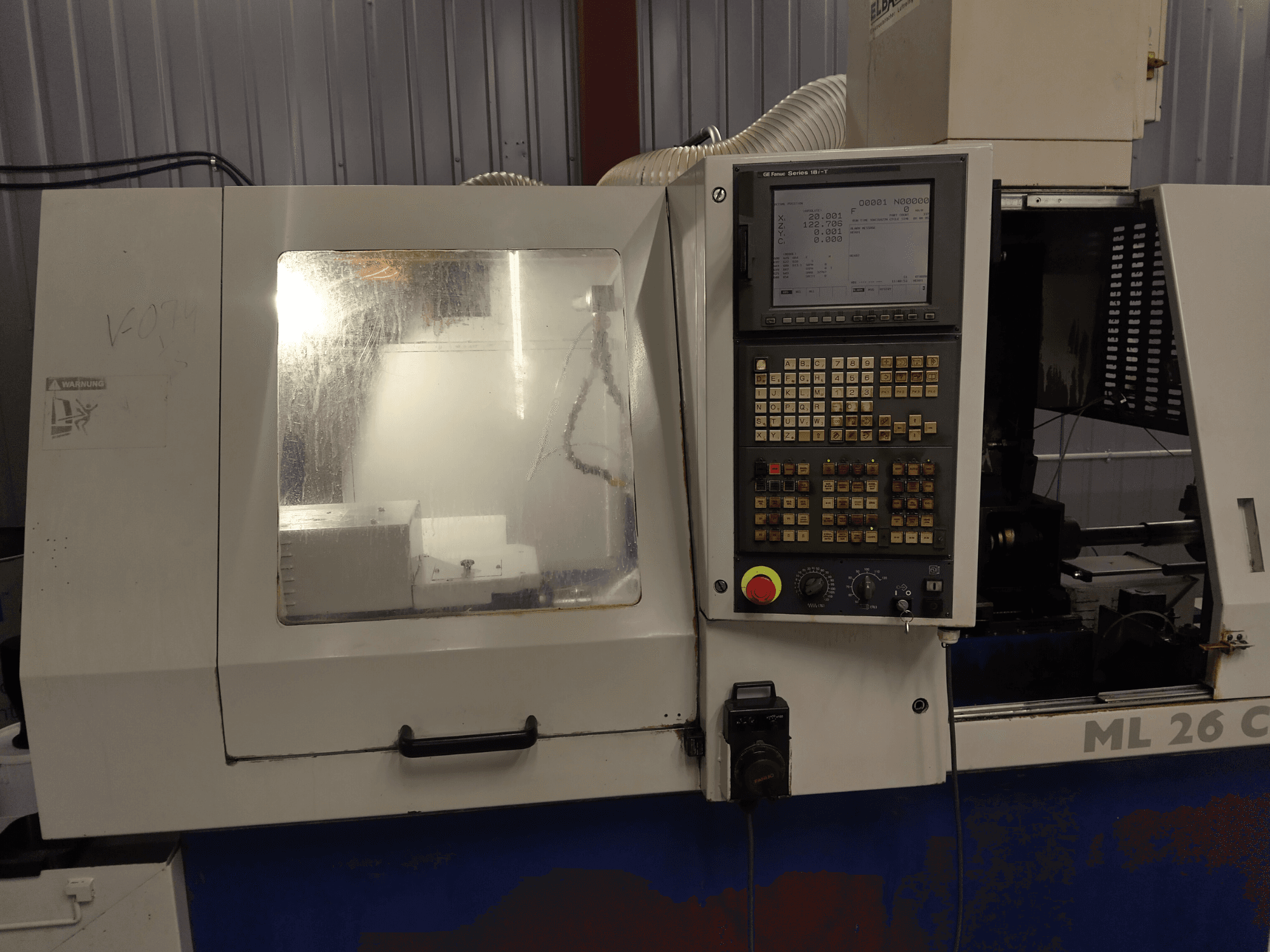

Maier - ML 26 C1FI-TUR-MAI-2000-00001

• Axis Head 1:

  • Axes: X, Y, Z, C

  • Z1 axis travel: 210 mm

  • Main spindle collet: 161E

  • Guide bushing: T227

  • Tooling: 5 turning tools (16 mm), 3 axial drilling/boring tools, 3 ER16 live tools (up to 8000 rpm)

• Axis Head 2:

  • Axes: X, Z, C

  • Sub-spindle speed: up to 8000 rpm

  • Sub-spindle collet: 161E

  • Back-working: 4 tools (currently set up with 1 turning tool and 3 ER16 live tools), plus 1 ER16 live tool axial with the sub-spindle

• Maintenance (2025–2026):

  • Replaced all pneumatic lines with new, durable lines

  • Replaced position sensors in main spindle mechanical lock

  • Replaced position sensors in sub-spindle mechanical lock

  • Replaced position sensors in sub-spindle work ejector

  • Mechanical realignment and measurement of main spindle, guide bushing, and sub-spindle

  • Realigned sub-spindle frame assembly and sub-spindle back-working tools

  • Replaced all spindle bearings in sub-spindle assembly

  • Replaced spindle bearings in sub-spindle axial milling tool

  • Refurbished live milling tools on sub-spindle side

Additional equipment

• Bar feeder: Iemca Boss 322r-E, model year 2007, 17 mm guide channels
