Makino V33i A15F

Photo Gallery

Makino - V33i A15FIT-MIL-MAK-2010-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

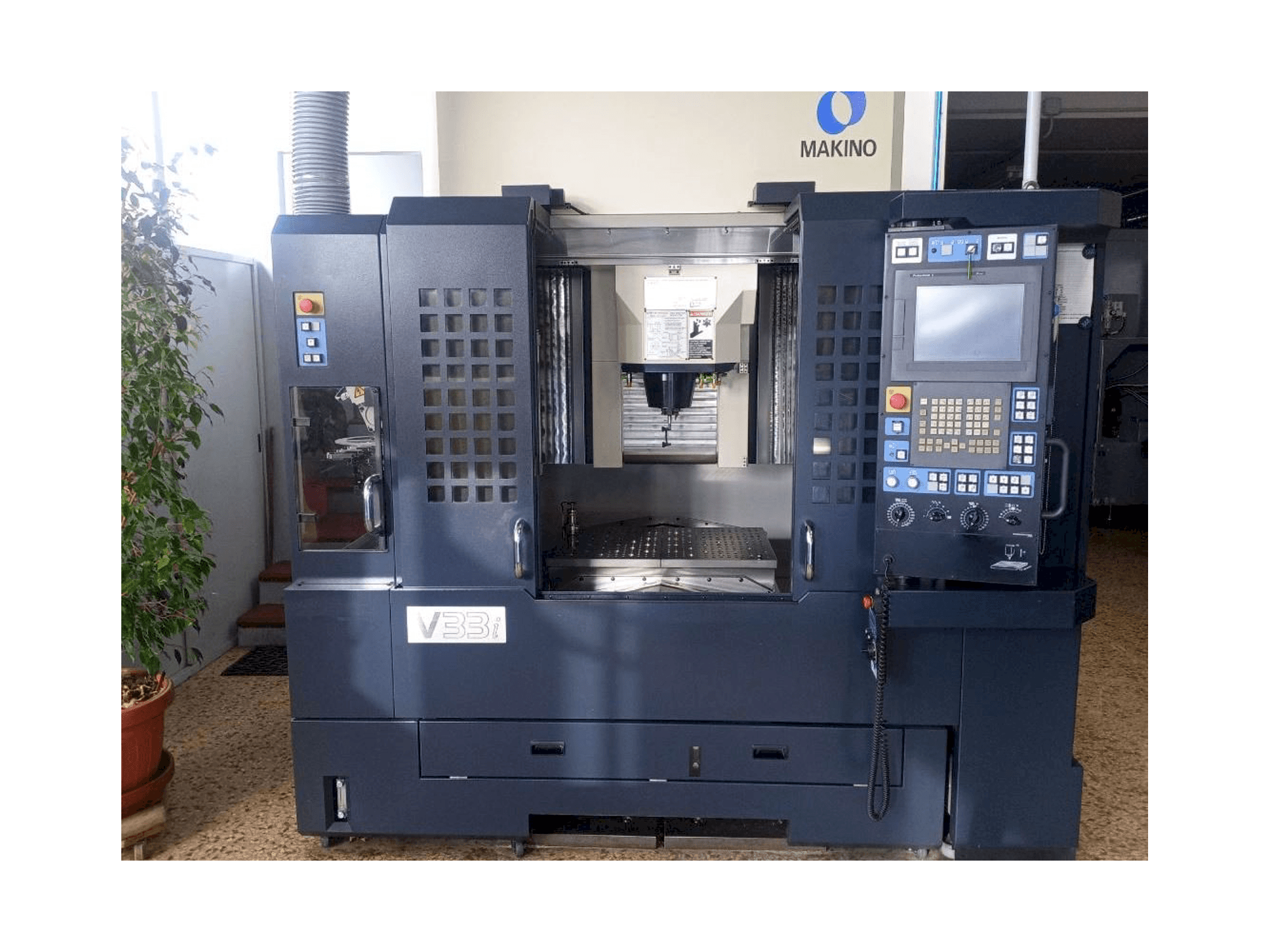

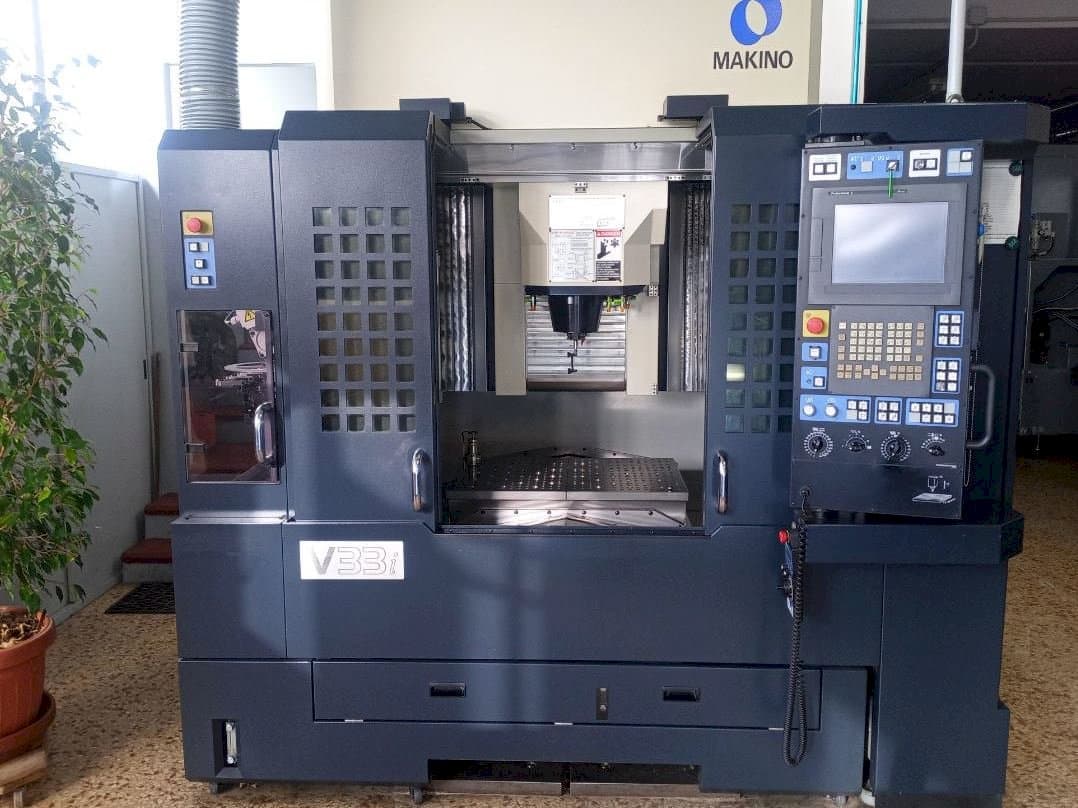

Makino V33i A15F Vertical Machining Center

Show in original language

This Makino V33i A15F Vertical Machining Center was made in the year 2010 and has 9000 production hours. It is equipped with a PROFESSIONAL 5 micro computer integrated into Fanuc 16iMB CNC control unit and has 3 axis. The machine has a spindle speed of 20000 rpm and includes Multi-fixation hardened tables M10 / Ø20 H7 – pitch 25 / 100.0mm, a tool presetting and M&H piece measurement probe, and a NAKANISHI electro spindle 50,000 rpm ASK-63.

Overview

brand: Makino
year: 2010
MODEL: V33i A15F
production hours: 9000
application type: Milling
Location: Italy
machine type: Vertical Machining Centre

Technical Information - Makino V33i A15F

Dimensions

Table Length: 750 mm
Table Width: 450 mm

Movement

Number of Axes: 3
X-axis Travel: 650 mm
Y-axis Travel: 450 mm
Z-axis Travel: 350 mm

Technical Specification

Spindle Speed: 20000 RPM

Additional Information

Additional equipment

Multi-fixation hardened tables M10 / Ø20 H7 – pitch 25 / 100.0 mm
Tool presetting and M&H piece measurement probe
NAKANISHI electrospindle 50,000 rpm ASK-63

Machine Benefits

Qualitative Machine Benefits

Perfect, exceptional condition
Entire makino documentation and ce certification

Technical Machine Benefits

Refrigeration: external / oil mist
Tool magazine: lateral ask-63 x 15 places
Ethernet network setup

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
