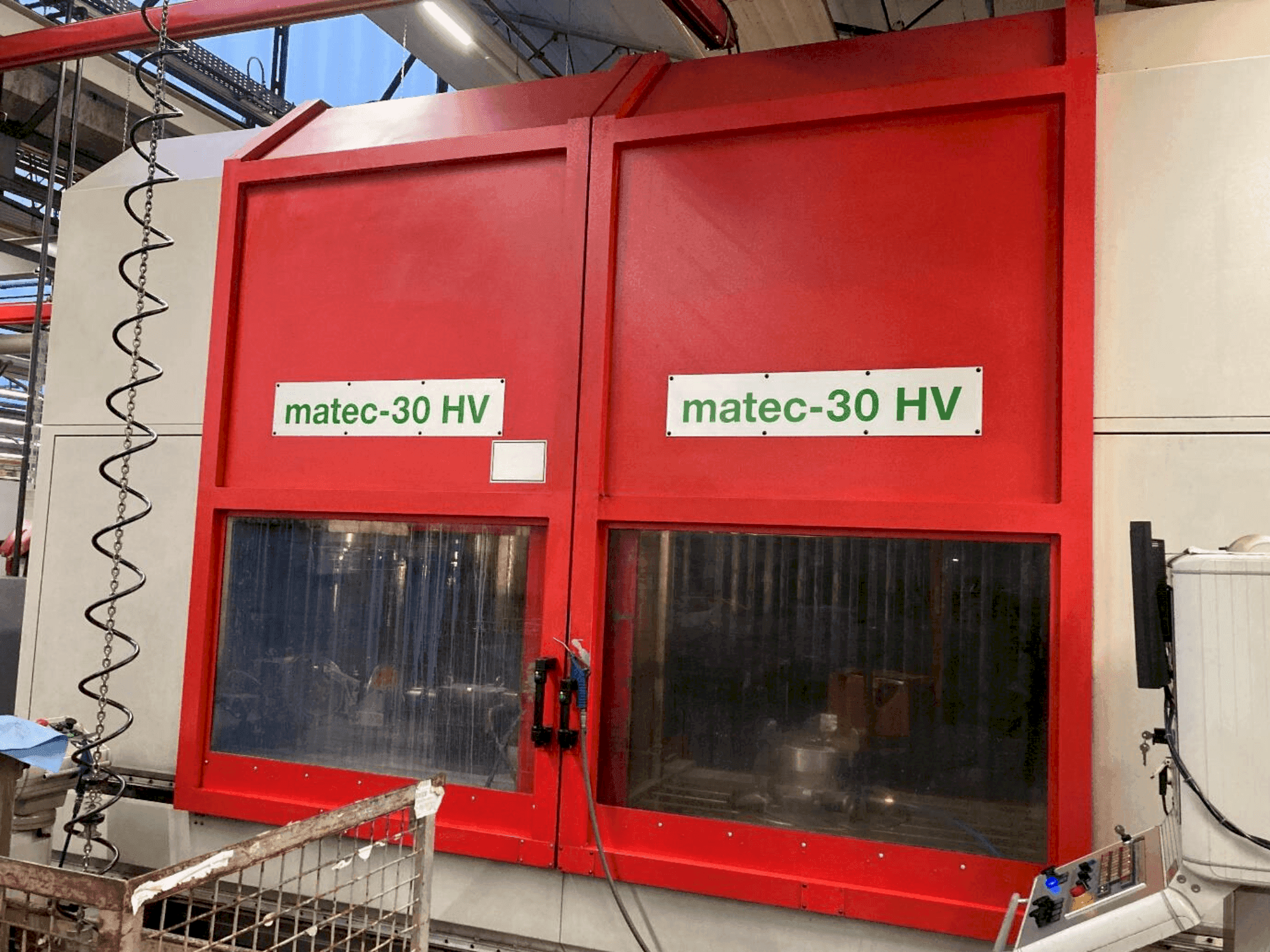

Front view of Matec 30 HV  machine

Matec 30 HV

Matec - 30 HV

2003

47,000 €

gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This MATEC 30 HV (2003) Universal Machining Centre was manufactured in 2003 in Germany. It is controlled by a BOSCH TYPE 3 OSA Control unit. This CNC traveling column milling machine (3+2 axes) is equipped with a main spindle type DMS 112 with speed range up to max. 12,000 min/-1 and drive power 30 kW. It has a NC swivel head (Sauter) with swiveling +/- 90 ° and graduation +/- 3 arc seconds. In addition it runs with a tool changer with 48 positions and a HSK A63 tool holder. The table is a NC rotary table with a clamping surface of 3,500 x 835 mm and 7 T-slots. IKZ 70 bar, paper belt filter and chip conveyor (ejection height 1200mm) and 3D radio measuring probe come with the machine. The machine is prepared with a 4th axis interface. The condition of the machine is very good - it is still in production and maintenance service has been applied regularly according to manufacturer's standards. An on-site inspection is possible at any time.

Overview

  • brand: Matec
  • year: 2003
  • MODEL: 30 HV
  • application type: Milling
  • Location: Germany
  • machine type: Machining centers (universal)
  • availability: August 2024
  • control unit brand: BOSCH
  • GINDUMAC ID: DE-MIL-MAT-2003-00001

Technical Information

General Data

  • Measurements width: 7000 mm
  • Measurements depth: 6000 mm
  • Measurements height: 4000 mm
  • Machine weight: 15000 kg

Control Unit

  • Brand: BOSCH
  • Model: TYPE 3 OSA

Main drive

  • Spindle speed range: 12,000 min/-1 1/MIN
  • Spindle motor power: 30 kW
  • Number of axis: 3+2

Movement

  • X-AXIS Movement: 3000 mm
  • X-AXIS Rapid traverse: 30 m/min
  • Y-AXIS Movement: 800 mm
  • Y-AXIS Rapid traverse: 30 m/min
  • Z-AXIS Movement: 1100 mm
  • Z-AXIS Rapid traverse: 30 m/min

Tools

  • Type of tool holder: HSK 63 A

Media

  • Chip conveyor: Yes
  • Internal cooling: Yes

    Additional Equipment

    • - Coolant system: Internal coolant supply 70 bar // Cooling unit for switch cabinet
    • - Paper belt filter Flushing gun
    • - Chip conveyor: Ejection height 1200mm
    • - 3D radio measuring probe
    • - Direct measuring systems x-y-z

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Main spindle: type dms 112 // max. Torque 190 nm // drilling capacity steel approx. 60 mm // milling capacity approx. 500 cm³ // thread cutting m30
        • - Feed rates: rapid traverse (x / y / z) 30 m/min // feed speed 30,000 mm/min
        • - Nc swivel head: sauter swiveling +/- 90 ° // pitch +/- 3 arc seconds
        • - Work table: table clamping surface 3,500 x 835 mm // t-slots 7x // t-slots - width 18-h7 // nc rotary table sempuco skh 4/630 // horizontal faceplate // faceplate diameter 630mm // embedded in the machine table
        • - Tool changer: number of tool positions 48 pos.
        • - Total connected load: 60kva
        • - Fully enclosed work area
        • - Loading doors suitable for crane loading // automatic opening // movable partition wall
        • - Clamping hydraulics interface 4th axis // nc rotary table rw/nc 160/250 (hofmann)
        • - Face plate diameter 250mm // center height 160mm // hydraulic tailstock with quill mk4
      • Qualitative Machine Benefits:
        • - Machine still under production and can be inspected at any time
        • - The machine has been serviced every year by the service department and is technically in good condition

      Extra information

      • - Full documentation included // Declaration of conformity // Replacement screen installed

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
