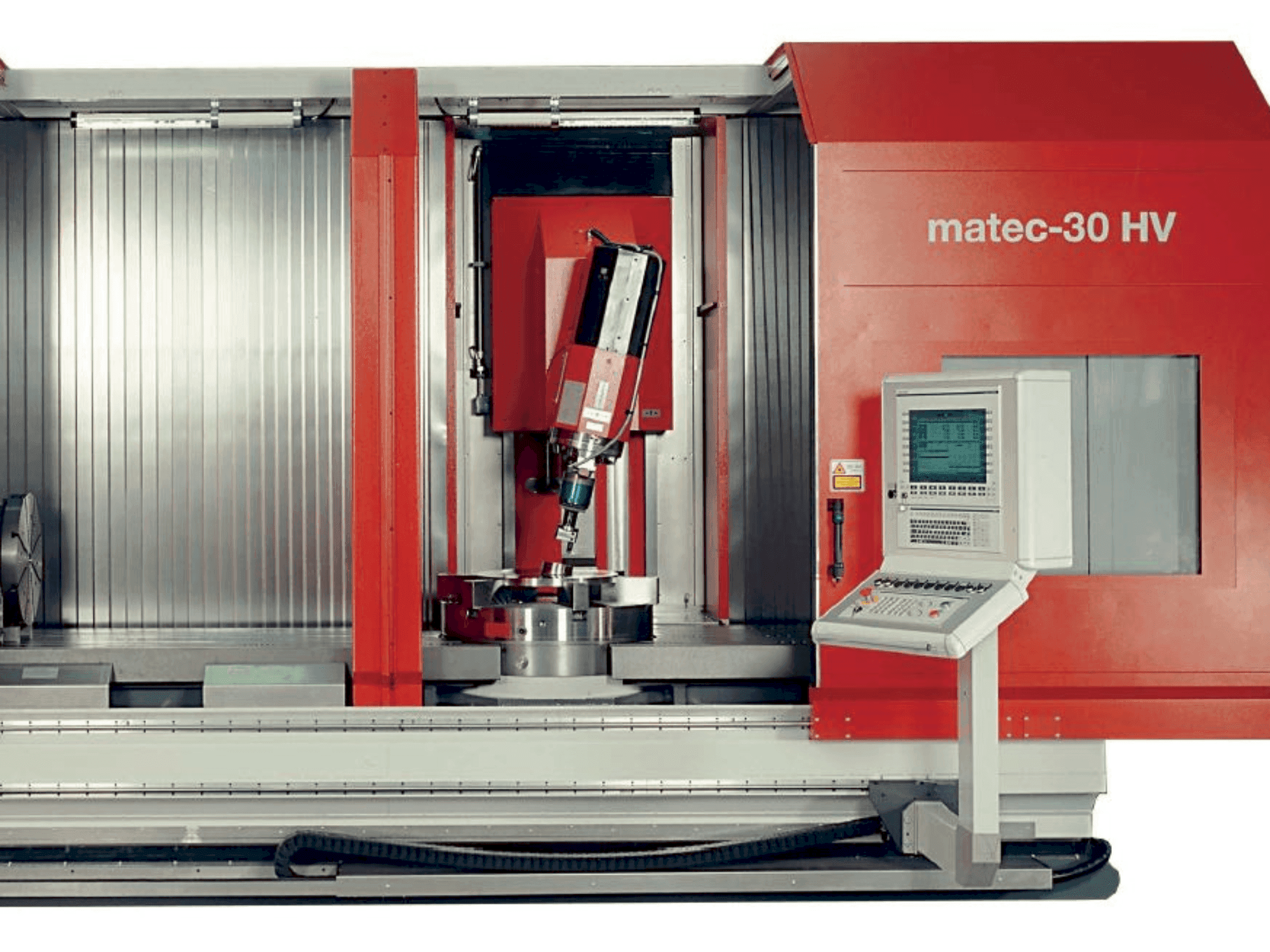

Matec 30 HV

Photo Gallery

Matec - 30 HVSI-MIL-MAT-2012-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Matec 30 HV For Sale | gindumac.com

Show in original language

This 5-axis Matec 30 HV vertical machining center was manufactured in 2012. It features a large working area with X-axis at 4000 mm, Y-axis at 1000 mm, and Z-axis at 1100 mm. Equipped with a Rexroth IndraMotion MTX control system, SK40 tool holder, and a speed range up to 9000 rpm. Includes a 36-position tool magazine, full workspace enclosure, and chip conveyor. If you are looking to get high-quality milling capabilities consider the Matec 30 HV machine we have for sale. Contact us for more information.

Overview

brand: Matec
year: 2012
MODEL: 30 HV
application type: Milling
Location: Slovenia
machine type: Vertical Machining Centre
control unit brand: BOSCH

Technical Information - Matec 30 HV

Control Unit

Brand: BOSCH
Model: IndraMotion MTX

Main drive

Spindle speed range: 20 to 9000 1/MIN
Spindle motor power: 11 kW
Number of axis: 5

Movement

X-AXIS Movement: 4000 mm
Y-AXIS Movement: 1000 mm

Tools

Number of stations: 36
Type of tool holder: SK40

Media

Chip conveyor: Yes

Additional Information

Additional equipment

Full workspace enclosure with top cover
Harmonic protection with steel lamellas
Direct path measuring system for X, Y, and Z axes
Chip conveyor
Coolant spray gun
Central oil lubrication system
Four-point workspace lighting
Hydraulic clamping system
Clamping Pressure: Max pressure 240 bar
Oil Tank: 100 liters, including oil cooler

Machine Benefits

Technical Machine Benefits

Z-axis horizontal: 1100 mm z-axis vertical: 1000 mm
Maximum milling load: 1200 kg (central load)
Special motor spindle: variable bearing preload
Max drilling and milling speed: 12000 rpm
Sliding unit mounted on b-axis for main spindle

Extra Information

Partitions for system with two workstations Automatic safety doors Adapter plate 1000 mm, load capacity up to 2.5 tons Compressed air for external nozzles controlled via M-function in program Table 2 CNC rotary tables 630/25 with direct drive Max Rotation Speed: 25 rpm Planar Table Diameter: 630 mm Drive Power: 2.88 kW at 40% ED, 1.57 kW at 100% ED Torque: 1100 Nm at 40% ED, 600 Nm at 100% ED Tangential Torque with Clamp: 3000 Nm Tools Tool Holder: SK40 36 Tool Positions Max Tool Change Time: 10 seconds Tool System: 6-position moving tool magazine Tool Breakage Control: Laser measuring device

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
