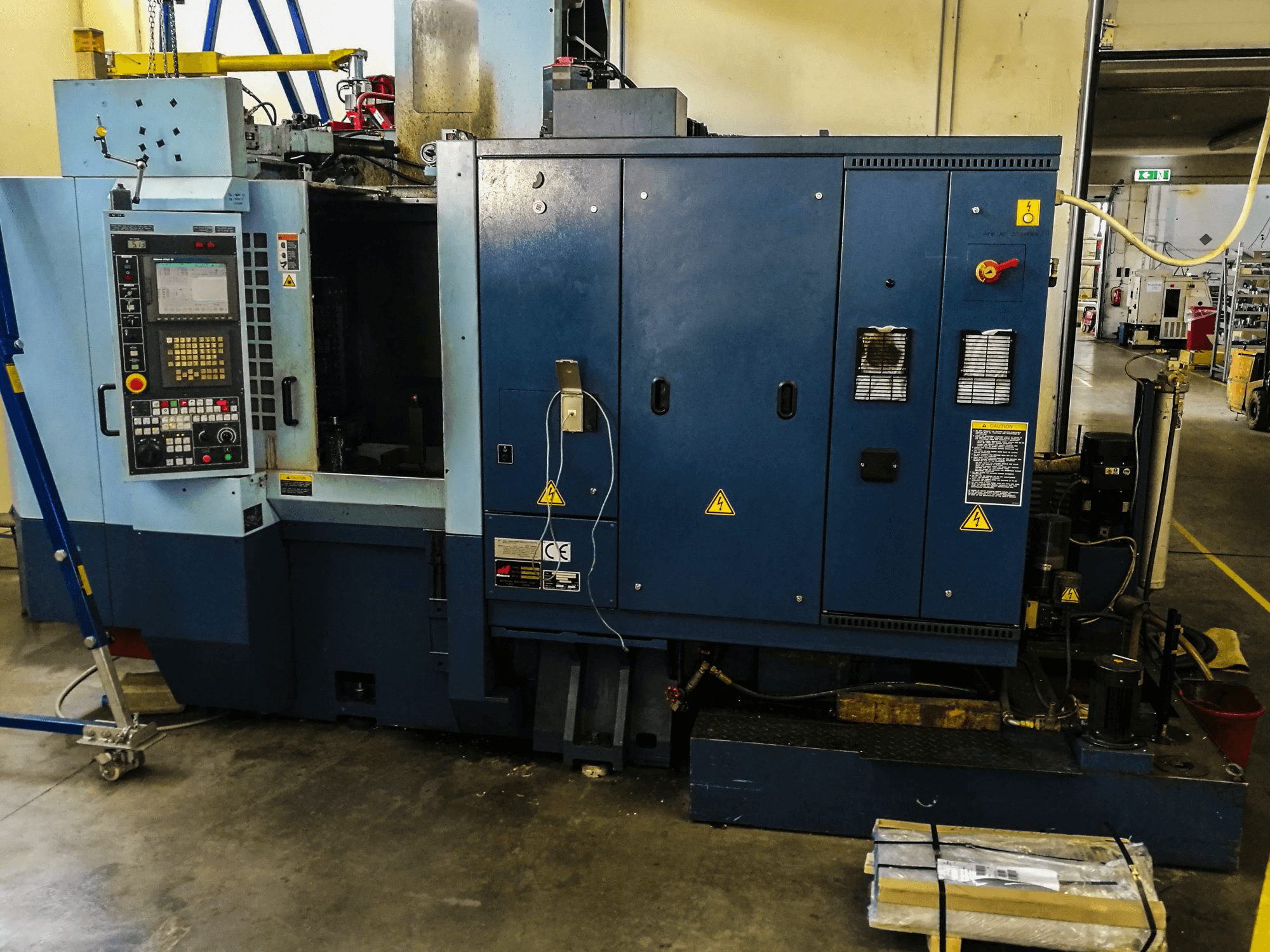

Matsuura H.PLUS-300 Horizontal Machining Center

Show in original language

This Matsuura H.PLUS-300 Horizontal Machining Center was manufactured in the year 2004 in Japan and has a production record of 7114 working hours. Operated through a Matsuura G-Tech 16i Control unit, this model allows a spindle speed up to 15.000 1/min. Additionally, also a chip conveyer is included.

Overview

brand: Matsuura
year: 2004
MODEL: H.PLUS-300
production hours: 7114
application type: Milling
Location: Estonia
machine type: Machining centers (horizontal)
availability: Sold
control unit brand: Matsuura
GINDUMAC ID: EE-MIL-MAT-2004-00001

Technical Information

General Data

Measurements width: 4240 mm
Measurements depth: 1522 mm
Measurements height: 2462 mm
Machine weight: 7000 kg

Control Unit

Brand: Matsuura
Model: G-Tech 16i

Main drive

Number of spindles: 1
Spindle speed range: 15000 1/min

Movement

X-AXIS Movement: 500 mm
Y-AXIS Movement: 560 mm
Z-AXIS Movement: 500 mm

Workpiece

Workpiece x: 500 mm
Workpiece y: 500 mm
Workpiece z: 500 mm
Workpiece weight: 250 kg

Table

Outer length: 300 mm
Outer width: 300 mm

Tools

Max tool diameter: 70 mm

Media

Main electronic connection: 415 V / 50 Hz
Power consumption: 38 kVA
Chip conveyor: Yes

Additional Equipment

- 2x Cubes
- Workpiece holders (Upon request)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
