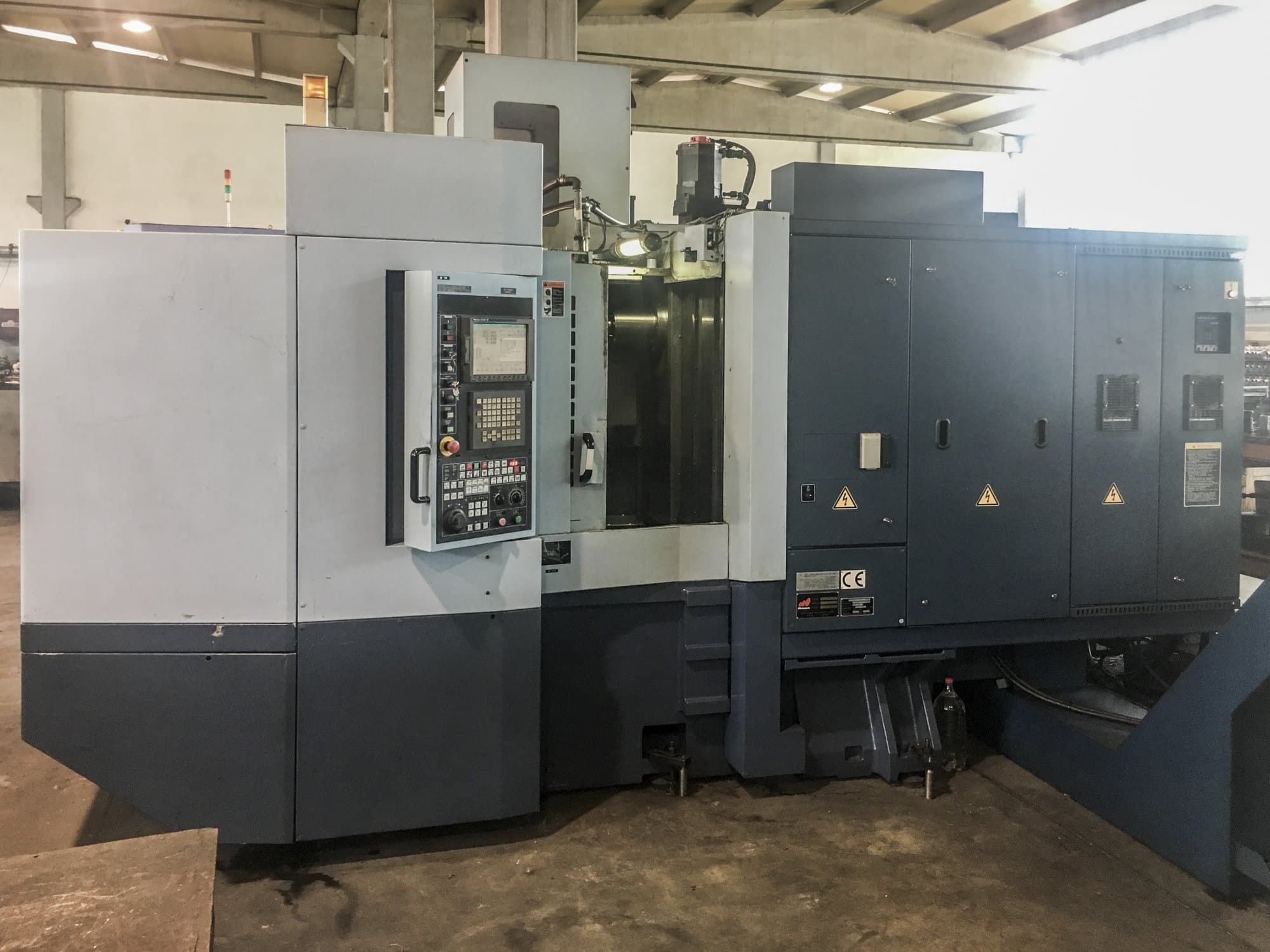

Front view of Matsuura H.PLUS-405 Machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Matsuura H.PLUS-405

Photo Gallery

Matsuura - H.PLUS-405TR-MIL-MAT-2003-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Matsuura H.PLUS-405 Machining Center

Show in original language

This 2003 Matsuura H.PLUS-405 Machining Center from Japan has been operative for 14990 production hours and is equipped with a FANUC G-Tech 16i Control unit. This model with full 4-axis indexing has mainly worked with steel workpieces, producing pump components for the automotive industry of heavy weight vehicles. An additional chip conveyor is included in the delivery.

Overview

brand: Matsuura
year: 2003
MODEL: H.PLUS-405
production hours: 14990
application type: Milling
Location: Turkey
machine type: Horizontal Machining Centre
control unit brand: FANUC

Technical Information - Matsuura H.PLUS-405

General Data

Measurements width: 6740 mm
Measurements depth: 2792 mm

Control Unit

Model: G-Tech 16i
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 12000 1/min
Spindle motor power: 30 hp

Movement

X-AXIS Movement: 600 mm
Y-AXIS Movement: 600 mm
Z-AXIS Movement: 600 mm

Table

Outer length: 500 mm
Outer width: 500 mm
Min distance between vertical spindle and table: 80 mm
Max distance between vertical spindle and table: 680 mm

Media

Main electronic connection: 415 V / 50 Hz
Power consumption: 51 kVA
Chip conveyor: Yes
Internal cooling: Yes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
