Matsuura - LV-500 HU-MIL-MAT-2017-00001

106,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

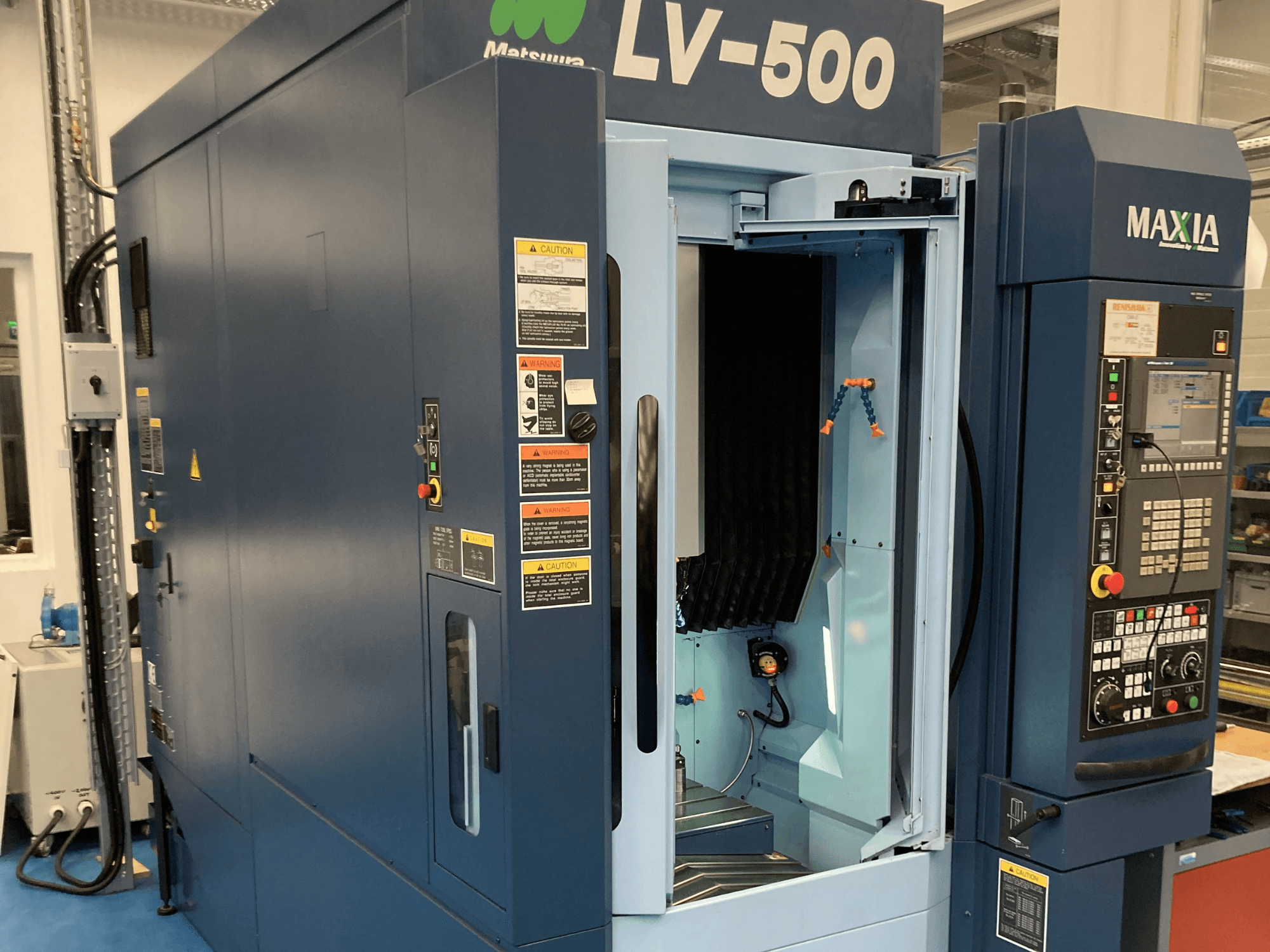

This 3-axis Matsuura LV-500 was manufactured in 2017. It features a maximum spindle speed of 46,000 rpm and a robust table size of 540 x 350 mm with a maximum table load of 100 kg. The machine is equipped with a tool magazine capacity of 10 tools and rapid traverse rates of 90 m/min. If you are looking to get high-quality machining capabilities, consider the Matsuura LV-500 vertical machining center we have for sale. Contact us for further details.

Overview

  • brand: Matsuura
  • year: 2017
  • MODEL: LV-500
  • application type: Milling
  • Location: Hungary
  • machine type: Vertical Machining Centre

Technical Information - Matsuura LV-500

Dimensions

  • Machine Height: 2648 mm
  • Machine Length: 2700 mm
  • Machine Weight: 5500 kg
  • Machine Width: 5500 mm
  • Table Load: 100 kg

Movement

  • Number of Axes: 3
  • X-axis Travel: 500 mm
  • Y-axis Travel: 350 mm
  • Z-axis Travel: 300 mm

Technical Specification

  • Max. Tool Weight: 1.5 kg
  • Tool Stations: 10
  • Spindle Power: 15 kW
  • Spindle Speed: 46000 RPM
  • Taper Size: BT 30

Additional Information

  • Control: L-Tech 30iB

  • Table:

    • Size: 540 × 350 mm

    • T-slots: 18 mm (3 slots)

    • Distance table to spindle nose: 150 – 450 mm

  • Spindle:

    • Taper: BT30 BIG-PLUS

    • Motor: 7.5 / 15 kW

    • Max torque: 8.86 Nm @ 15,000 rpm

    • Direct drive

  • Feed rates:

    • Rapid traverse (X/Y/Z): 90 / 90 / 90 m/min

    • Cutting feed: 35,000 mm/min

    • Minimum increment: 0.0001 mm

  • ATC (Automatic Tool Changer):

    • Tool taper: BT30

    • Max tool diameter: 46 mm

    • Max tool length: 150 mm

    • Tool-to-tool time: 2.2 s

    • Chip-to-chip time: 5.2 s

  • Accuracy:

    • Positioning accuracy: ±0.001 mm

    • Repeatability: ±0.0005 mm

  • Power requirements:

    • Power supply: AC 200/220V ±10%

    • Required power: 35 kVA

    • Frequency: 50/60 Hz

    • Air pressure: 0.54 – 0.93 MPa

    • Air consumption: 430 NL/min

  • Tank capacities:

    • Coolant: 320 L

    • Oil cooler: 9.5 L

    • Oil: 1.8 L

    • Hydraulic: 25 L

  • Standard equipment:

    • Spindle oil cooler

    • Coolant unit

    • Chip flush

    • Linear motor cooler

    • Scale feedback

    • Air dryer

    • Synchronized tapping

    • Work light

    • Automatic grease lubrication

    • MIMS system (Matsuura Intelligent Meister System)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
