Matsuura - MX-520ES-MIL-MAT-2017-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- Matsuura MX-520

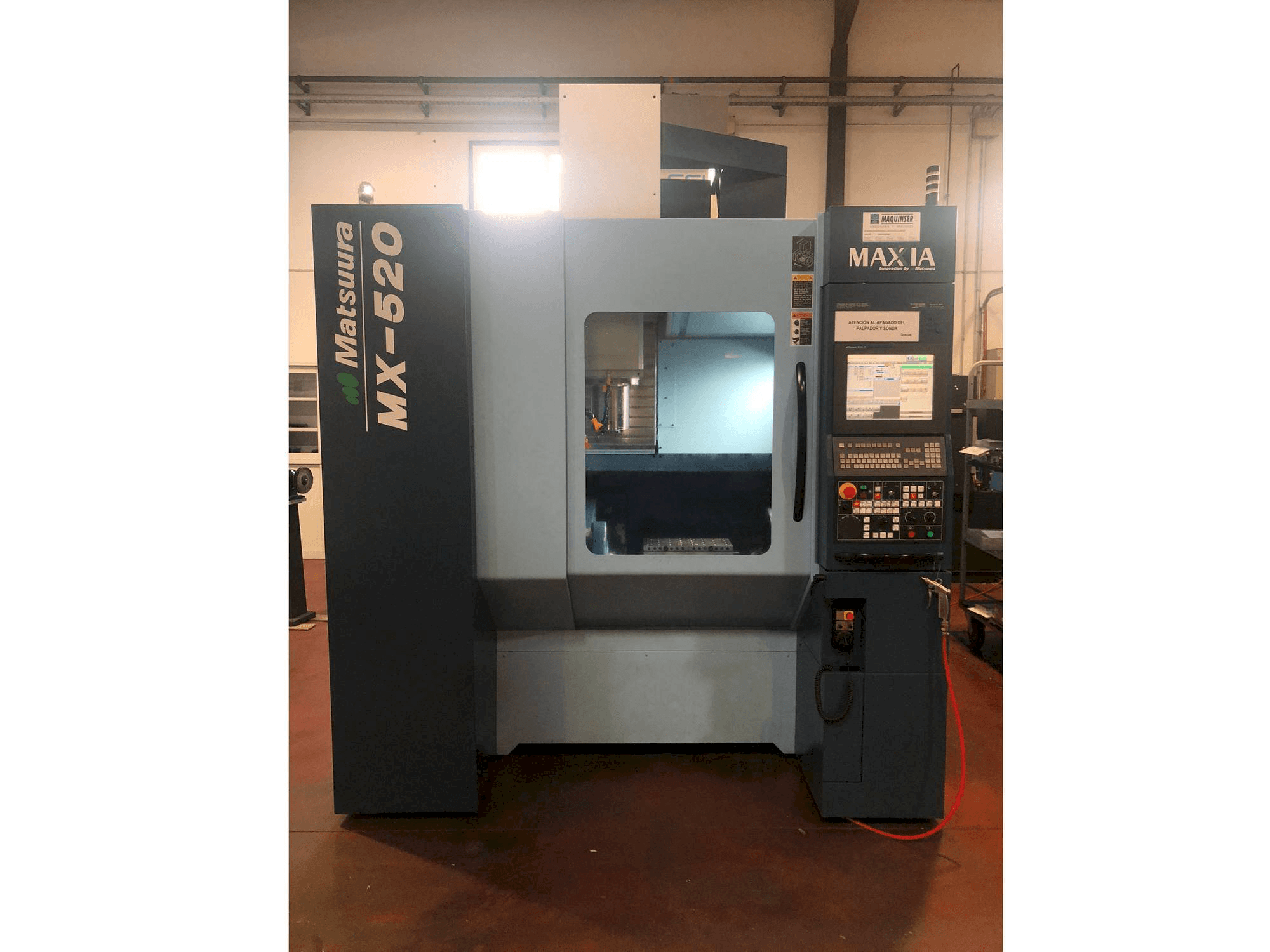

This Matsuura MX-520 Vertical Machining Center was built in the year 2017. It has a production history of only 4525 working hours. This 5 axis machine is equipped with a Matsuura G-Tech 31i control unit. It can work with a spindle speed up to 12000 rpm. This machine includes several options as 8 sets of extra M function and 3 colour patrol lights R,Y,G. It is in a very good status.
Overview
- brand: Matsuura
- year: 2017
- MODEL: MX-520
- production hours: 4525
- application type: Milling
- Location: Spain
- machine type: Universal Machining Centre
- control unit brand: MATSUURA
Technical Information - Matsuura MX-520
Control Unit
- Control Brand: MATSUURA
- Control Model: G-Tech 31i
Dimensions
- Machine Weight: 8850 kg
Movement
- Number of Axes: 5
- X-axis Travel: 630 mm
- Y-axis Travel: 560 mm
- Z-axis Travel: 510 mm
Technical Specification
- Max. Tool Weight: 10 kg
- Number of Tools: 60
- Spindle Speed: 12000 RPM
Additional Information
Additional equipment
- Signal high speed skip.
- 8 sets of extra M function.
- 3 colour patrol light R,Y,G
- Inner worm type puller
- Movable manual pulse generator
- X,Y,Z OPTICAL RULERS
- EZ-5 5-axis re-levelling gauge, including ball
- Part measuring probe and BLUM mechanical tool gauge.
- Raised rear chip extractor
- Transformer / Lang table not included
Machine Benefits
Qualitative Machine Benefits
- Very good status
- Little working hours
Technical Machine Benefits
- Spindle power increased torque motor 12. 000 rpm 167 nm
- Table diam. 500 mm
- Blowing to piece
- Spindle load monitoring function
- Data server 1gb
- Drill through tool 20 bar
- Preparation for installation of fume extraction system.
- Cnc fanuc g-tech equipped with iz1-30 nf operated through: aicc ii intelligent machining contour control; optimal torque acceleration / deceleration.
- Tcpc tool centre point control (5-axis cutting) g43. 4/g49; inclined plane work command g53. 1/g68. 2/g69; work preparation error compensation g54. 4
- Tool position control by tool centre control; compensation of 3 d cutting g41. 2/g42. 2/g41. 3; feed time reversal g93
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
