MAVIJET - MJT-W53D- 4020PL-CUT-MAV-2020-00001

Name: MAVIJET MJT-W53D- 4020
Brand: MAVIJET
SKU: PL-CUT-MAV-2020-00001
Price: 80000 EUR
Availability: InStock

80,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ Used MAVIJET MJT-W53D- 4020 For Sale | gindumac.com

Show in original language

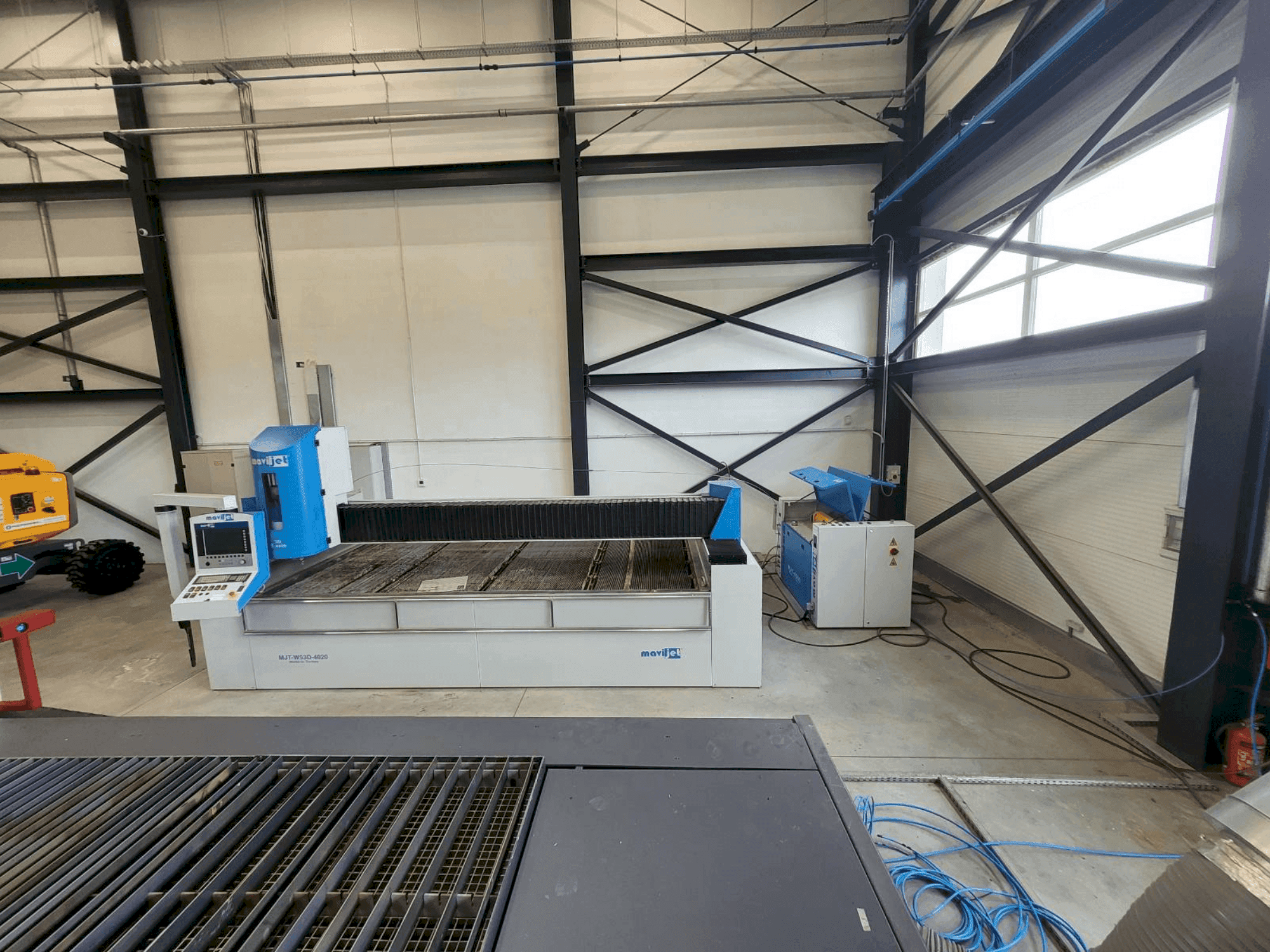

This 5-axis MAVIJET MJT-W53D-4020 was manufactured in 2020, featuring a CNC 5-axis, bridge type design for precision waterjet cutting. It includes a high-pressure pump operating at 4000 bar and a rapid traverse speed of 30000 mm/min. The machine supports a cutting size of 4000 × 2000 × 250 mm and is equipped with a smart abrasive reserve tank. If you are looking to get high-quality cutting capabilities, consider the MAVIJET MJT-W53D-4020 machine we have for sale. Contact us for more information.

Overview

brand: MAVIJET
year: 2020
MODEL: MJT-W53D- 4020
production hours: 57
application type: Cutting
Location: Poland
machine type: Waterjet Cutting Machine

Technical Information - MAVIJET MJT-W53D- 4020

Movement

Number of Axes: 5

Additional Information

Additional equipment

Smart Abrasive Reserve Tank Included
Tank Capacity: 350 kg
Tank Pressure: 6 bar
Sand Dosing System: Adjustable via CNC (flow 50–1000 g/min)

Machine Benefits

Technical Machine Benefits

Axes: 5-axis waterjet cutting machine
Cutting size: 4000 × 2000 × 250 mm
Type: cnc 5-axis, bridge type
Step accuracy: 0. 01 mm
Controller: esa 5-axis controller with ethernet, usb, and manual handwheel (x/y/z)
Cam program: semi-automatic nesting / automatic input-output system
Rapid traverse speed: 30000 mm/min

Extra Information

Condition: Very good technical condition, low number of working hours Movement Axis Motors: X-axis: 1 × 3.2 Nm servo motor Y-axis: 2 × 3.2 Nm servo motors Z-axis: 1 × 1.6 Nm servo motor with brake A-axis: 1 × 1 Nm servo motor with brake C-axis: 1 × 1 Nm servo motor with brake Transmission System: Helical hardened racks and pinions Linear Bearing: THK linear slides and rails Injection Unit High Pressure Pump: MJT-4000 Operating Pressure: 4000 bar constant (24h non-stop) Motor: 50 HP / 37 kW, 1500 rpm, 50/60 Hz High Pressure Flow Rate: 2.3–3 L/min Pressure Adjustment: 1000–4000 bar in 500 bar steps Orifice Diameters: 0.18 / 0.25 / 0.30 / 0.35 mm Hydraulic Pump: 71 cm³ (103 L), axial piston pump max. 200 bar Cooling Water Flow: 30 L/min Optimum Water Inflow: 4 bar Adjustable Pressure Water Pump: 10–16 bar

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
