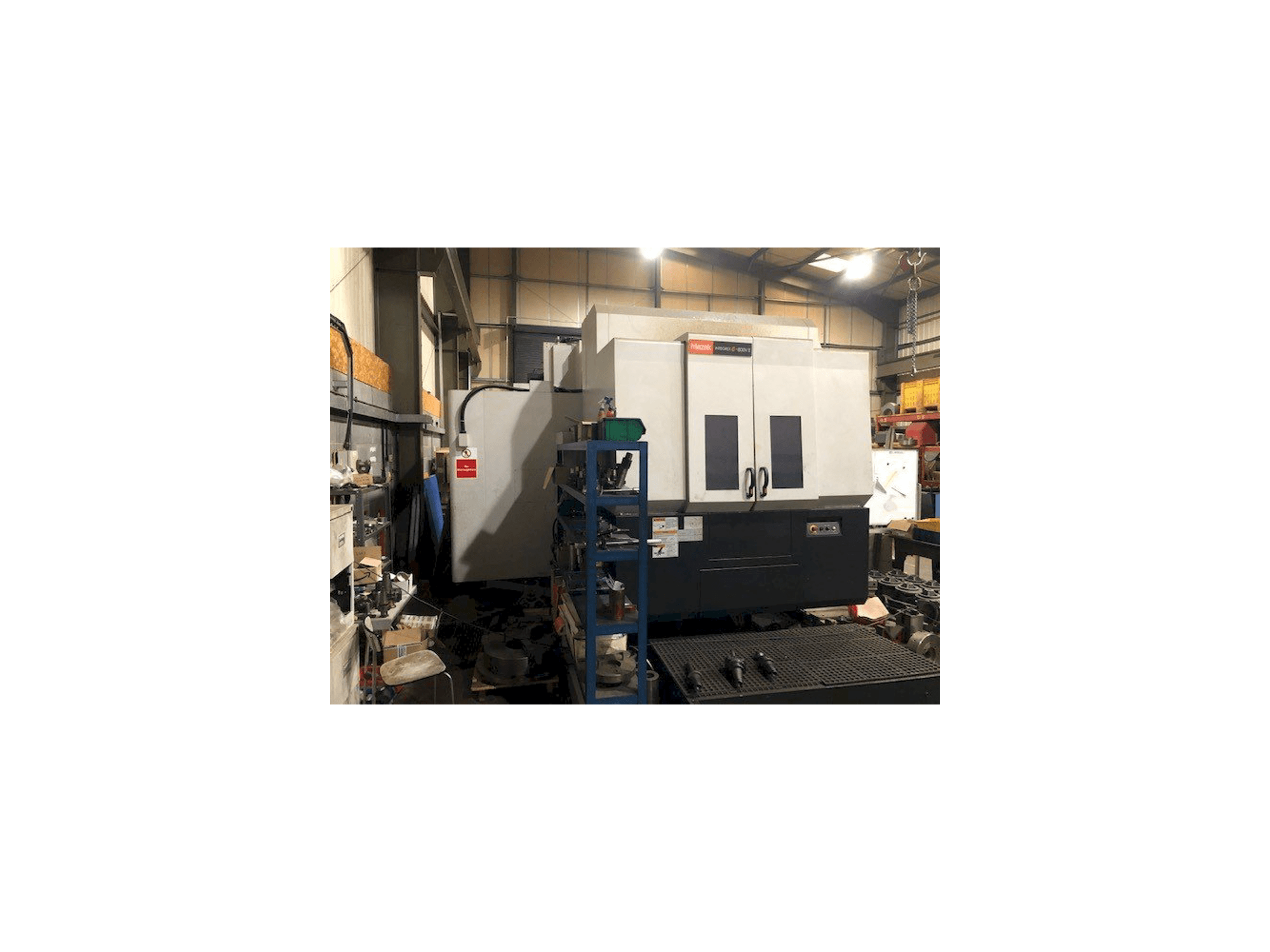

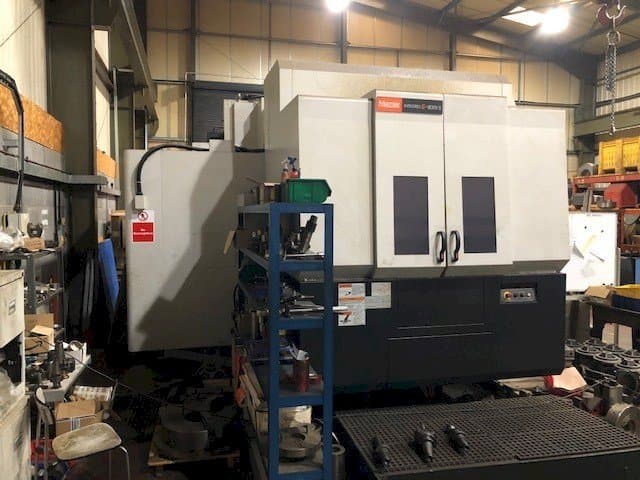

Front view of Mazak Integrex 800V/5 II E machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Mazak Integrex 800V/5 II E

Photo Gallery

Mazak - Integrex 800V/5 II EGB-MIL-MAZ-2008-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Mazak Integrex 800V/5 II E Horizontal Machining Center

Show in original language

This Mazak Integrex 800V/5 II E Horizontal Machining Center was manufactured in the year 2008 in Japan. It counts with 16088 hours, of which 4573 are cutting time. It is equipped with MAZATROL MATRIX control unit. This 5 axis machine can work with a spindle speed up tp 12000 rpm. It presents very good conditions.

Overview

brand: Mazak
year: 2008
MODEL: Integrex 800V/5 II E
production hours: 16088
application type: Milling
Location: United Kingdom
machine type: Universal Machining Centre
availability: Sold
control unit brand: MAZATROL

Technical Information - Mazak Integrex 800V/5 II E

General Data

Machine weight: 23000 kg

Control Unit

Model: MATRIX
Brand: MAZATROL

Main drive

Number of spindles: 1
Spindle speed range: 12000 1/MIN
Number of axis: 5

Movement

X-AXIS Movement: 1100 mm
Y-AXIS Movement: 800 mm
Z-AXIS Movement: 900 mm

Workpiece

Workpiece weight: 680 kg

Tools

Slots in storage: 80
Max weight: 12 kg
Max tool diameter: 95/150 mm
Max tool length: 400 mm
Type of tool holder: Capto C6

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Cutting diameter 730mm
- - No. Of pallets 2, 10 seconds change time
- - Max. Turning speed 10. 000 rpm
- - Spindle motor power 18. 5 kw
- - A axis +120/30 degrees
- - B axis 0. 001 degree
- - Through spindle coolant
- - Tool setter
- - 3-jaw chuck, 4-jaw chuck
- - 5-axis
Qualitative Machine Benefits:
- - Very good condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
