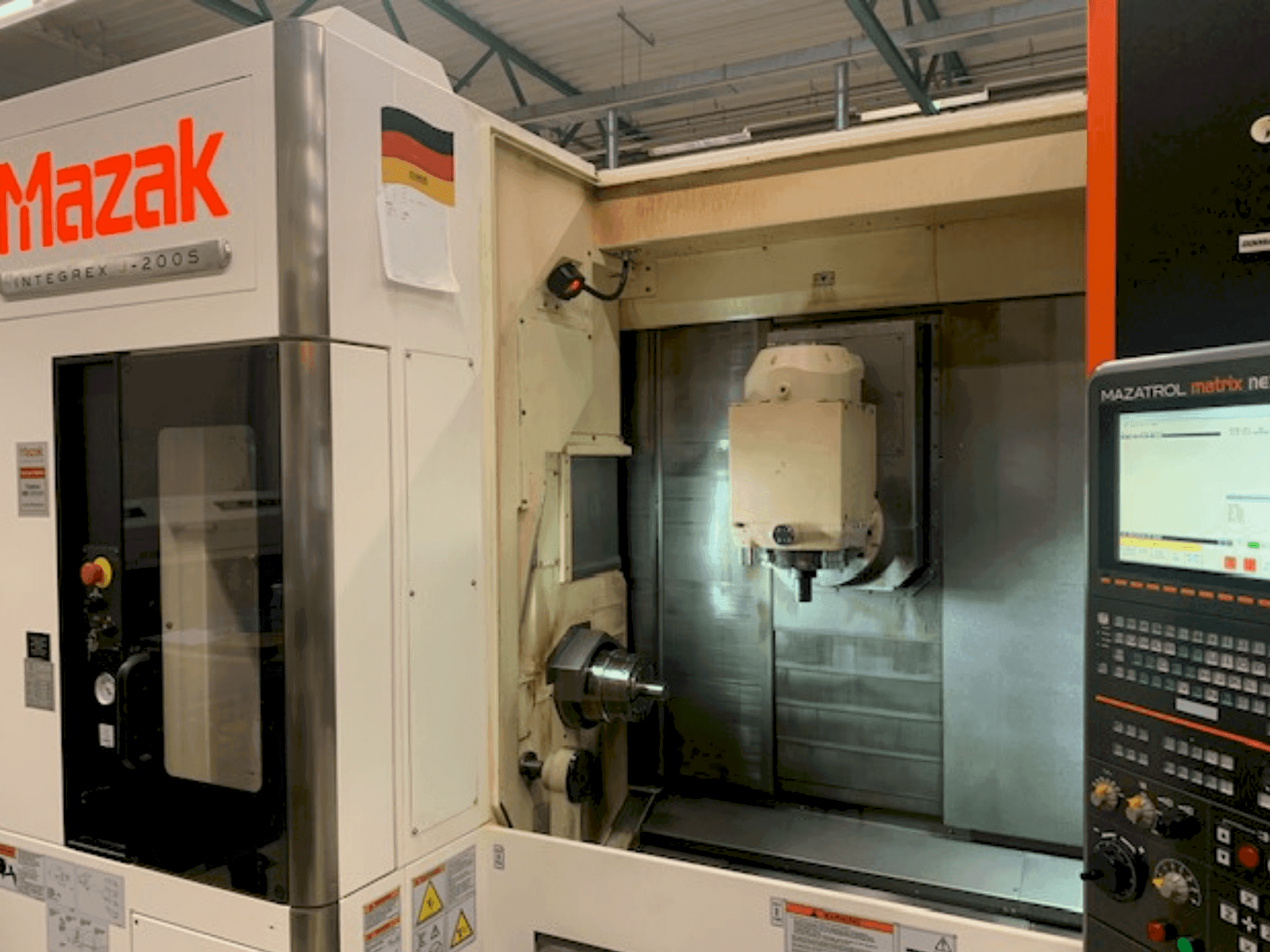

Front view of Mazak INTEGREX J-200 S machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Mazak INTEGREX J-200 S

Photo Gallery

Mazak - INTEGREX J-200 SDE-TUR-MAZ-2016-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
MAZAK INTEGREX J-200 S Lathe

Show in original language

This MAZAK INTEGREX J-200 S Lathe was manufactured in the year 2016 in Japan. It is equipped with a Mazatrol Matrix Nexus 2 control unit and has 6 axis. The machine has a spindle speed of 12000 rpm. See original purchase confirmation for more technical details as PDF (German) attached.

Overview

brand: Mazak
year: 2016
MODEL: INTEGREX J-200 S
application type: Turning
Location: Germany
machine type: Turn-Mill Centre
control unit brand: MAZATROL

Technical Information - Mazak INTEGREX J-200 S

Control Unit

Model: Matrix NeXUS 2
Brand: MAZATROL

Main drive

Spindle speed range: 12000 1/MIN
Number of axis: 6

Movement

X-AXIS Movement: 450 mm
Y-AXIS Movement: 200 mm
Z-AXIS Movement: 1119 mm
W-Axis Movement: 1436 mm
B-AXIS Movement: -30° to 220°

Tools

Slots in storage: 20
Max weight: 5 kg
Max tool diameter: 125 mm
Max tool length: 210mm

Additional Information

Additional equipment

Tool magazine for 36 Capto tools (no tool holders included)
Preparation for bar feed
Automatic parts catcher (D:65 X L: 120 X2.5Kg) incl. ejector
High pressure cooling 15 bar incl. simultaneous flood cooling 5 bar
Preparation for chip conveyor
Ejection side
Preparation for Mazak Monitoring System B OMP60 (optical)

Machine Benefits

Qualitative Machine Benefits

Acceleration and deceleration? 3,7 s
Spindle nose a2-6"
Spindle bore 76 mm
Counter spindle max. Speed 5,000 min-'
[min. Speed single spindle with atc
Milling spindle single spindle with atc
Type of turret hsk63a
Tool holder feed rate 0,5 s
Max. Milling spindle speed 12,000 min
Rapid traverse x-axis 40,000 mm/min, rapid traverse z-axis 40,000 mm/min, rapid traverse y-axis 40,000 mm/min

Technical Machine Benefits

Irco bar feeder type ils-muk-7012
3d volume model
Application technology at the customer's site, duration: 1 day
Cylinder+ polar interpolation (eia)
Synchronized thread cutting on the milling spindle
Working area max. Swing diameter 530 mm
Swing diameter over cross slide 530 mm
Max. Face diameter 500 mm
Max. Turning length' 910 mm
Min. Speed 35 min-1

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
