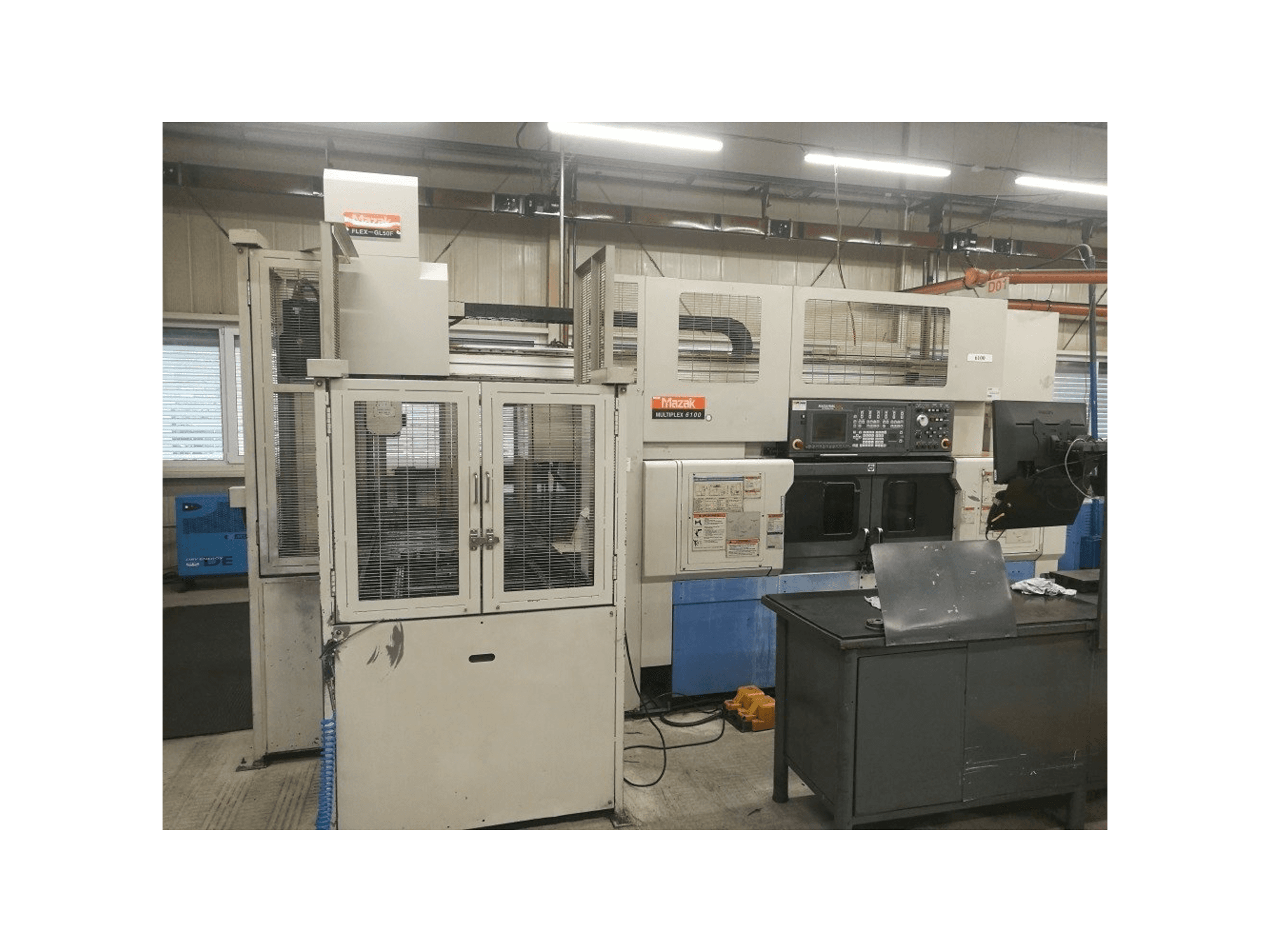

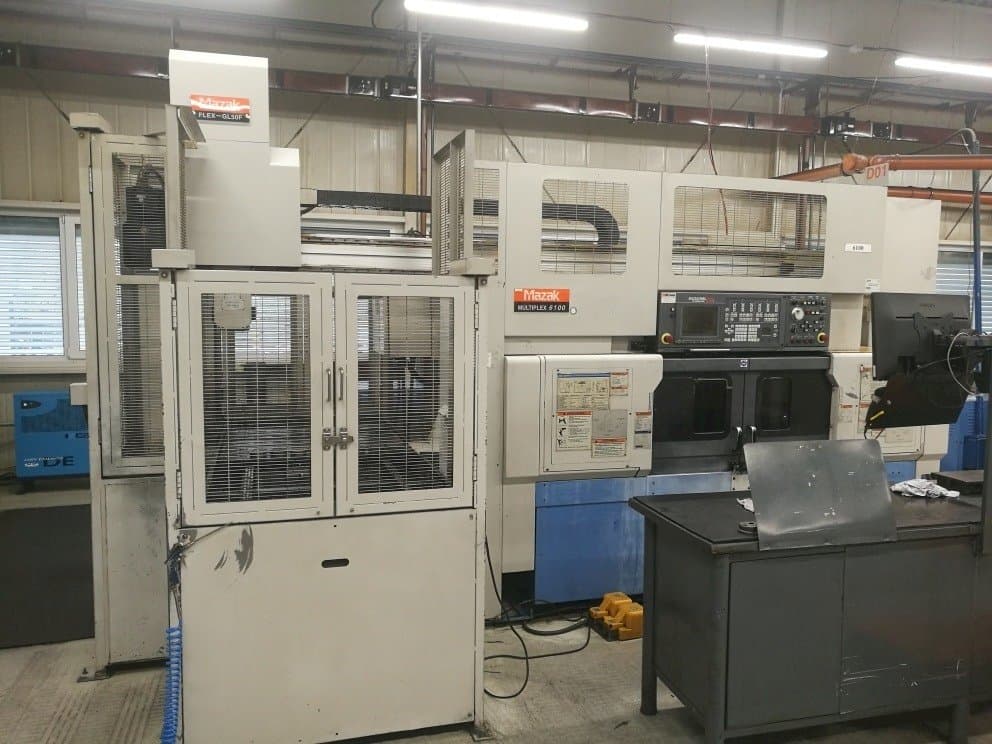

Front view of Mazak Multiplex 6100 + robot FLEX-GL50F  machine

Mazak - Multiplex 6100 + robot FLEX-GL50FCZ-TUR-MAZ-2001-00005

27,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This MAZAK Multiplex 6100 + robot FLEX-GL50F Lathe was manufactured in the year 2001 in Japan. It is equipped with a Mazak Mazatrol 640T control unit and has 3 axis. The machine has a spindle speed of 6000 rpm, is in good condition and well maintained.

Overview

  • brand: Mazak
  • year: 2001
  • MODEL: Multiplex 6100 + robot FLEX-GL50F
  • application type: Turning
  • Location: Czech Republic
  • machine type: Turn-Mill Centre
  • availability: Immediately
  • control unit brand: MAZATROL

Technical Information - Mazak Multiplex 6100 + robot FLEX-GL50F

General Data

  • Measurements width: 3000 mm
  • Measurements depth: 1650 mm
  • Measurements height: 2090 mm
  • Machine weight: 6400 kg

Control Unit

  • Model: Mazatrol 640T
  • Brand: MAZATROL

Main drive

  • Number of spindles: 2
  • Spindle speed range: 6000 1/MIN
  • Number of axis: 3

Movement

  • X-AXIS Movement: 200 mm
  • Z-AXIS Movement: 365/420 mm

Turret

  • Number of turrets: 2

Tools

  • Slots in storage: 12

    Additional Equipment

    • - Mazak Flex GL-50F portal robot (2001)
    • - Tool holders incl. driven holders

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Maximum cutting diameter 230 mm
        • - Distance between spindles 1030 mm
        • - Maximum cutting length 700 mm
        • - Spindle through hole 61 mm
        • - Max. Bar diameter 51 mm
        • - Spindle motor power (cont. /25%) 7. 5/11 kw
        • - Rapid feedrates x/z/y 30/33 m/min
        • - C axis on both spindles
        • - Max. Milling tool speed 4500 rpm, power 3. 7 kw
      • Qualitative Machine Benefits:
        • - Good condition
        • - Regularly serviced and maintained

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
