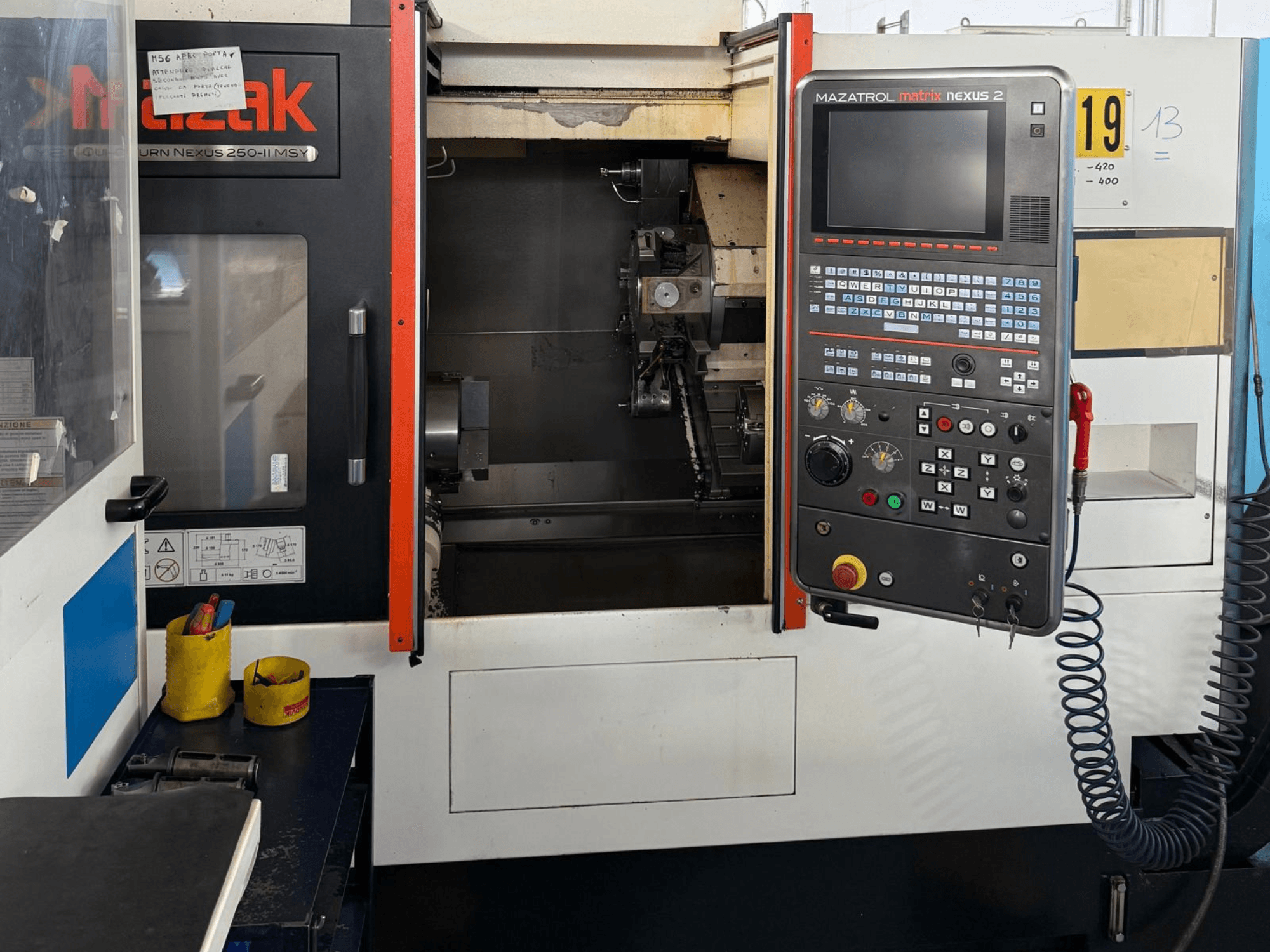

Mazak - QTN 250 II MSY IT-TUR-MAZ-2015-00004

-Information

• CNC control: MAZATROL MATRIX NEXUS 2 / MATRIX II

• Working capacity:

  • Maximum swing diameter: 640 mm

  • Maximum machining diameter: 380 mm

  • Maximum machining length: 500 mm

  • Bar capacity: 77 mm

• Axis travel:

  • C-axis rapid movement: 550 (as stated)

  • Tailstock travel: 500 mm (as stated)

• Main spindle:

  • Chuck diameter: 250 mm

  • Nose: ASA 8

• Counter spindle:

  • Chuck diameter: 210 mm

  • Maximum speed: 5,000 rpm

  • Nose: ASA 5

• Driven tools:

  • Maximum speed: 5,000 rpm

• Feed rates:

  • X-axis rapid traverse: 36,000 mm/min

  • Z-axis rapid traverse: 36,000 mm/min

• Coolant tank capacity: 300 litres

Additional equipment

• Automatic loading and unloading system by MECCANO

• FANUC ARC Mate 100iC/12 robot (per photos)

• Tooling package as shown in the photographs and video

• Assorted tool holders as shown in the photographs
