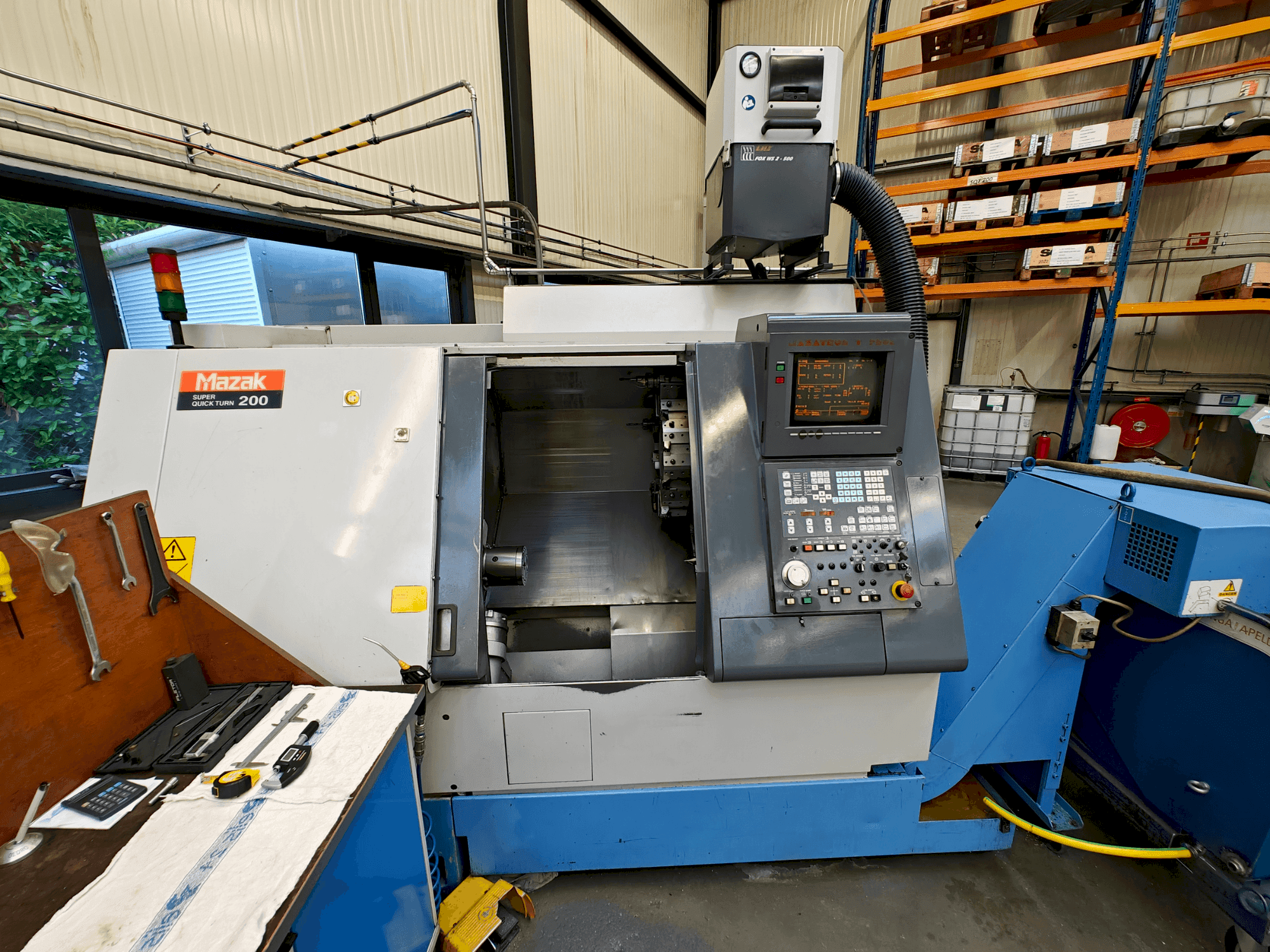

Front view of Mazak SQT-200  machine

Mazak - SQT-200NL-TUR-MAZ-1997-00001

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Mazak SQT-200 Lathe was manufactured in the year 1997. It is equipped with a Mazatrol T PLUS control unit. The machine has a Lathe chuck kitagawa 8” + 10” and disposes of a Mayfran chip conveyor.

Overview

  • brand: Mazak
  • year: 1997
  • MODEL: SQT-200
  • application type: Turning
  • Location: Netherlands
  • machine type: Horizontal Turning Machine
  • availability: Sold
  • control unit brand: MAZATROL

Technical Information - Mazak SQT-200

General Data

  • Measurements width: 1696 mm
  • Measurements depth: 2200 mm
  • Measurements height: 1900 mm
  • Machine weight: 5590 kg

Control Unit

  • Brand: MAZATROL
  • Model: T PLUS

Main drive

  • Number of spindles: 1
  • Spindle speed range: 5000 rpm 1/MIN
  • Number of axis: 3

Movement

  • X-AXIS Movement: 190 MM
  • Z-AXIS Movement: 535 MM

Media

  • Chip conveyor: Yes
  • Cooling pressure: 5 bar

    Additional Equipment

    • - Number of synchronous axes: 2 pieces // Number of positions: 12 pieces

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Mayfran chip conveyor
        • - Lathe chuck kitagawa 8” + 10”
        • - Max turning diameter: 300mm
        • - Center length: 500mm
        • - Collet holder with collets (at extra cost)
        • - Maximum turning diameter: 350 mm
        • - Turning diameter above bed (max): 525 mm // turning diameter over cross slide (max): 300 mm
        • - Maximum turning length: 530 mm
        • - Continuous motor power: 11kw (15kw, at 40% duty cycle)

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
