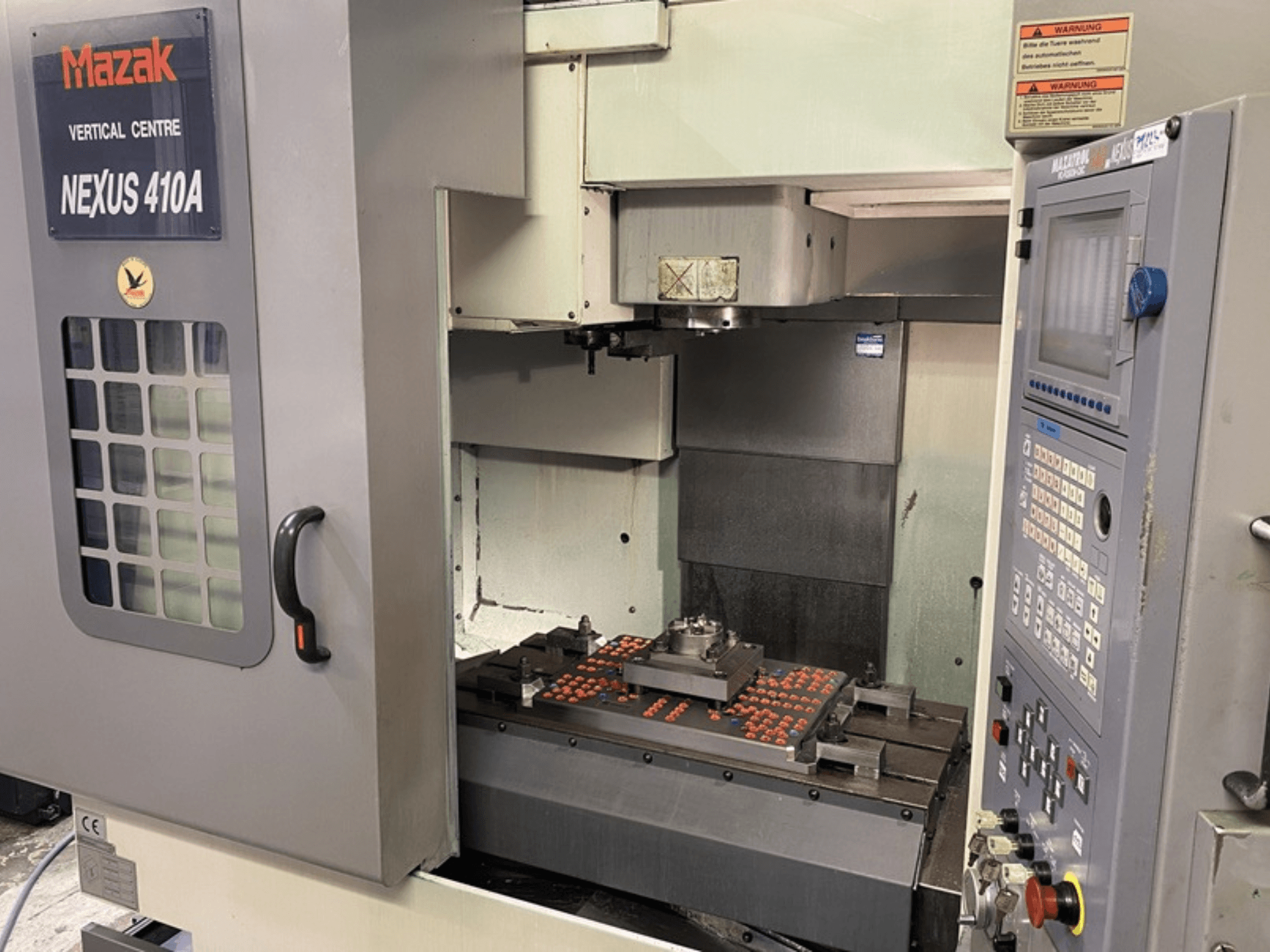

This 3-axis Mazak VCN410 was manufactured in 2006. It features an X-axis travel of 560 mm, Y-axis travel of 410 mm, and Z-axis travel of 510 mm. The machine includes a table size of 900 x 410 mm and a maximum table load of 500 kg. If you are looking to get high-quality machining capabilities, consider the Mazak VCN410 vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: Mazak
- year: 2006
- MODEL: VCN410
- application type: Milling
- Location: Austria
- machine type: Vertical Machining Centre
- control unit brand:
Technical Information - Mazak VCN410
Dimensions
- Machine Height: 2778 mm
- Machine Weight: 4920 kg
- Table Load: 500 kg
Movement
- Number of Axes: 3
- X-axis Travel: 560 mm
- Y-axis Travel: 410 mm
- Z-axis Travel: 510 mm
Technical Specification
- Number of Tools: 30
- Spindle Power: 18.5 kW
- Spindle Speed: 12000 RPM
Additional Information
Table dimensions: 900 x 410 mm
Spindle taper: No. 40 (CAT 40)
Rapid traverse (X/Y/Z): 36 m/min
Spindle motor: AC 18.5/15/11/7.5 kW
Power supply: 3-phase, 200 V, 50 Hz
Rated capacity: 28.3/23.32 kVA
Compressed air: 5 bar / 200 l/min
Floor space: 2,000 x 2,600 mm
Standard equipment: flood cooling, tool life monitoring, worklight
Additional equipment
Chip conveyor (hinge type)
Coolant tank
Chip bucket
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
