Mazak VTC-200B-II

Photo Gallery

SOLD

Mazak - VTC-200B-II

2005

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Mazak VTC-200B-II

Show in original language

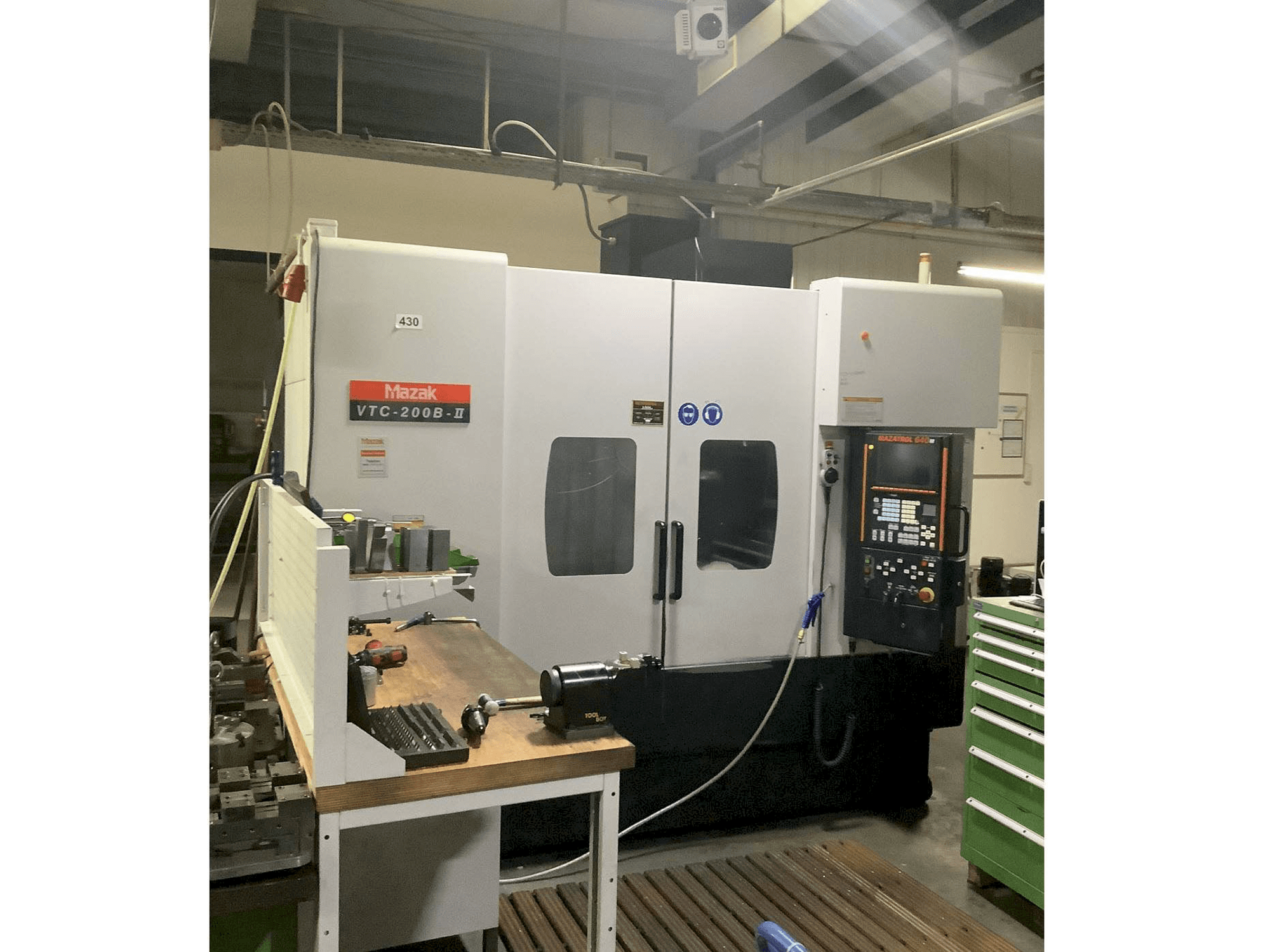

This Mazak VTC-200B-II Vertical Machining Center was built in 2005. It is operated through a MAZATROL 640M control unit. This 3 axis machine works with a spindle speed range 40-12000 rpm and a table size of 510 x 1460 mm.

Overview

brand: Mazak
year: 2005
MODEL: VTC-200B-II
application type: Milling
Location: Germany
machine type: Machining centers (vertical)
availability: Sold
control unit brand: MAZATROL
GINDUMAC ID: DE-MIL-MAZ-2005-00001

Technical Information

General Data

Measurements width: 2850 mm
Measurements depth: 3312 mm
Machine weight: 6100 kg

Control Unit

Brand: MAZATROL
Model: 640 M

Main drive

Number of spindles: 1
Spindle speed range: 40-12000 1/MIN
Spindle motor power: 18.5/11/7.5 kw
Number of axis: 3

Movement

X-AXIS Movement: 1120 mm
X-AXIS Rapid traverse: 36 m/min
Y-AXIS Movement: 510 mm
Y-AXIS Rapid traverse: 36 m/min
Z-AXIS Movement: 510 mm
Z-AXIS Rapid traverse: 36 m/min

Table

Outer length: 510 mm
Outer width: 1460 mm
Height adjustment: 750 mm
Min distance between vertical spindle and table: 180 mm
Max distance between vertical spindle and table: 690 mm
Table load: 800 kg

Tools

Number of stations: 24
Max weight: 8 kg
Max tool diameter: 80 mm (with free side pockets 110 mm)
Max tool length: 350 mm

Media

Main electronic connection: 400 v 50 hz
Power consumption: 22.7 kva

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Torque max. 98 nm
- - Tank capacity 300 l
- - Delivery rate at the pump 24 l/min
- - Pressure at the pump 5 bar
- - Tool magazine (chain version)
- - Bar capacity cat 40
- - Front of column to spindle centre 530 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
