MEBA - 560 DG-1000 + PEDDINGHAUS TDK 1000 /9PDE-SAW-MEB-2001-00001

Name: MEBA 560 DG-1000 + PEDDINGHAUS TDK 1000 /9P
Brand: MEBA
SKU: DE-SAW-MEB-2001-00001
Price: 44000 EUR
Availability: InStock

44,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used MEBA 560 DG-1000 - 2001 - For Sale | gindumac.com

Show in original language

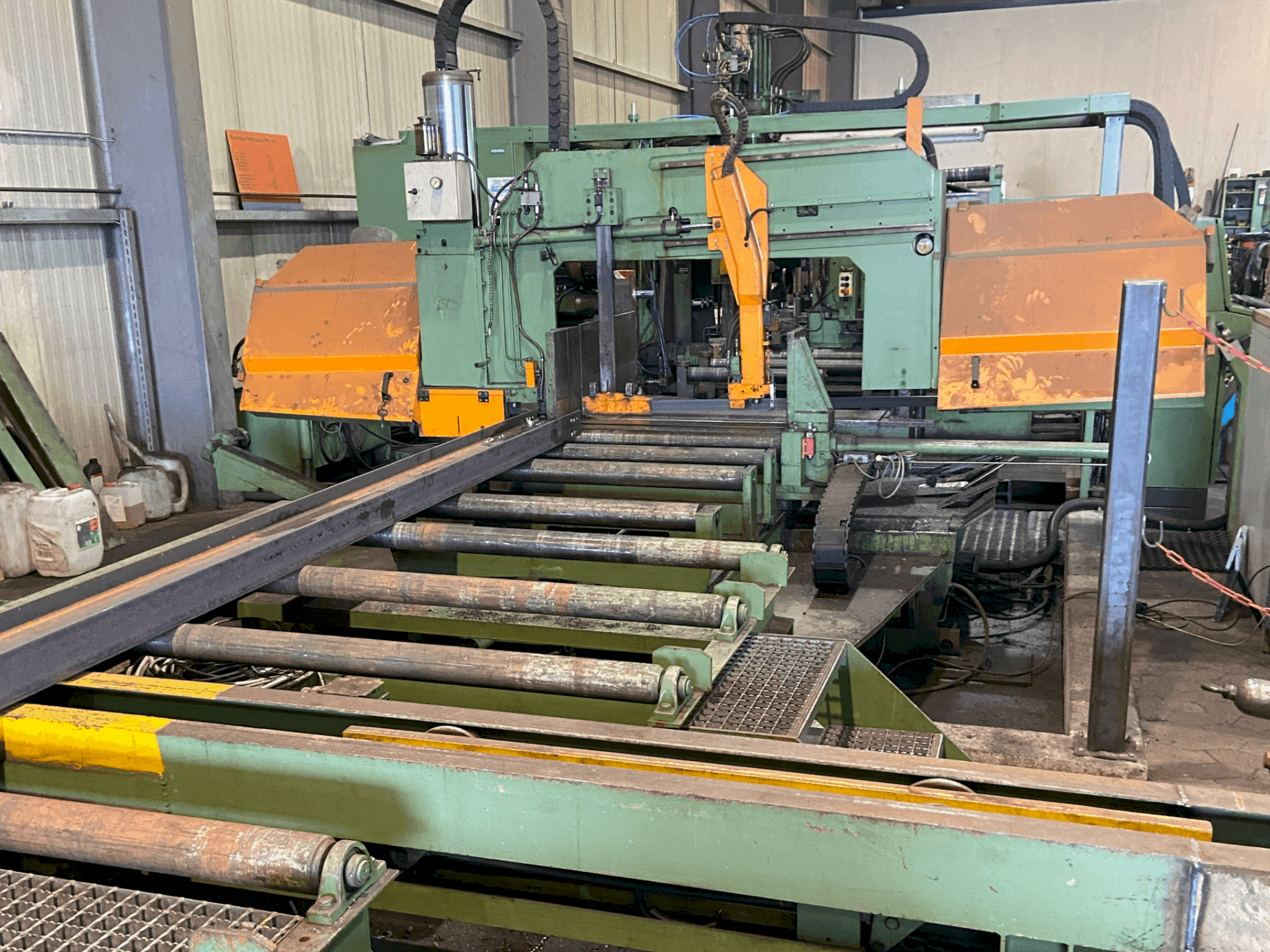

This MEBA 560 DG-1000 was manufactured in 2001. It features a metal band saw with a cutting capacity of 90°: Round 560 mm, Flat 1000×560 mm. The saw blade dimensions are 9300×54×1.6 mm, and it operates with a cutting speed of 18 to 95 m/min. The machine weighs approximately 6055 kg. Consider the opportunity to buy this MEBA 560 DG-1000 Metal Band Saw. Contact us for more information about this machine.

Overview

brand: MEBA
year: 2001
MODEL: 560 DG-1000 + PEDDINGHAUS TDK 1000 /9P
production hours: 33733
application type: Sawing
Location: Germany
machine type: Metal Band Saw

Technical Information - MEBA 560 DG-1000 + PEDDINGHAUS TDK 1000 /9P

Dimensions

Machine Depth: 3300 mm
Machine Height: 2800 mm
Machine Weight: 6055 kg

Additional Information

Machine Benefits

Technical Machine Benefits

Saw blade drive: 7. 5 kw
Hydraulics: 2. 2 kw
Coolant pump: 0. 11 kw
Fluid capacities: hydraulics: approx. 40 liters coolant: approx. 200 liters
Noise emission: 74 db(a)
Cutting capacity at 90°: round 560 mm, flat 1000x560 mm
Cutting capacity at 45° (left): round 560 mm, flat 700x560 mm
Cutting capacity at 30° (left): round 400 mm, flat 400x560 mm
Cutting capacity at 45° (right): round 560 mm, flat 750x560 mm

Extra Information

Table Cutting Speed: 18 to 95 m/min (stepless) or 15 to 150 m/min with AC drive (option) Saw Blade Dimensions: 9300x54x1.6 mm Machine-Specific Data (Drilling Machine) Maximum Machining Width: 1000 mm Maximum Machining Height: 420 mm Maximum Travel Speed: Longitudinal: 32 m/min Web (Y): 20 m/min Flanges (Z & W): 20 m/min Number of Drill Spindles: 9 (3 per axis) Drill Speeds: Spindle 1: 100-658 UPM/min Spindle 2: 100-542 UPM/min Spindle 3: 100-790 UPM/min Drill Diameter Range: 8-40 mm Total Connected Load: 50 kW

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
