- Mecal SW453 Reverse Garda 3 Miter Saw machine

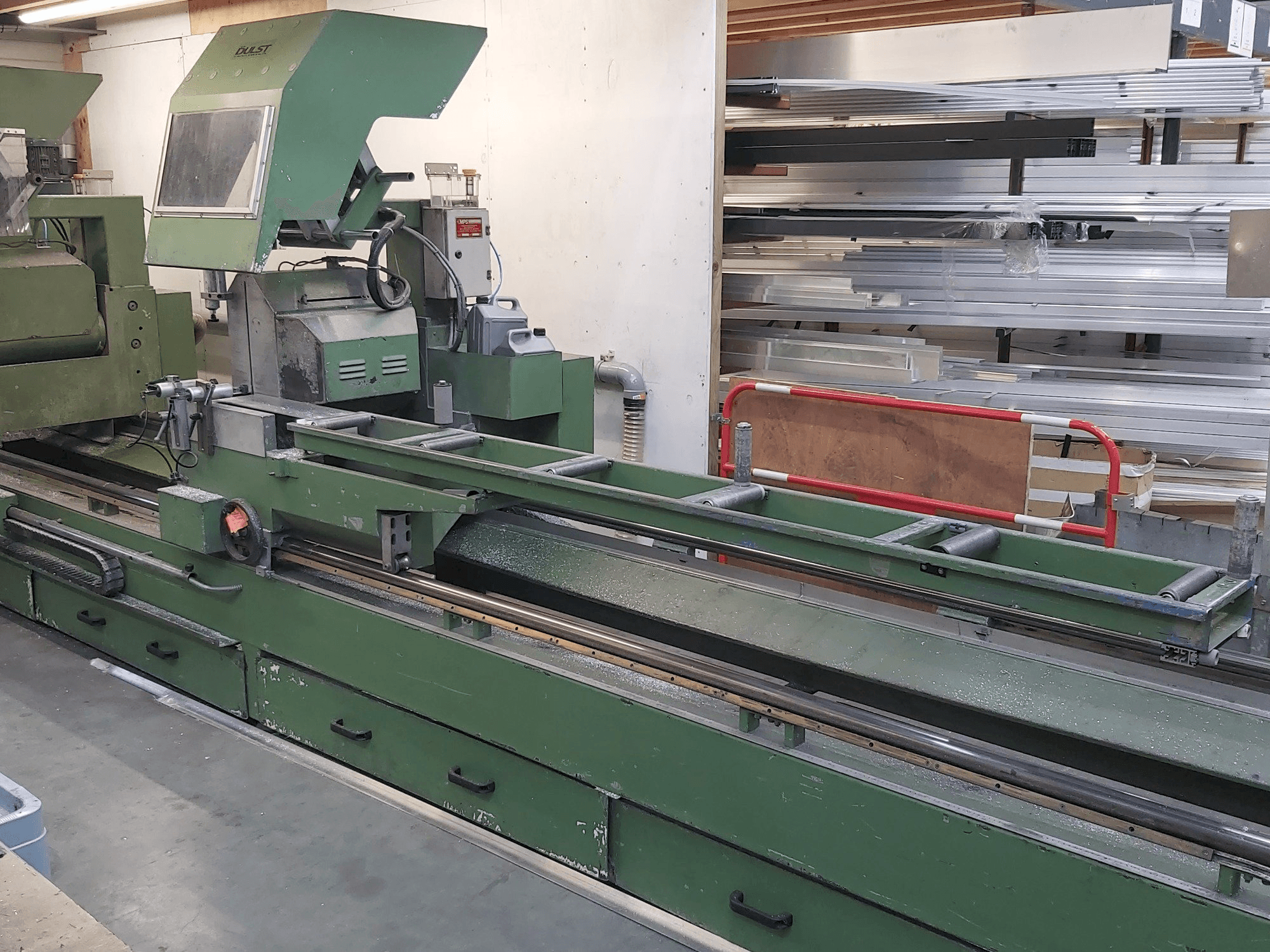

This Mecal SW453 Reverse Garda 3 Miter Saw machine was manufactured in the year 2001. It is equipped with a MECAL 9001 control unit. The machine has a Saw motor of 2800 rpm.
Overview
- brand: MECAL
- year: 2001
- MODEL: SW453 Reverse Garda 3
- application type: Other (MT)
- Location: Netherlands
- machine type: Other
- availability: Sold
- control unit brand: MECAL
Technical Information - MECAL SW453 Reverse Garda 3
Control Unit
- Brand: MECAL
- Model: 9001
Additional Information
- Technical Machine Benefits:
- - Double miter saw mecal sw453
- - Type reverse garda 3
- - Max. Cutting length between the saw heads: 5 m
- - Double miter saw with movable right head by means of a programmable dc servo motor over a rack and pinion. The tilting of the saw heads is servo-controlled
- - Servo-controlled tilting (tilting) of the cutting heads of each head from 22. 5° outward to 45° inward
- - Including 2 saw blades: 500 mm
- - Motor 2800 rpm
- - 380-400v
- - 2. 2kw
- - Equipped with an industrial pc, type ec 9001
- Qualitative Machine Benefits:
- - Hydropneumatic linear saw feed
- - Equipped with adjustable end stop for the stroke length
- - The saw comes from the back to the front
- - Standard incl. Mist lubrication (suction, water-based coolant)
- - Incl. 2 vertical clamps adjustable in height from above. The clamps have a pneumatic stroke in the transverse direction to prevent the saw from cutting into the clamp.
- - Incl. 2 fixed horizontal clamps inside, adjustable in height/depth
- - Equipped with pneumatic protective covers around the cutting zone
- - Incl. 2 hm saw blades: tct Ø 500mm x 30 x 120tds
- - In accordance with ce guidelines, supplied with assembly keys and instruction book
- - Minimum cutting length between the saw heads, with straight cutting: 300 mm -the control is suitable for connection to the network.
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
