Metallkraft - HPS 65 DSDE-PUN-MET-2014-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Sheet Metal Machinery
- ➤ Used Metallkraft HPS 65 DS For Sale | gindumac.com

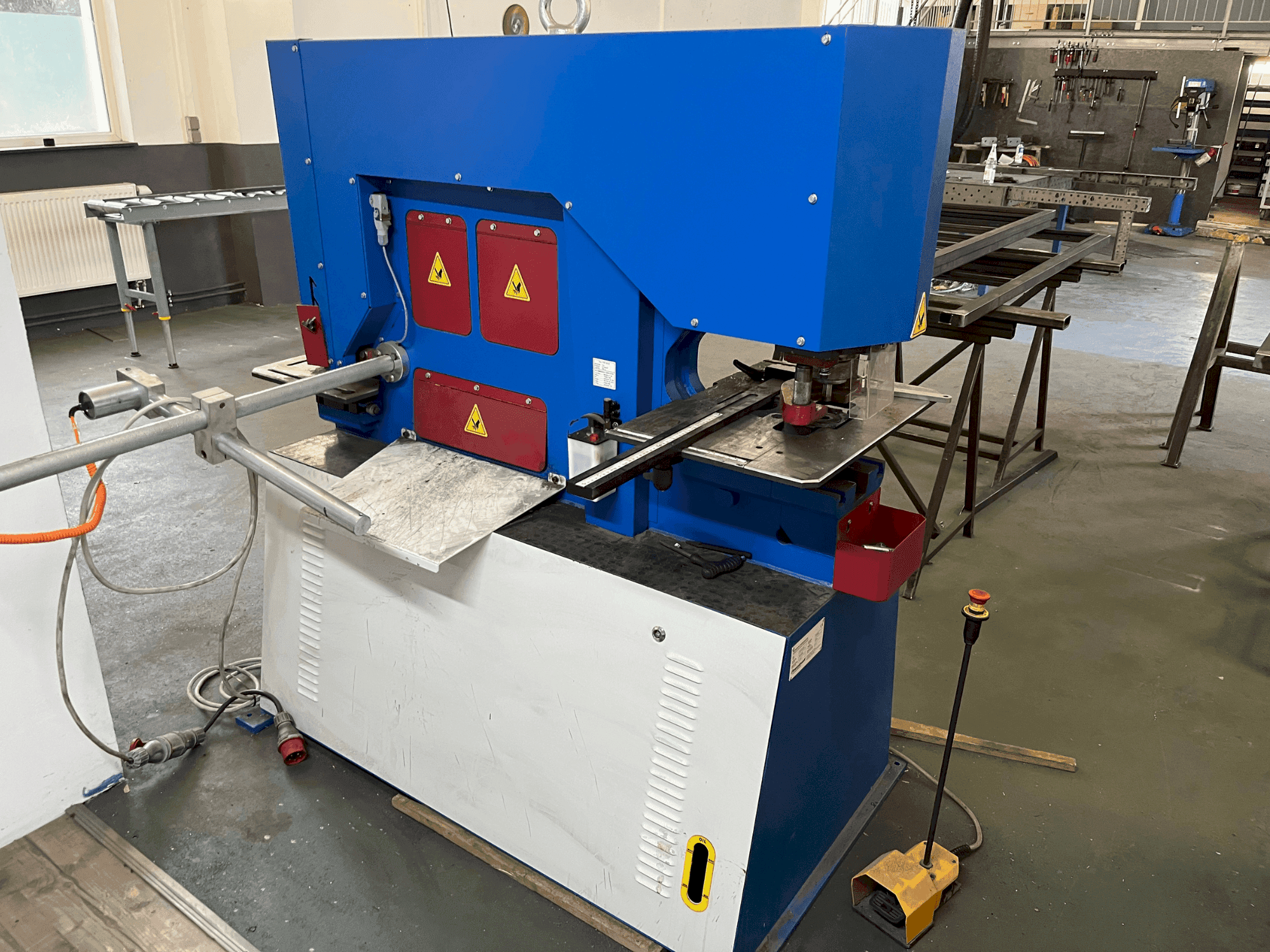

This Metallkraft HPS 65 DS was manufactured in 2014. It features a robust 65-ton punching station, flat and angle steel shears, and a notching station capable of handling up to 10 mm thickness. Dimensions include a length of 1700 mm, width of 950 mm, and height of 1880 mm, weighing approximately 1600 kg. Powered by a 5.5 kW motor, this machine offers precision with a variety of shearing and punching capabilities. Contact us for more information about this machine.
Overview
- brand: Metallkraft
- year: 2023
- MODEL: HPS 65 DS
- application type: Punching
- Location: Germany
- machine type: CNC Punching Machine
Technical Information - Metallkraft HPS 65 DS
Dimensions
- Machine Depth: 1700 mm
- Machine Height: 1880 mm
- Machine Weight: 1600 kg
Additional Information
Additional equipment
- Punching station with adjustable punch holder and bayonet lock
- Various punch and die reducers
- Equipped with work light, electric contact stop, and hydraulic oil
- Includes 2 working cylinders and 2 foot pedals
Machine Benefits
Technical Machine Benefits
- Connection voltage: 400 v
- Mains frequency: 50 hz
Extra Information
Punching Station: Punching pressure: 65 t Max diameter x sheet thickness (400 N/mm² steel): 57 x 10 mm Extended throat (factory option): 620 mm Max stroke: 55 mm Number of strokes: 25 /min Throat: 305 mm Blade Length: 380 mm 45° angle cut, max leg length x max thickness: 100 x 15 mm Working height: 900 mm Flat Steel Shears: Material Width x Thickness max: 375 x 15 mm Blade Length: 380 mm Angle Cut 45° Max. Leg Length x Thickness max: 100 x 15 mm Working Height: 900 mm Steel Bar Shears: Round Material Capacity: 45 mm Square Material Capacity: 45 mm Notching Station: Max Notching Width: 45 mm Max Notching Depth: 90 mm Working Height: 100 x 100 x 10 mm Angle Steel Shears: Cutting capacity 90° L-profile: 120 x 120 x 12 mm Cutting capacity 45° L-profile: 70 x 10 mm Cutting capacity for U-I profiles (accessory): 120 x 58 mm Cutting capacity for T-profiles (accessory): 90 x 11 mm Working height: 1140 mm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
