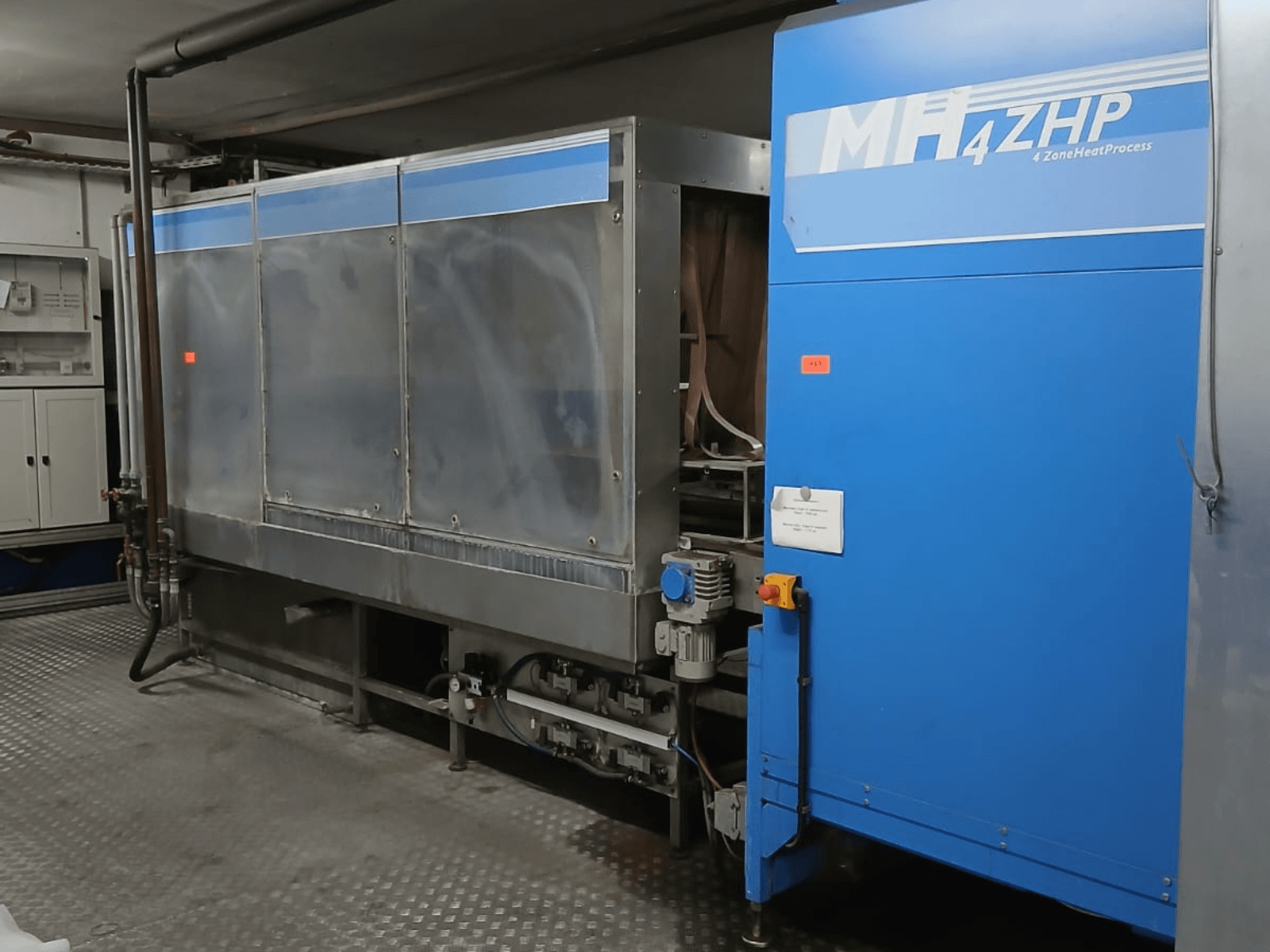

MH - 4ZHPDE-OTH-MHX-2010-00001

• Passage width: 650 mm

• Passage height: 1100 mm

• Coil length: 4500 mm

• Overall length: 5850 mm

• Heating capacity: 96 kW

• Heating zones: 4

Cooling zone

• Length: 1500 mm

• Max. pipe length: 1500 mm

• Overall length: 1500 mm

Dimensions and weights

• Frost length: 6.05 m

• Frost width: 1.70 m

• Frost height: 2.60 m

• Frost weight: 2.4 t

• System length: 11.53 m

• System width: 3.81 m

• System height: 2.55 m

• System weight: 3.2 t

Utilities and emissions

• Pneumatic supply: operating pressure 6 bar, dry, oil-free

• Water supply: 3 bar

• Power supply: 230/400 volts, 50 Hz, 120 kW

• Noise emission: < 70 dB(A)

Additional equipment

• Cooling system (cooling unit)

• Conveyor system (accumulation section)

• Cooling water collection tank with level monitoring

• Tool carrier
