MIKRON UCP 710

Photo Gallery

MIKRON - UCP 710CH-MIL-MIK-1999-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

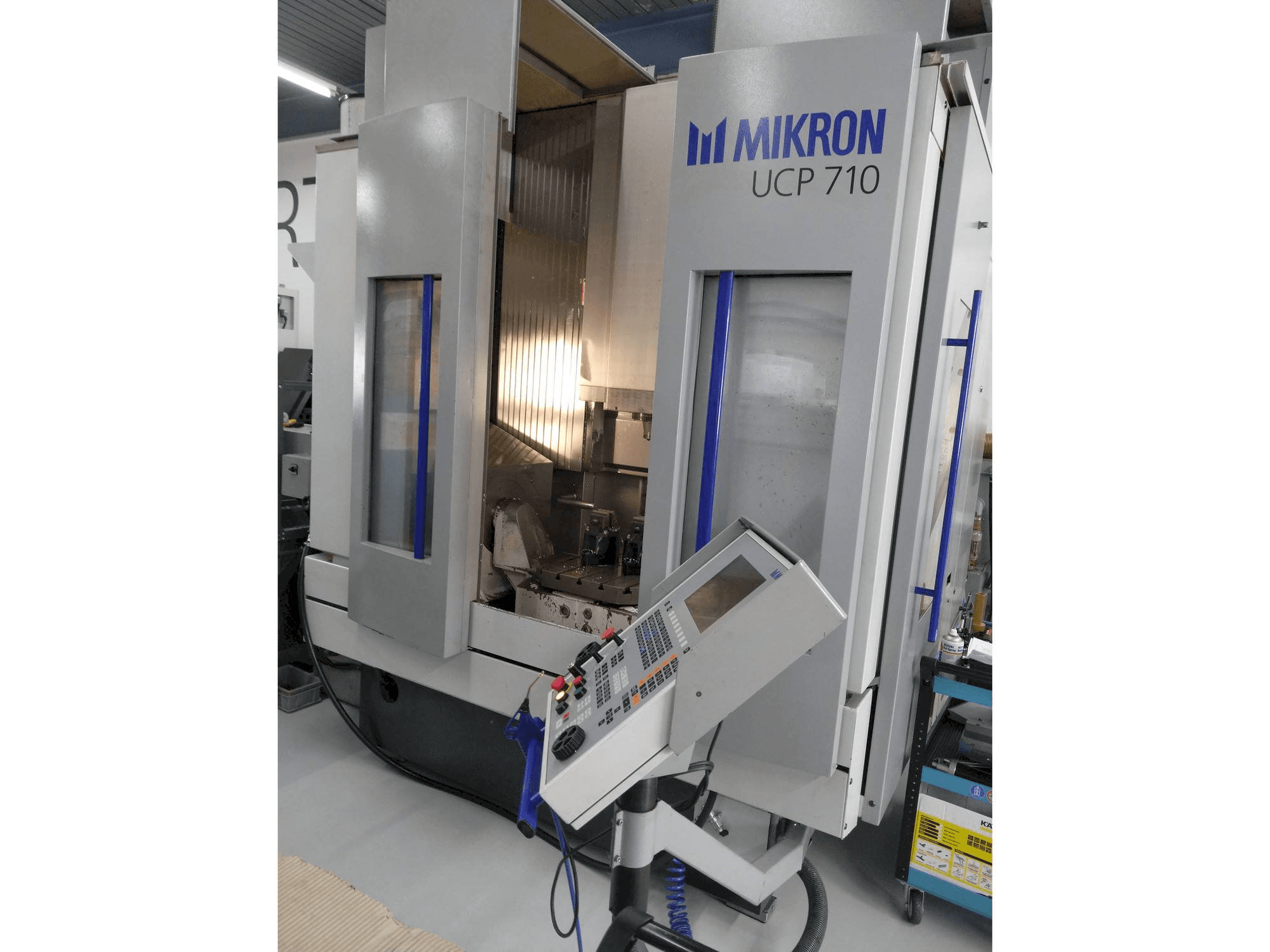

MIKRON UCP 710 Vertical machining center

Show in original language

This MIKRON UCP 710 Vertical machining center was manufactured in the year 1999. The machine has a spindle speed of 20000 rpm and a HSK 63A tool taper. It is equipped with a HEIDENHAIN TNC 430 control. The UCP 710 is a 5-axis machining centre with swivel rotary table from Rückle, endless 4th axis and swivel range 5th axis -30°/+100°. It operates with a clamping surface of 630 x 630 mm. Due to regular maintenance the machine is in good condition with 79637 machine on hours and 15311 spindle hours.

Overview

brand: MIKRON
year: 1999
MODEL: UCP 710
production hours: 15311
application type: Milling
Location: Switzerland
machine type: Universal Machining Centre
control unit brand: HEIDENHAIN

Technical Information - MIKRON UCP 710

Control Unit

Control Brand: HEIDENHAIN
Control Model: TNC 430

Dimensions

Machine Weight: 9000 kg
Table Length: 630 mm
Table Width: 630 mm

Movement

Number of Axes: 5
X-axis Travel: 710 mm
Y-axis Travel: 500 mm
Z-axis Travel: 500 mm

Technical Specification

Max. Tool Weight: 8 kg
Spindle Speed: 20000 RPM

Additional Information

Additional equipment

Large Pittrag production package with drum filter and wide chip conveyor
40 bar inner cooling through spindle
Coolant device (Capacity 120 l / Flow rate approx. 92 l/min. at 2.2 bar
Tool changer (Tool diameter: 90 mm fully loaded / 140 mm partially loaded)

Machine Benefits

Qualitative Machine Benefits

Condition very well maintained (new bellows etc. )
Spindle hours: 15311, machine on hours: 79637

Technical Machine Benefits

Swivel rotary table (rückle) with clamping surface 630x630mm has endless 4th axis and swivel range 5th axis -30°/+100°
Chip-to-chip time according to vdi 2852: 7s
Tool change time: 5s
Max. Weight of all tools: 180 kg in drum magazine
Noise emission: sound power 75 db (a)

Extra Information

Tools and clamping devices are not included

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Documents

MIKRON UCP 710 (1999) - Tech Specs (DE).pdf
