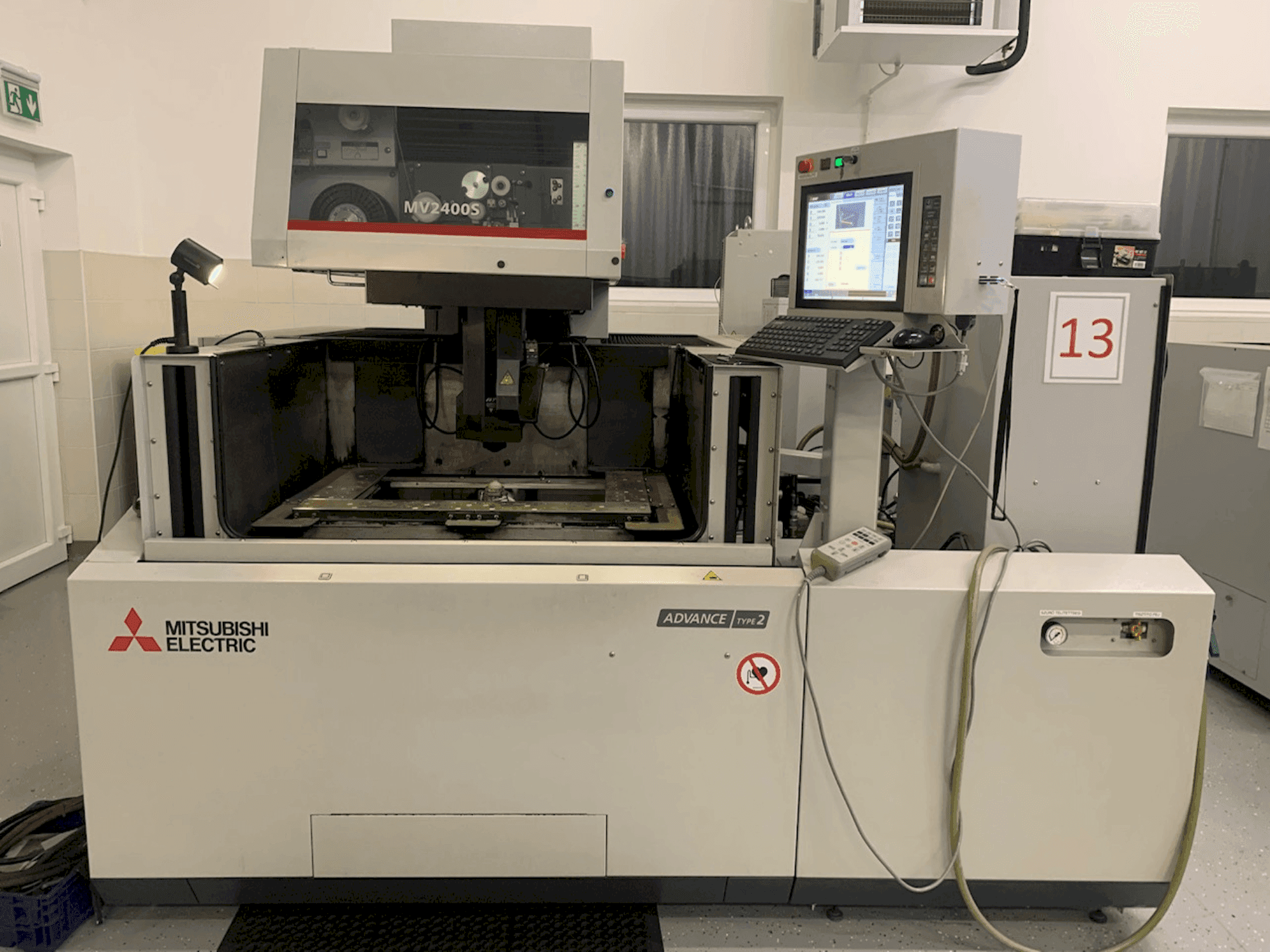

This 5-axis Mitsubishi MV2400S wire EDM machine was manufactured in 2015. It features X, Y, Z movements of 600 x 400 x 310 mm and U, V axes at 150 x 150 mm, supporting a maximum workpiece weight of 1,500 kg. Equipped with an advanced Mitsubishi M700 controller with 3D CAD/CAM capabilities, it ensures precise machining. Consider the opportunity to buy this Mitsubishi MV2400S wire EDM machine. Contact us for more information about this machine.
Overview
- brand: Mitsubishi
- year: 2015
- MODEL: MV2400S
- application type: EDM
- Location: Hungary
- machine type: Wire EDM Machine
Technical Information - Mitsubishi MV2400S
Dimensions
- Machine Depth: 2687 mm
- Machine Height: 2150 mm
- Machine Weight: 3500 kg
Movement
- Number of Axes: 5
- X-axis Travel: 600 mm
- Y-axis Travel: 400 mm
- Z-axis Travel: 310 mm
Additional Information
Additional equipment
- Cooling/Temperature Control: Cooling system with temperature regulation
- Generator: Transistor pulse generator
- Output Current: 50 A
- Generator Size: 600 x 650 x 1765 mm
- Generator Size: 600 x 650 x 1765 mm
Machine Benefits
Technical Machine Benefits
- Maximum machining angles / height: 15° / 260 mm
- Maximum workpiece size: 1050 x 820 x 305 mm
- U-shaped table dimensions (w x d): 840 x 560 mm
- M8 mounting holes: 52
- Wire diameter: 0. 1 – 0. 3 mm
- Wire coil weight: 10 kg
- Automatic wire threading and wire cutting: included
- Tank capacity: 860 liters
- Filter rating: 3 µm
- Filter system: dual system // filter system weight: 350 kg
Extra Information
Controller Inputs: Keyboard, USB, Memory Stick, Ethernet Display: 15" TFT Touchscreen Positioning Accuracy: 0.1 µm Minimum Incremental Movement: 0.05 µm Maximum Programmable Size: ± 99999999 mm Software: ADVANCE Plus with 3D CAD/CAM, 10 GB Memory, and Clear/Intuitive Layout Remote Communication Ready: mcAnywhere Graphical Views: 3D, Front, Side, Top Machine Benefits ODS Optical Drive System Tubular Direct Drives on X, Y Axes Linear Scales on X, Y Axes Intelligent Automatic Wire Threading System Dry and Underwater Operation Capable Wire Straightening System Automatic Hole Detection 3D CAD/CAM Control System 5 Controlled Axes + Prepared for Additional Axes Precise Finish Circuit (PFC) Machining Long Life System (LLS) Design U-Shaped Hardened Segmented Clamping Table Compressed Dielectric (Water) Cooling System Remote Communication Ready (mcAnywhere) CE Version 30°/45° Wire Cutting Capability E.KO Ionizer 1501
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
