- ➤ Used MNT 430 Horizontal Lathe For Sale | gindumac.com

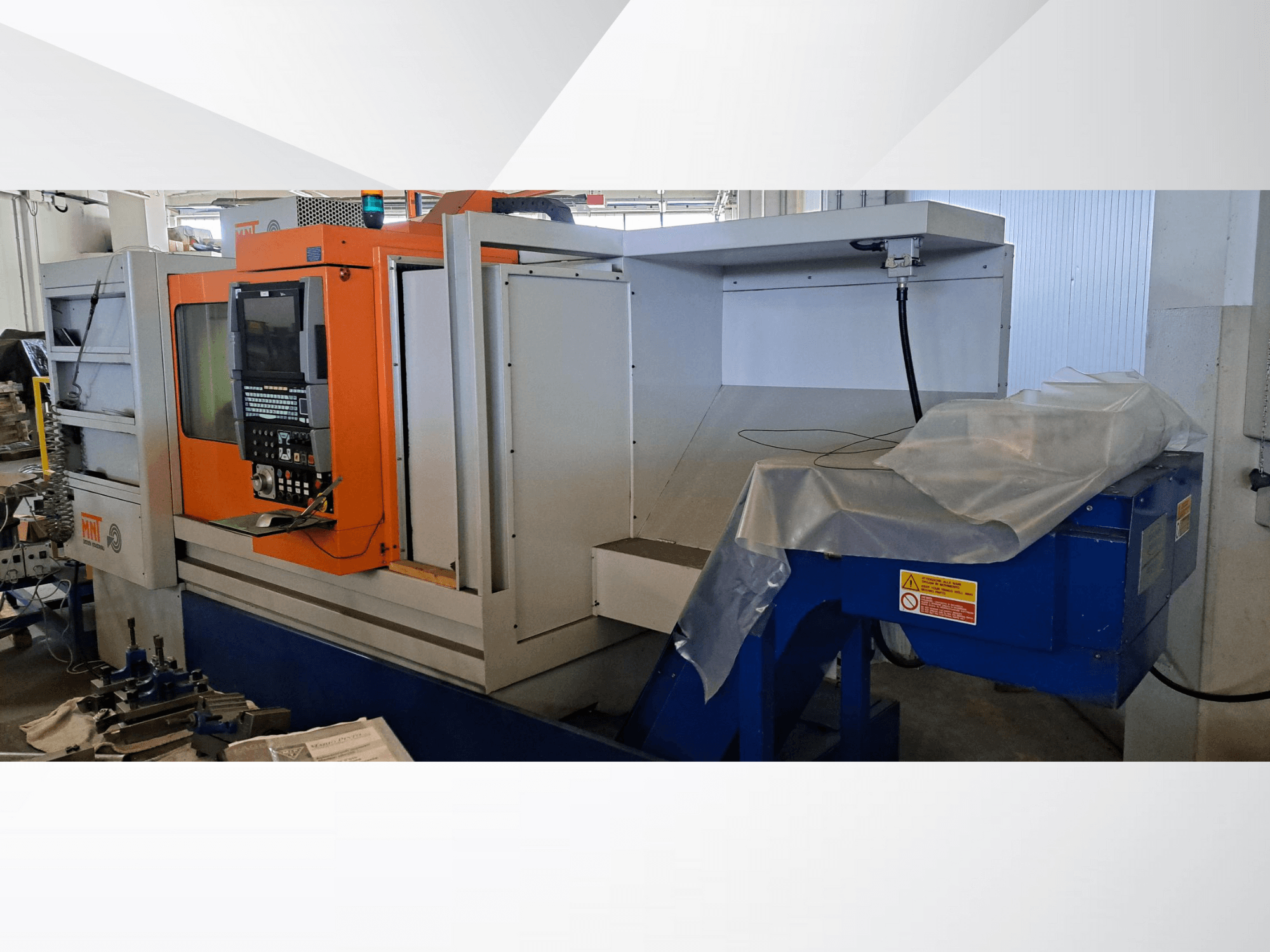

This MNT 430 horizontal turning machine was manufactured in 2005. It features a maximum turning diameter and swing of 460 mm, with a turning length up to 1000 mm. Equipped with a Siemens SINUMERIK CNC control, it supports various systems for precise operations. The spindle speed can reach up to 3000 rpm, powered by a 22 kW motor. Contact us for more information about this machine.
Overview
- brand: MNT
- year: 2005
- MODEL: 430
- application type: Turning
- Location: Italy
- machine type: Horizontal Turning Machine
Technical Information - MNT 430
Dimensions
- Machine Depth: 2040 mm
- Machine Height: 1830 mm
- Machine Length: 5570 mm
- Machine Weight: 7200 kg
Movement
- X-axis Travel: 300 mm
- Z-axis Travel: 1000 mm
Additional Information
Spindle Speed: 0–3000 rpm
Spindle Motor Power: 22 kW
Rapid Traverse X-axis: 15 m/min
Rapid Traverse Z-axis: 15 m/min
Maximum Turning Diameter: 460 mm
Maximum Swing Diameter: 460 mm
Maximum Turning Length: 1000 mm
Maximum Distance Between Chucks/Attachments: 1300 mm
Standard Chuck Diameter: 315 / 350 mm
Spindle Bore Diameter: 82–102 mm
Front Spindle Bearing Inner Diameter: 120–140 mm
Spindle Nose Type: ISO A8
CNC Control: Siemens SINUMERIK
Compatible Systems: 805 / 810 / 840
Siemens Drives with Variable Speed Control
Note: The provided information has been summarized and organized according to the relevant machine specifications and capabilities.
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
