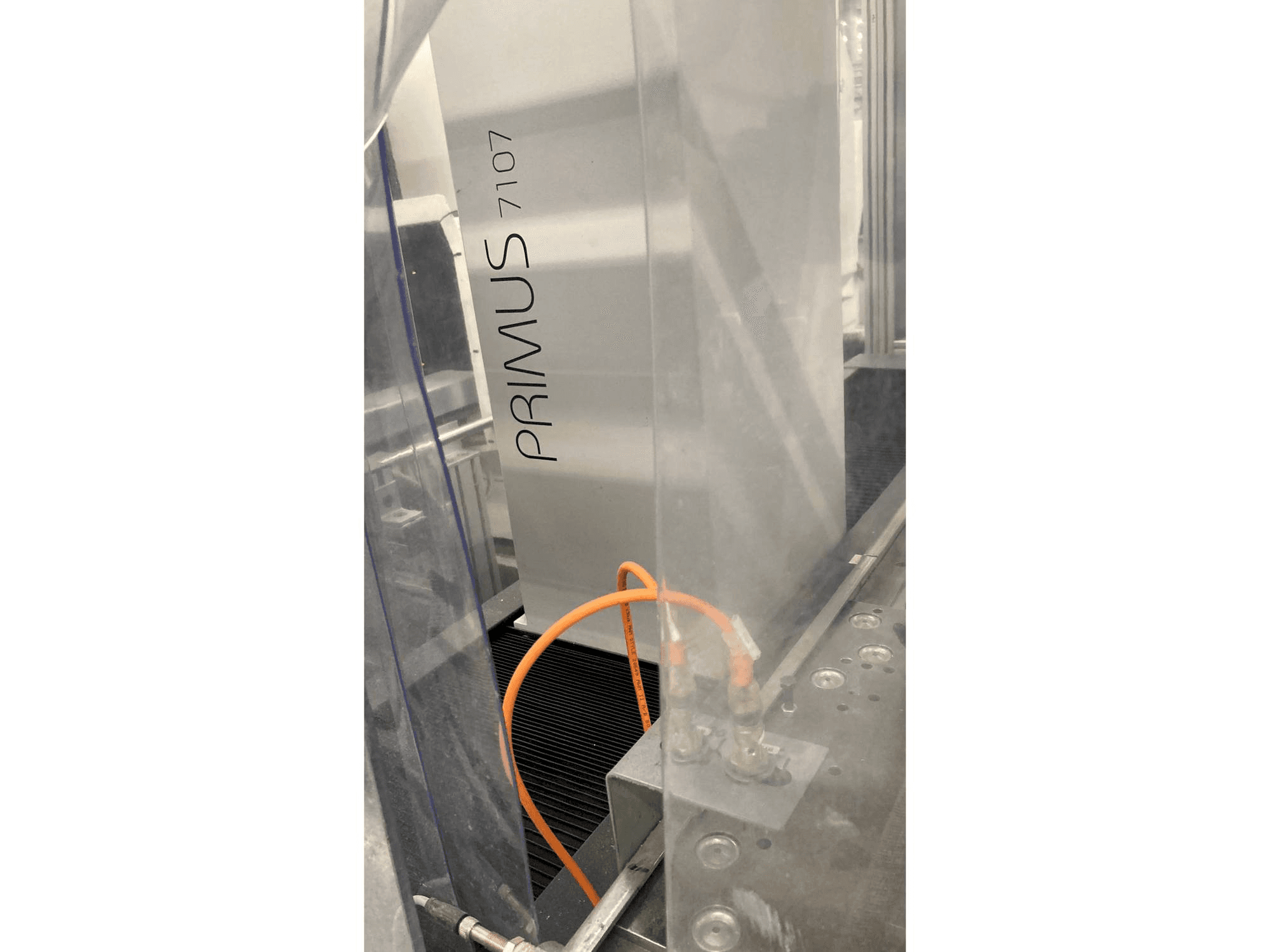

Mora - Primus 7107DE-MEA-MOR-2017-00001

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Incl. System-tp 200 probe holder
  • - Temperature sensor and pantec control unit

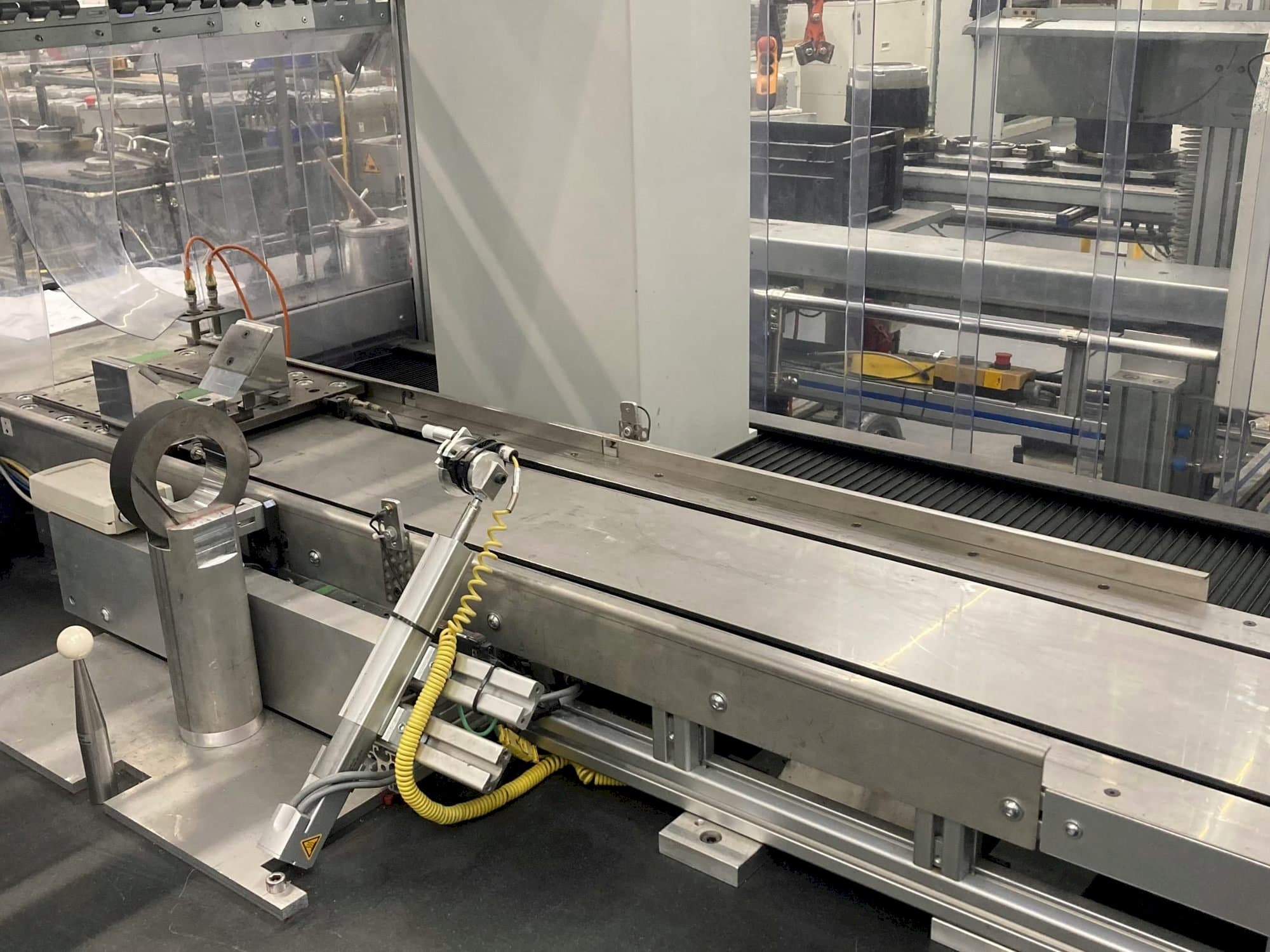

  • - A special feature is the automatic feed
  • - Inca 3d software is available
  • - High-precision scale system
  • - Powerful control system, guarantees accuracy.
  • - Accuracy: mpee=1. 7+l/300,mpep=1. 7
  • - Scanning system: reneshaw measuring plate
  • - Natural hard stone plate software: inca 3d premium
  • - Measuring range x=700 y=1000 z=700
• Qualitative Machine Benefits:
  • - The primus gantry measuring machine offers a compact and stable machine concept, which is rounded off by high-precision air bearing guides and dynamic drives in all axes.
  • - The use of granite in all axes guarantees uniform thermal behavior of the coordinate measuring machine.
  • - The machine can be found in all areas of production and quality assurance, including prototype construction or series production - it can be used universally.

Extra information

• - Measuring Range (X/Y/Z): 700 / 1000 / 700 mm - Accuracy (MPEe): 1.7 + L/300 µm - Accuracy (MPEp): 1.7 µm - Construction: Granite axes, air bearings - Table Load Capacity: Approx. 500 kg - Machine Weight: Approx. 2400 kg - Software: INCA 3D Premium (optional) - Temperature Compensation: Integrated - Clamping Surface: M10 holes in 200x200 mm grid Pantec Control Unit - Developed specifically for coordinate measuring machines - Operates via a Windows-based interface for intuitive use - Provides real-time control of all CNC axes (X/Y/Z) - Modular and compatible with various probe heads (e.g., PH10M Plus, TP200) - Includes temperature sensors for automatic compensation - Supports automated feed for efficient series measurements INCA3D Software - Central software for measurement and evaluation - Offers offline programming and analysis - Includes modules for: - Tactile/optical measurement - Counting and inspection - Integration with milling/drilling operations - Features an intuitive interface, fast learning curve, and high flexibility - Fully compatible with Pantec control and Renishaw systems
