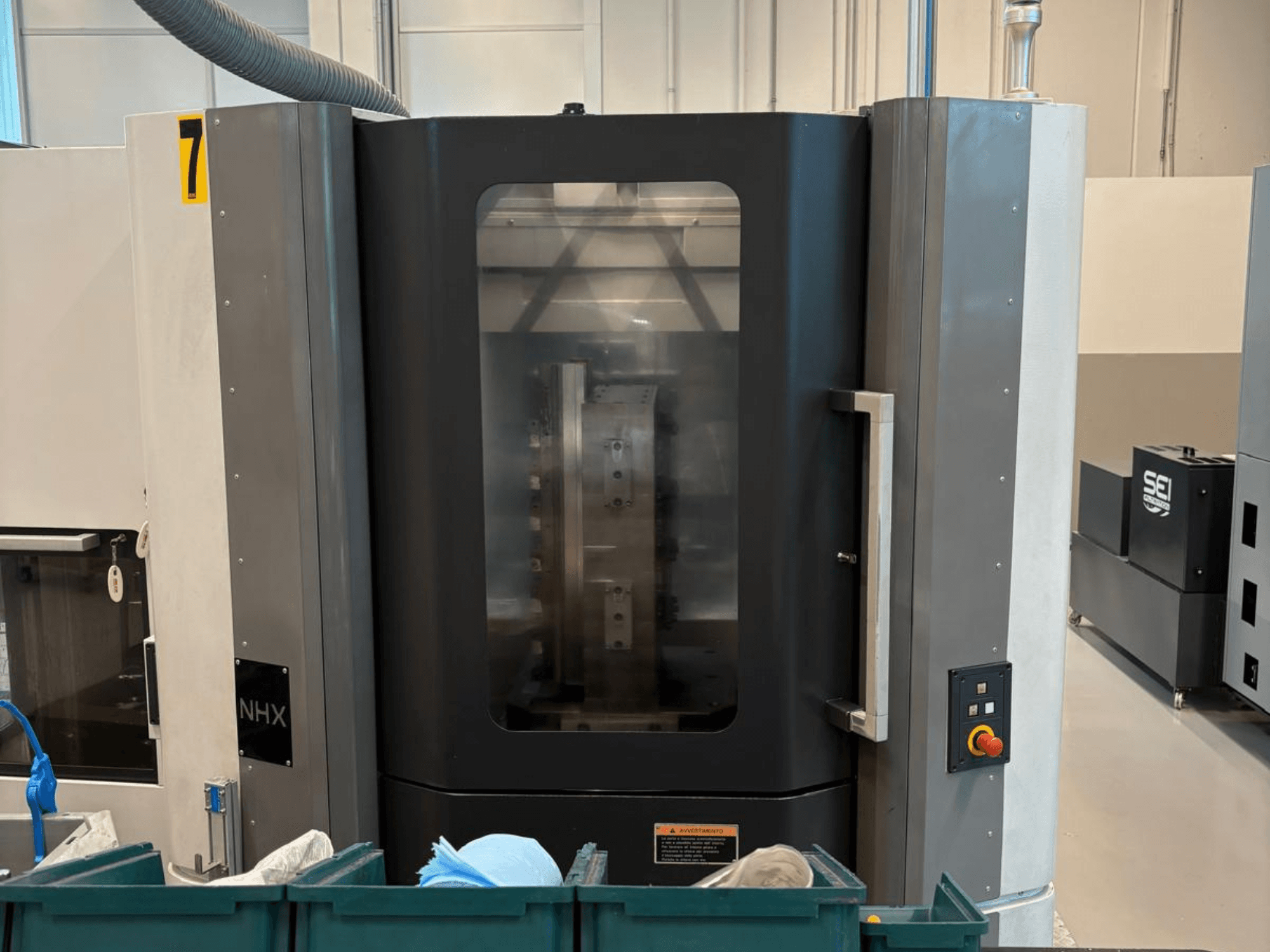

This 4s MORI SEIKI NHX 5000 was manufactured in 2011. It features a dual pallet system with a pallet size of 500 × 500 mm and a maximum pallet load of approximately 500 kg. The spindle speed reaches up to 12,000 rpm, with a tool magazine capacity of 40 tools. If you are looking to get high-quality machining capabilities, consider the MORI SEIKI NHX 5000 horizontal machining center we have for sale. Contact us for further details.
Overview
- brand: MORI SEIKI
- year: 2011
- MODEL: NHX 5000
- application type: Milling
- Location: Italy
- machine type: Horizontal Machining Centre
Technical Information - MORI SEIKI NHX 5000
Dimensions
- Table Load: 500 kg
Movement
- Number of Axes: 4
- X-axis Travel: 730 mm
- Y-axis Travel: 730 mm
- Z-axis Travel: 880 mm
Technical Specification
- Spindle Power: 22 kW
- Spindle Speed: 12000 RPM
- Taper Size: BT 40
Additional Information
Pallet system: Dual pallet; size 500 × 500 mm; max load ≈ 500 kg
Tool system: Magazine 40 tools (optional 60 / 120); tool-to-tool ≈ 0.9 s; chip-to-chip ≈ 2.8 s
B-axis: Continuous 360°; indexing resolution 0.001°
Rapid traverse (X/Y/Z): ≈ 60 m/min
Accuracy/Construction: High-precision linear guides; thermal displacement control system; glass scales (depending on configuration)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
