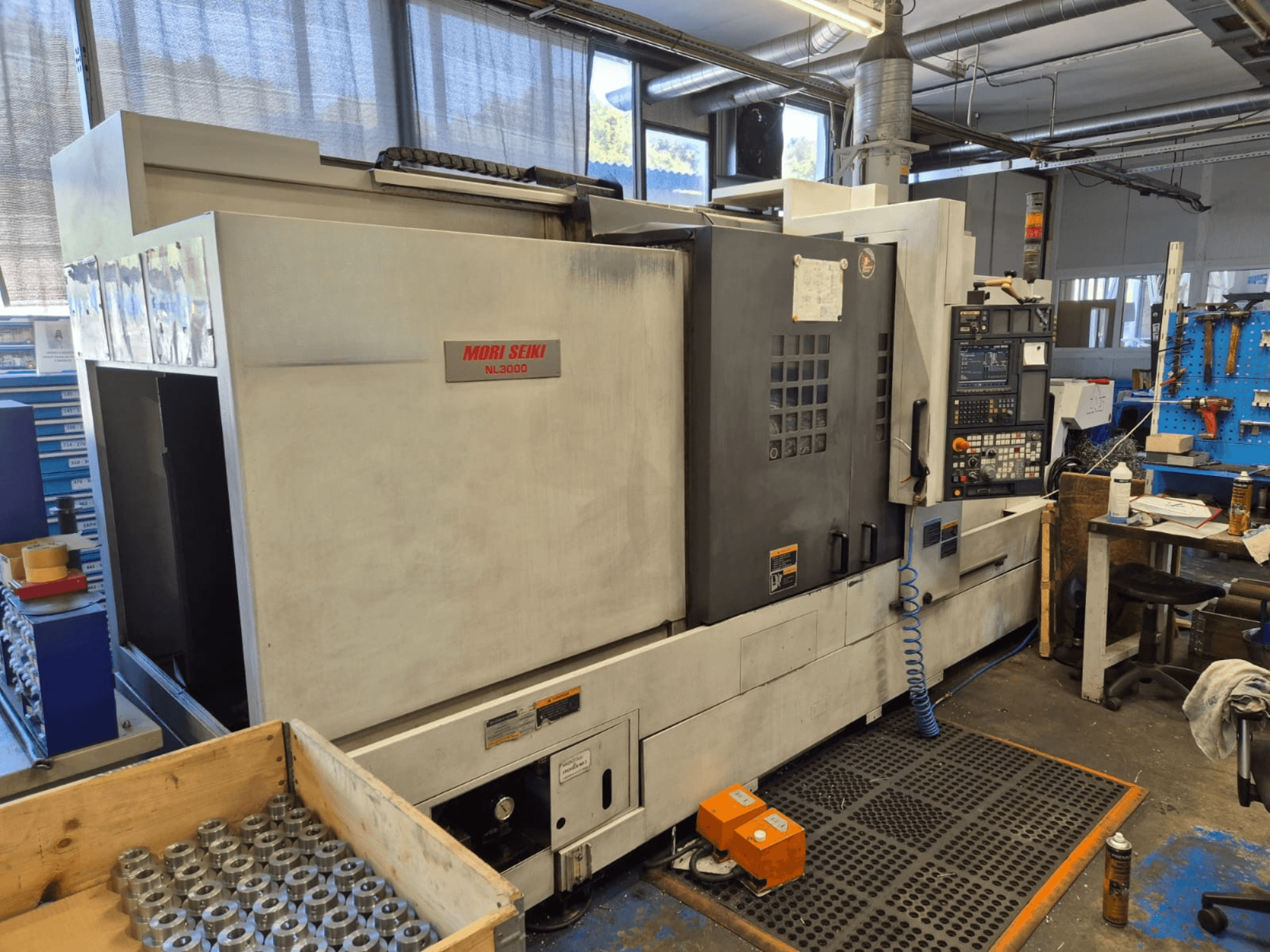

This 5-axis MORI SEIKI NL3000Y/1250 was manufactured in 2009. It features a MSX-850 control unit, a 300mm chuck, and a 10-station turret. Capable of a max spindle speed of 3,000 rpm and a rotary tool speed of 6,000 rpm, it's ideal for complex turning tasks. Additional features include a Y-axis movement of +/-60mm and a fully programmable NC tailstock. Contact us for further details regarding this machine.
Overview
- brand: MORI SEIKI
- year: 2009
- MODEL: NL3000Y/1250
- application type: Turning
- Location: Czech Republic
- machine type: Horizontal Turning Machine
Technical Information - MORI SEIKI NL3000Y/1250
Movement
- Number of Axes: 5
- Y-axis Travel: 60 mm
Technical Specification
- Spindle Power: 5.5 kW
- Spindle Speed: 3000 RPM
Additional Information
Control unit: MSX-850 (MAPPS II software)
Chuck: 300 mm with 90 mm bore, A2-8 headstock
Increased main motor power/torque: 25/30 kW, 1,000/1,300 Nm
Turret: 10 stations
Driven tools (C-axis, Y-axis)
Maximum rotary tool speed: 6,000 rpm
Rotary tool drive motor: 5,5/5,5/3,7 kW
Y-axis travel: ±60 mm
Turning capacity:
Turning diameter: 420–500 mm
Turning length: 1,250 mm
Tailstock: NC, fully programmable with separate motor
Increased Z-axis power
In-machine manual tool presetter
Chip tank
Cooling system: 325/520 W
Standard tool holders
Leveling blocks
Built-in work area lighting
Automatic power-off system
Including standard accessories
Additional equipment
New chip conveyor LNS (MY: 2025)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
