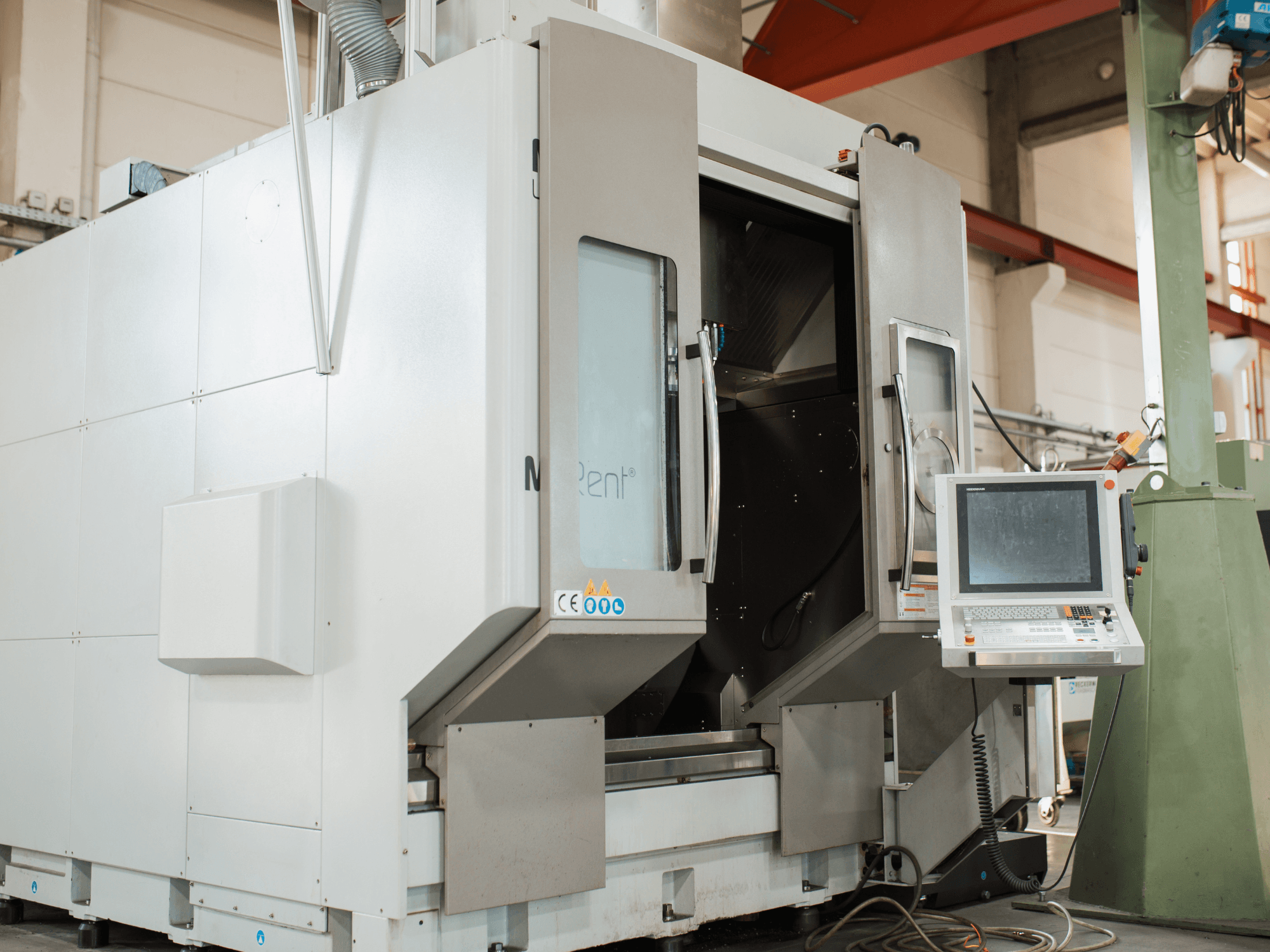

MTcut - UDS80H-5ADE-MIL-MTC-2019-00001

• Operating hours: Control unit 6,904 h; Machine 5,480 h; Program runtime 2,215 h

• Spindle: 120 Nm torque, separate spindle cooling for constant temperature

• Tool interface: HSK63 with blow-out function

• Rotary table: 800 mm diameter; Kessler rotary tilting table with 2 A-axes and 1 C-axis, direct-drive torque motors

• Feedback: Heidenhain glass scales in all 5 axes

• Tool changer: 96 positions with double-arm gripper

• Control: 15" color TFT screen

• Connectivity: Ethernet interface, 2x USB ports

• Control functions: Plain text programming; short block processing time; create new program while another is running; proven Heidenhain machining cycles

• Electronic handwheel

• CE certified

Additional equipment

• Chip conveyor

• Coolant system

• Internal high-pressure coolant 50 bar with belt filter system

• Coolant and compressed air gun

• BLUM laser tool measurement

• Heidenhain TS460 workpiece probe system for HSK63 with radio and infrared transmission

• Heidenhain KinematicsOpt including Heidenhain calibration sphere KKH 250

• Extraction system: Filtermist FX4002, air volume 1,250 m³/h

• Rotating viewing window

• Work area light

• Tool package
