- ➤ Used Muratec MD 200 Lathe
Show in original language

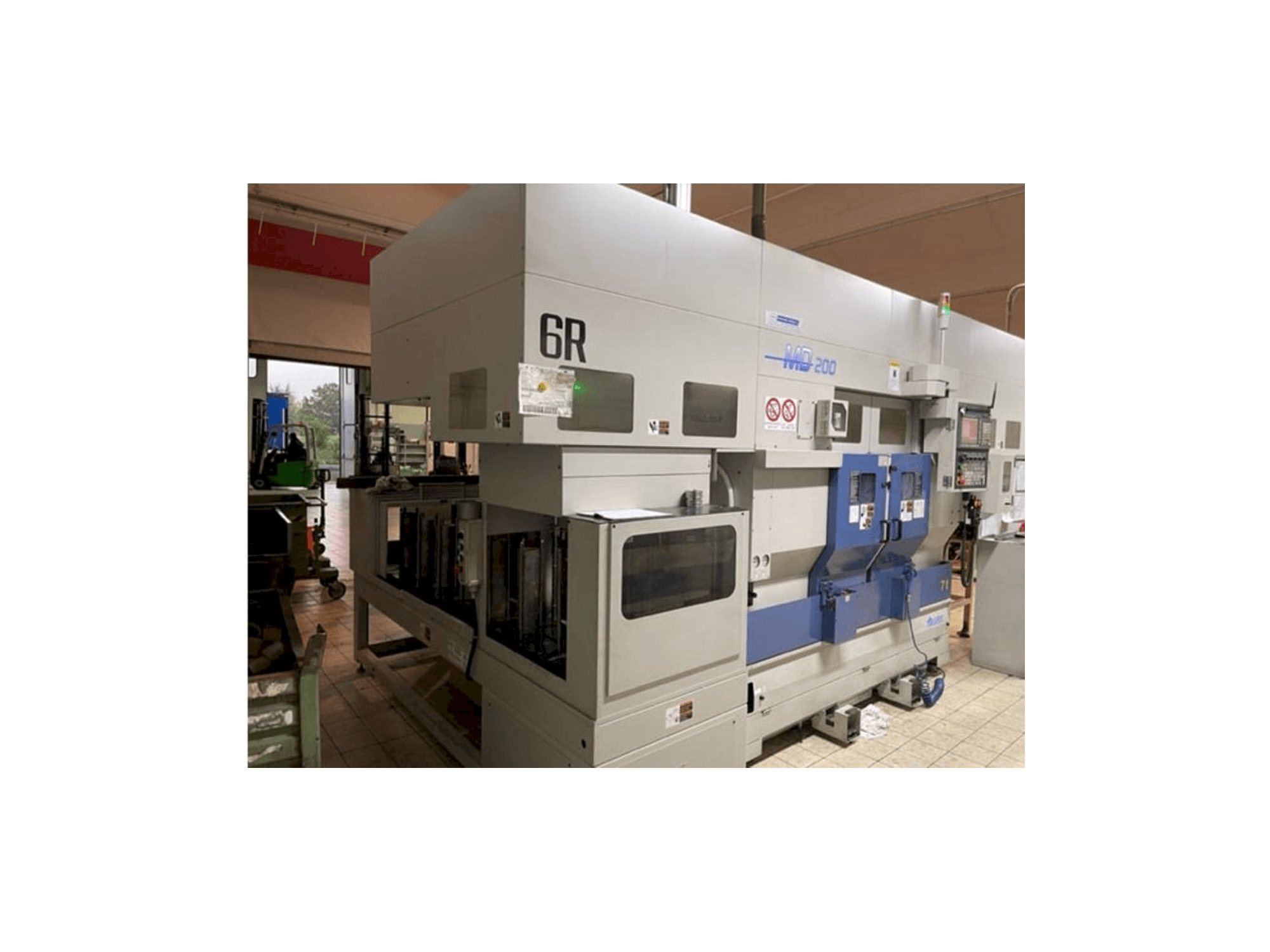

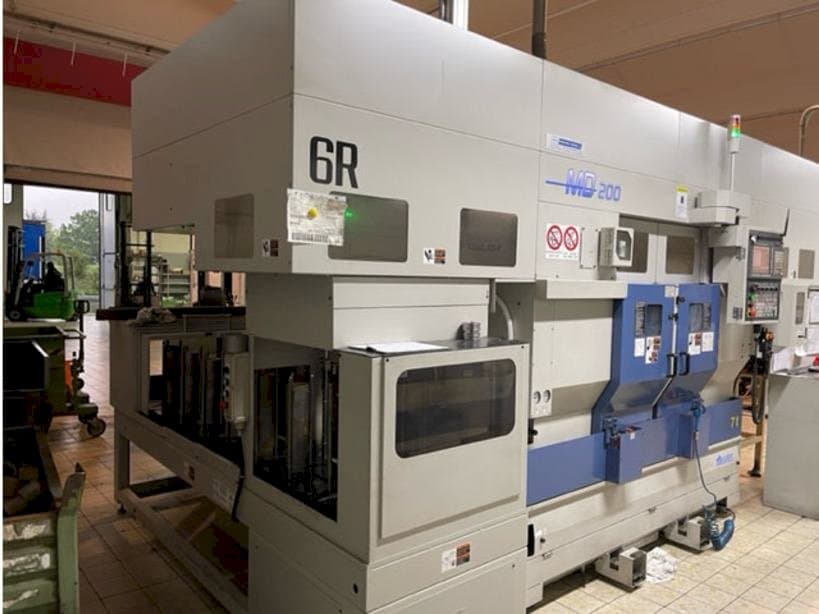

This Muratec MD 200 Lathe was manufactured in the year 2017 in Japan. It is equipped with a Fanuc CNC control unit. The machine has a spindle speed of 2000 rpm, is in good condition and well maintained.
Overview
- brand: Muratec
- year: 2017
- MODEL: MD 200
- application type: Turning
- Location: Italy
- machine type: Horizontal Turning Machine
- control unit brand: FANUC
Technical Information - Muratec MD 200
Control Unit
- Control Brand: FANUC
- Control Model: CNC
Dimensions
- Machine Depth: 4840 mm
- Machine Height: 2200 mm
- Machine Weight: 7400 kg
Technical Specification
- Spindle Power: 11 kW
- Spindle Speed: 2000 RPM
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Number of second turret tool places 12
- Second turret motorized number 12
- X axis travel second turret 190 mm
- Z axis travel second turret 170 mm rapid feeds linear axes x y z 18 m / min
- Gantry loader yes
- Maximum capacity of the gantry 8 x 2 kg maximum diameter of the piece that can be transported 200 mm
- Maximum transportable piece length 100 mm
- Stoker or blanks warehouse yes
- Pallet number 14
- Chip conveyor belt
Technical Machine Benefits
- Spindle nose asa 6
- Turnable diameter 200 mm
- Self-centering diameter 254 mm
- Distance between spindles 440 mm
- Bar passage 65 mm
- Turnable length 100 mm
- Number of secondary spindle revolutions 2000
- Number of tool places in the first turret 12
- Motorized number of first turret 12
- X axis travel first turret 190 mm z axis travel first turret 170 mm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
