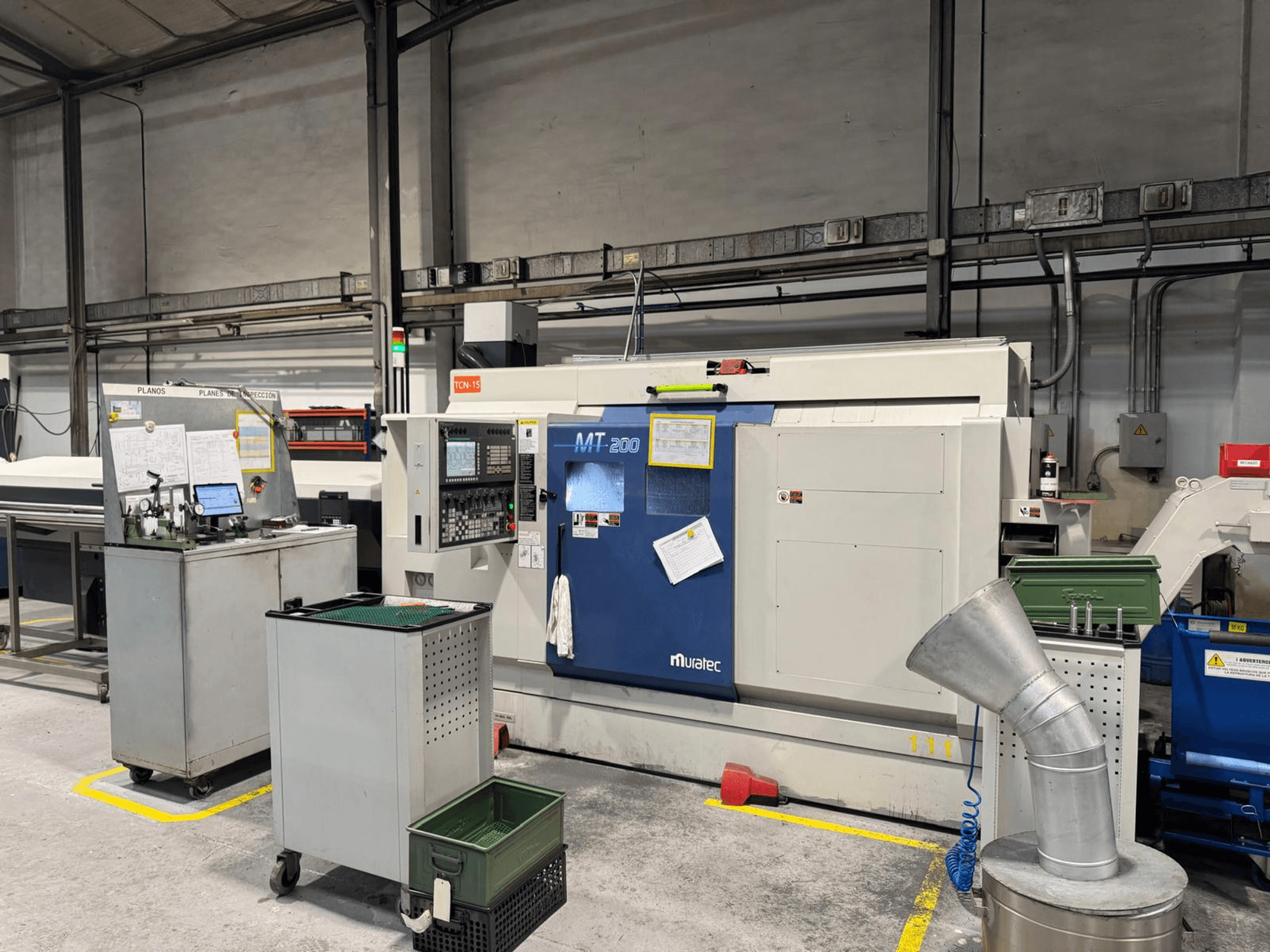

Muratec - MT200ES-TUR-MUR-2019-00001

• Chuck size: 210 mm (8 inch)

• Maximum swing: 205 mm (15 stations) / 228 mm (12 stations)

• Maximum bar capacity: 65 mm (standard) / 80 mm (option)

• Turret stations: 15 (upper and right) / 12 (lower)

• Bar diameter: 65 mm (Standard) / 80 mm (Option)

• Axis stroke (2-turret):

  • Upper turret: X 220 mm, Z 770 mm, Y +/- 40 mm

  • Lower turret: X 200 mm, Z 770 mm, Y +/- 40 mm

  • Right spindle (Zs): 880 mm

• Maximum feed speed:

  • X axis: 24 m/min

  • Z axis: 36 m/min

  • Y axis: 12 m/min

• Live tooling motor: 14.0 kW max (4.8 kW continuous)

• Live tooling max speed: 4500 rpm

• Spindle positioning: C axis control (+/- 0.015 degrees)

Additional equipment

• Gantry loader capacity: 140 mm x 105 mm (3 jaw), up to 8.0 kg x 2 (option)

• Parts catcher capacity: 65 mm x 160 mm, 2.5 kg
