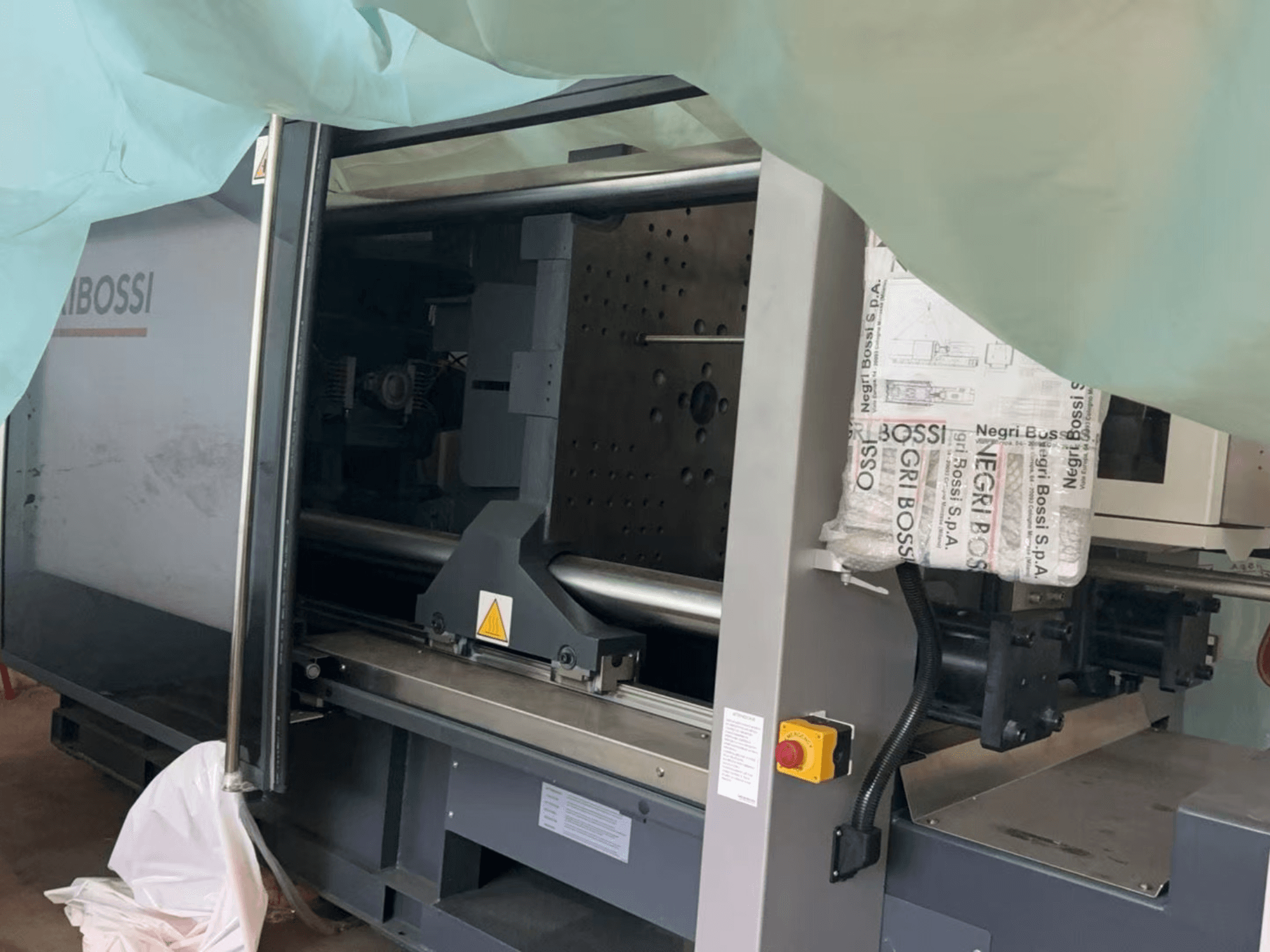

Electrical injection moulding machine manufactured in 2024. This Negri Bossi NOVA e350T H1550 features a screw diameter of 50 mm and a clamping force of 3500 kN. It offers a maximum mould opening stroke of 695 mm and a platen size of 1110 × 1200 mm. If you are looking to get high-quality injection moulding capabilities, consider the Negri Bossi NOVA e350T H1550 machine we have for sale. Contact us for further details regarding this machine.
Overview
- brand: Negri Bossi
- year: 2024
- MODEL: NOVA e350T H1550
- application type: Injection Moulding
- Location: Italy
- machine type: Electrical Injection Moulding Machine
Technical Information - Negri Bossi NOVA e350T H1550
Dimensions
- Machine Height: 2050 mm
- Machine Length: 8000 mm
- Machine Weight: 18500 kg
- Machine Width: 2210 mm
Technical Specification
- Clamping Force: 3500 kN
- Max. Shot Weight: 437 g
- Screw Diameter: 50 mm
Additional Information
Injection Unit (1550)
Screw L/D ratio: 20
Theoretical injection volume: 480 cm³
Injection speed: 300 mm/s
Injection rate: 588 cm³/s
Maximum pressure on material: 2100 bar
Holding pressure: 1100 bar
Screw torque: 900 Nm
Screw speed: 250 rpm
Plasticising capacity (PS): 56 g/s
Barrel heating zones: 5
Heating capacity: 36 kW
Nozzle contact force: 50 kN
Clamping Unit
Locking force: 3850 kN
Max. mould opening stroke: 695 mm
Min–Max mould height: 350–800 mm
Platen size: 1110 × 1200 mm
Tie bar spacing: 820 × 820 mm
Ejector force: 70 kN
Ejector stroke: 200 mm
Power
Total installed power: 216 kW
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
