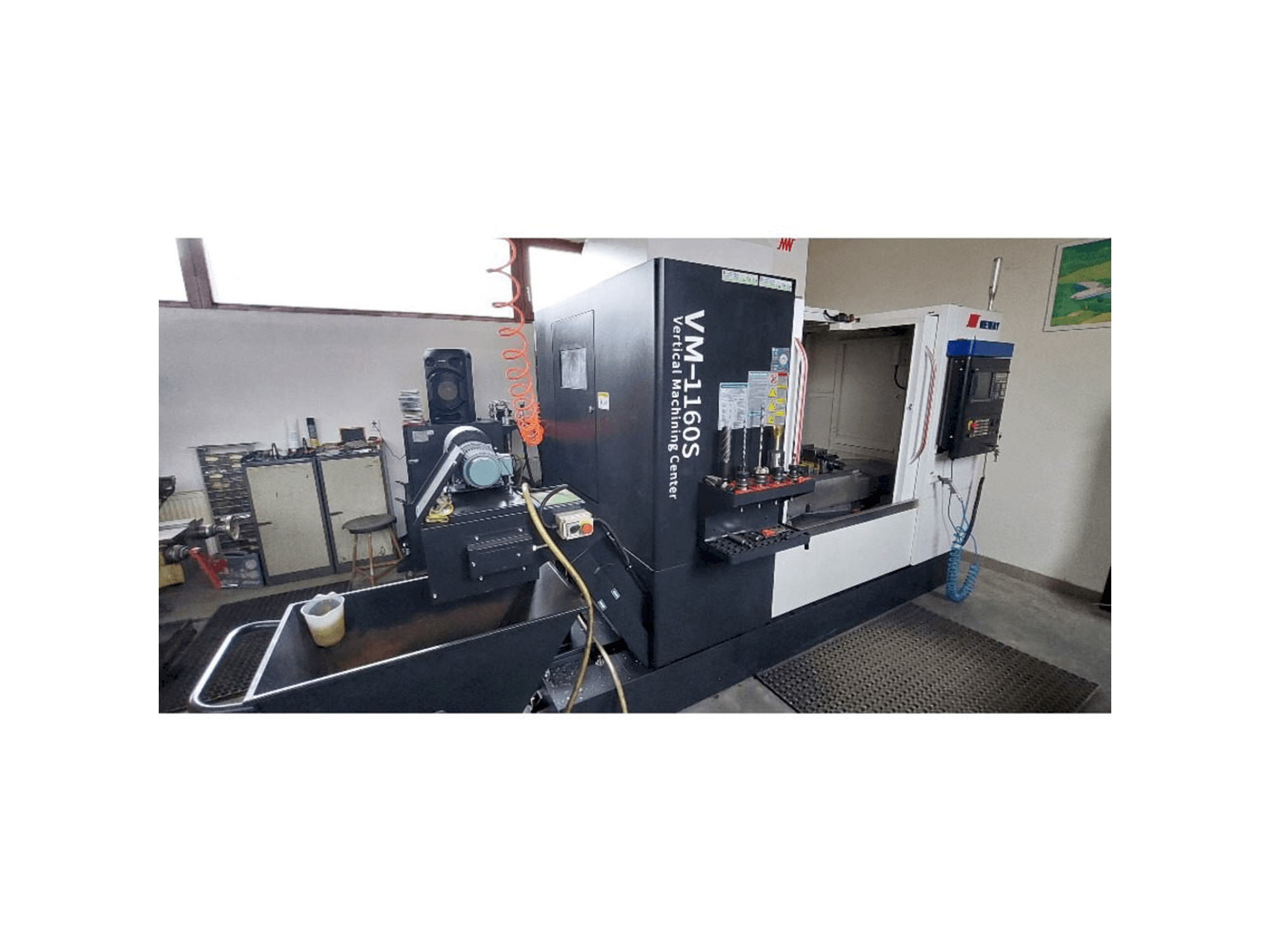

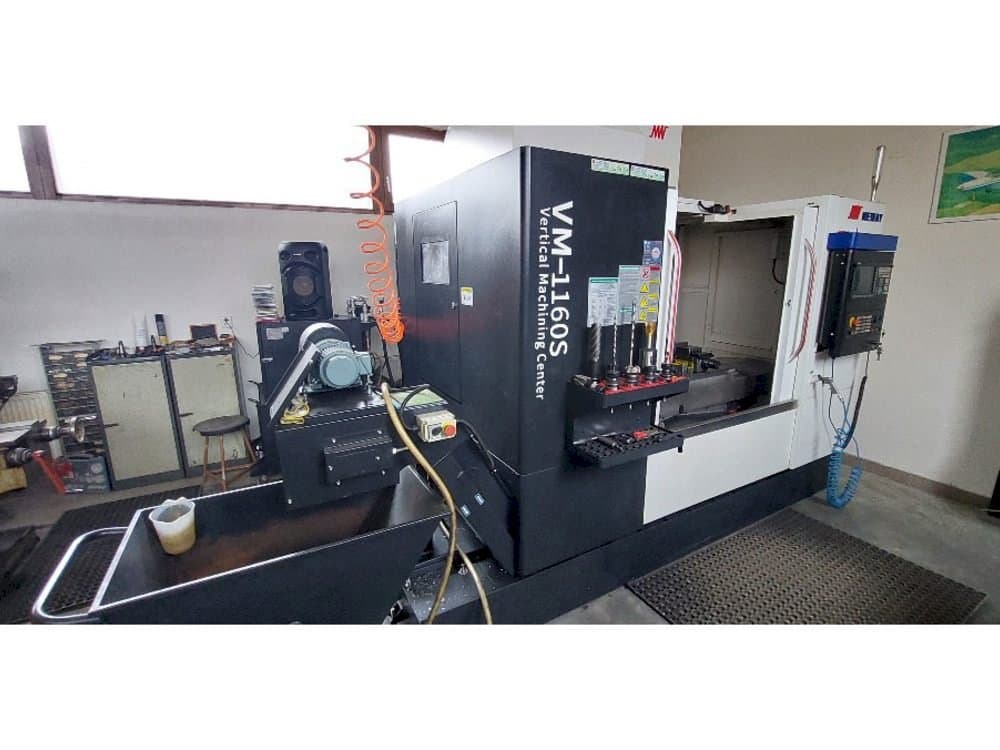

Front view of Neway VM 1160  machine

Neway - VM 1160CZ-MIL-NEW-2021-00001

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Neway VM 1160 Vertical Machining center was manufactured in the year 2021. It is equipped with a Siemens 828D control unit and has 3 axis. The machine has a spindle speed of 10000 rpm, is in excellent condition and only used of 6 months.

Overview

  • brand: Neway
  • year: 2021
  • MODEL: VM 1160
  • application type: Milling
  • Location: Czech Republic
  • machine type: Vertical Machining Centre
  • availability: Sold

Technical Information - Neway VM 1160

General Data

  • Measurements width: 2820 mm
  • Measurements depth: 2500 mm
  • Measurements height: 2830 mm
  • Machine weight: 7000 kg

Controller

  • Brand: Siemens
  • Model: 828D

Main drive

  • Number of spindles: 1
  • Spindle speed range: 10000 1/MIN
  • Number of axis: 3

Movement

  • X-AXIS Movement: 1000 mm
  • Y-AXIS Movement: 600 mm
  • Z-AXIS Movement: 580 mm

Workpiece

  • Workpiece weight: 750 kg

Table

  • Outer length: 1100 mm
  • Outer width: 600 mm

Tools

  • Slots in storage: 24
  • Max weight: 8 kg
  • Max tool diameter: 78 mm
  • Max tool length: 300 mm
  • Type of tool holder: BT40

Media

  • Chip conveyor: Yes
  • Internal cooling: Yes

    Additional Equipment

    • - 2 pcs hydraulic clamps

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Distance spindle-table 150-710 mm
        • - Rapid feedrate (x/y/z) 36/36/30 m/min.
        • - Spindle motor power 10 kw, 140 nm
        • - High pressure through spindle cooling 20 bar
        • - Remote hand wheel, usb port
        • - Washgun, airgun
        • - Blum probes tc52+zx speed
      • Qualitative Machine Benefits:
        • - Very good condition, only used for 6 months!
        • - Warranty until 12/2023

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
