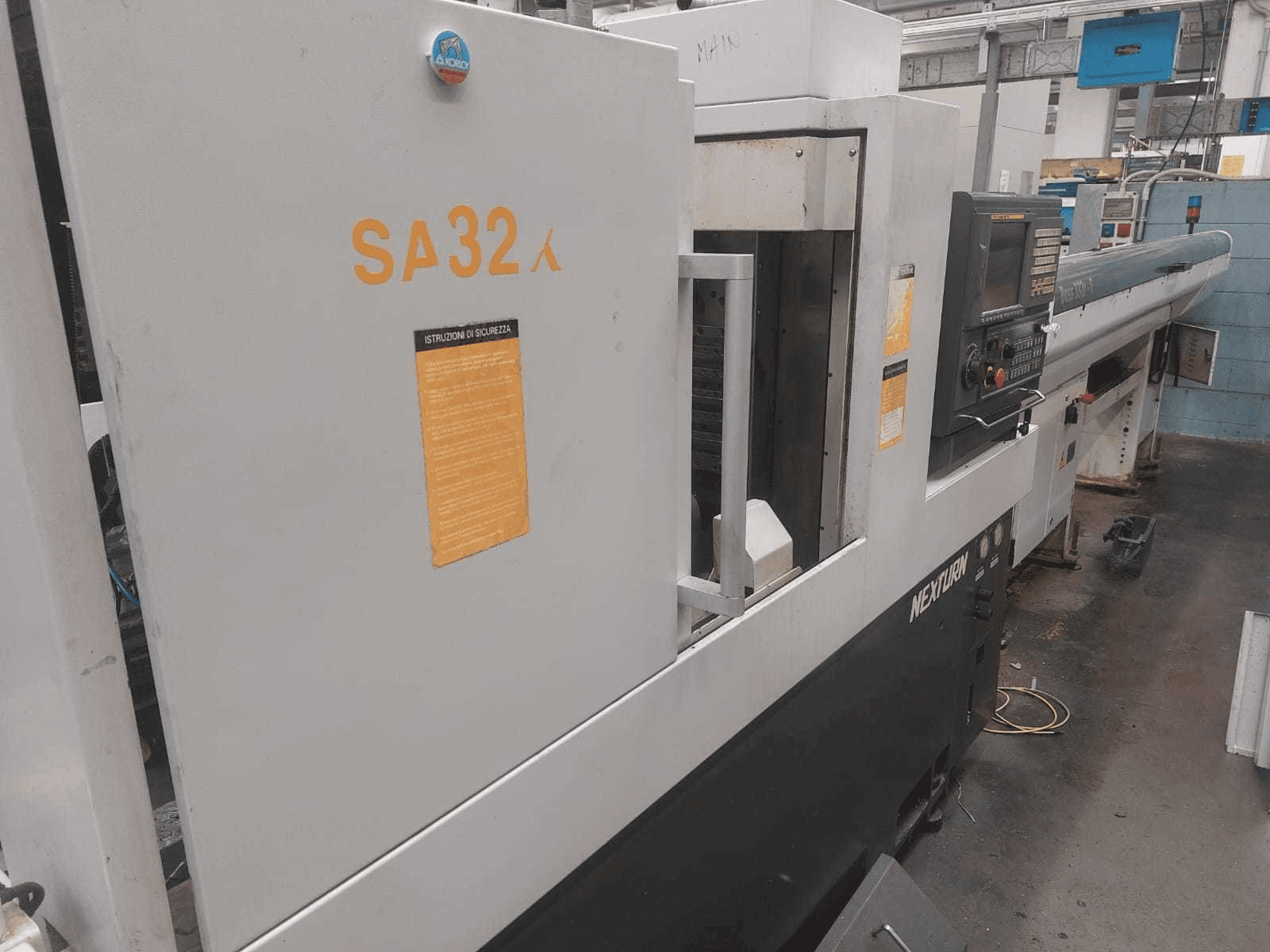

Left side view of Nexturn SA 32X  machine

Nexturn - SA 32XIT-TUR-NEX-2008-00001

52,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Nexturn SA 32X Swiss Type Turning machine was manufactured in the year 2008. It is equipped with a Fanuc Series 18i-TB control unit and has 8 controlled axis. The machine has a spindle speed of 8000 rpm.

Overview

  • brand: Nexturn
  • year: 2008
  • MODEL: SA 32X
  • application type: Turning
  • Location: Italy
  • machine type: Swiss Type Turning
  • availability: Immediately
  • control unit brand: Fanuc

Technical Information - Nexturn SA 32X

General Data

  • Measurements width: 2300 mm
  • Measurements depth: 1460 mm
  • Measurements height: 1750 mm
  • Machine weight: 3500 kg

Control Unit

  • Brand: Fanuc
  • Model: Series 18i-tb

Main drive

  • Spindle speed range: 8000 1/MIN
  • Number of axis: 8

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Max. Bar turning diameter. (mm) 32mm
      • - Max. Turning length (mm) 70mm
      • - Max. Main mirror drilling/guiding 12mm/m10
      • - Max. Counter mirror mounting diameter 26mm
      • - Max. Back tools drilling/tapping 10mm/m8
      • - Max. Drilling/tapping vertical tools 10mm/m8
      • - Max. Modular live tool disc-mill diameter
      • - Max. Main mirror revolution 8,000rpm
      • - Max. Opposite mirror revolution 8,000rpm
      • - Max. Era of vertical sets 6,000rpm
    • Qualitative Machine Benefits:
      • - Total number of teams 24(26)
      • - External diameter/vertical live tools/internal diameter tools od 5/cross2-4/id 5
      • - Pre-face sets, take-back sets 7,
      • - Tool size 16x120mm, fast idle motion 24mm/min
      • - Controlled axis 8
      • - Main mirror positioning cs+1/1000゜, opposite mirror positioning cs+1/1000゜
      • - Main mirror motor 7. 5/5. 5kw, counter mirror motor 3. 7/2. 2kw, vertical live tool engine 1. 0kw, back live teams engine 1. 0kw, cooling pump motor 0. 9kw, central lubrication pump motor 0. 04kw
      • - Cooling tank capacity 195l
      • - Center height 1000mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
