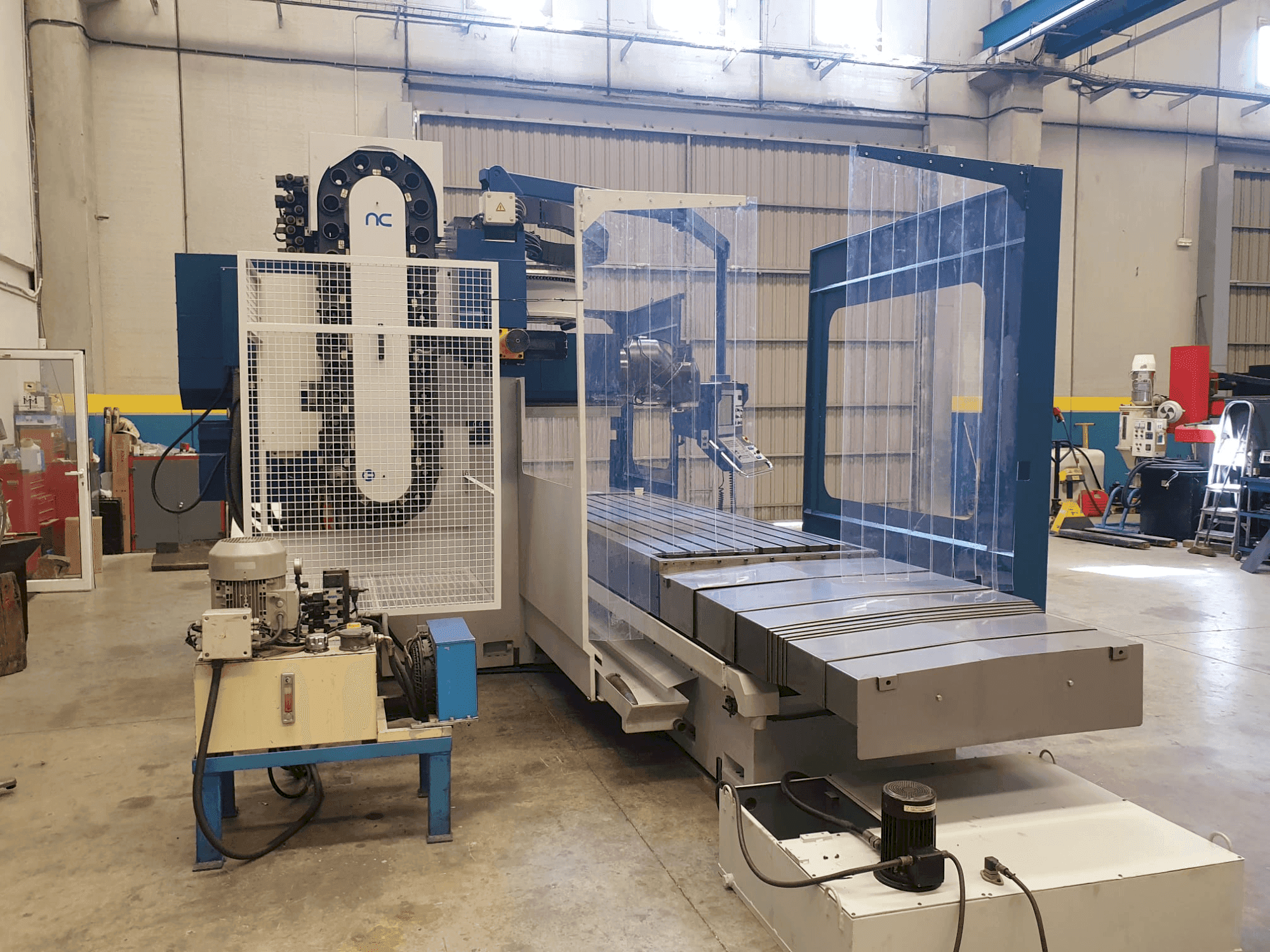

Front view of Nicolas Correa A30/30  machine

Nicolas Correa - A30/30ES-MIL-NIC-2000-00003

145,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 5-axis Nicolas Correa A30/30 was manufactured in 2000. It features a large table surface area of 3,500 x 1,000 mm, capable of handling a maximum load of 8,000 kg. The spindle motor power is robust at 29.6 kW, complemented by rapid traverses up to 10,000 mm/min for efficient machining. Ideal for heavy-duty milling, the Nicolas Correa A30/30 machine we have for sale is a valuable addition to any workshop. Contact us for further details.

Overview

  • brand: Nicolas Correa
  • year: 2000
  • MODEL: A30/30
  • application type: Milling
  • Location: Spain
  • machine type: CNC Milling Machine
  • availability: Immediately

Technical Information - Nicolas Correa A30/30

General Data

  • Machine weight: 22000 kg

Main drive

  • Number of spindles: 1
  • Spindle speed range: 3000 RPM 1/MIN
  • Spindle motor power: 29.6 kW
  • Tool taper: ISO-50
  • Number of axis: 5

Movement

  • X-AXIS Movement: 3000 mm
  • Y-AXIS Movement: 1200 mm
  • Z-AXIS Movement: 1000 mm (Option for 2000 mm)

Table

  • Outer length: 3500 mm
  • Outer width: 1000 mm
  • TSlots size: 8 x 22 mm
  • Distance between: 125 mm
  • Table load: 8000 kg

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Diameter of front bearing: 100 mm
      • - Feed range: 2-5000 mm/min
      • - Rapid traverse x, y, z: 10000 mm/min
      • - Feed motors: 37 kw

    Extra information

    • - Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Borja Garcia

Borja Garcia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
