OHTORI KIKO OSU 545

Photo Gallery

SOLD

OHTORI KIKO - OSU 545

2000

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

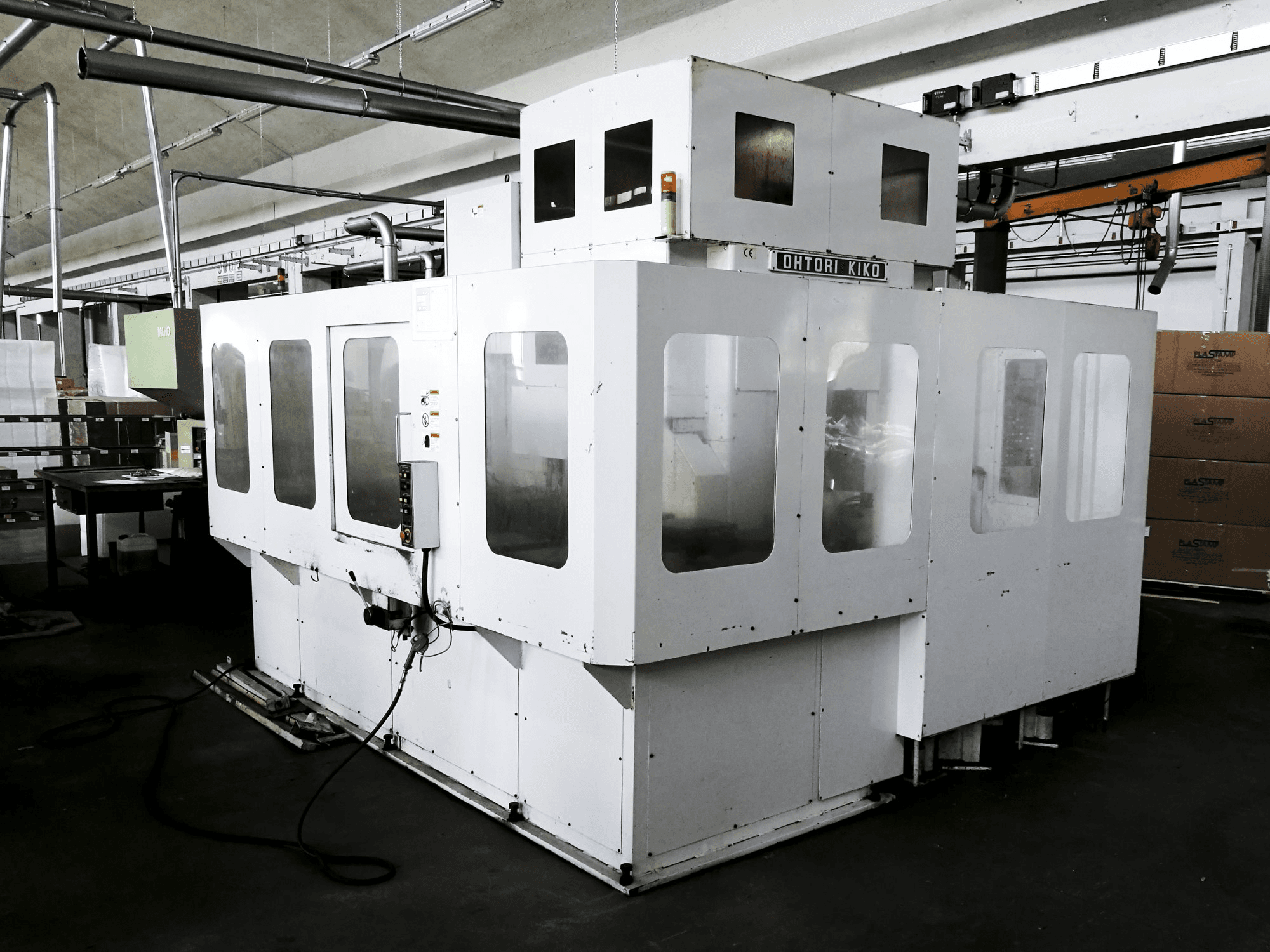

OHTORI KIKO OSU 545 Machining Center

Show in original language

This OHTORI KIKO OSU 545 Machining Center manufactured in the year 2000 has a production history of 70720 working hours. This well-equipped machine comes with a FANUC Series 15-M control unit with remote control, a 14x pallet changer and a 60x tool changer that allows high automation tasks. In the past, this OSU 545 has been working mostly with steel for textile machinery parts.

Overview

brand: OHTORI KIKO
year: 2000
MODEL: OSU 545
production hours: 70720
application type: Milling
Location: Italy
machine type: Machining centers (universal)
availability: Sold
control unit brand: FANUC
GINDUMAC ID: IT-MIL-OHT-2000-00001

Technical Information

General Data

Measurements width: 3915 mm
Measurements depth: 3835 mm
Measurements height: 3145 mm
Machine weight: 12300 kg

Control Unit

Brand: FANUC
Model: Series 15-M
Remote control: Yes

Main drive

Number of spindles: 1
Spindle speed range: 60-6000 1/min
Tool taper: ISO 40

Movement

X-AXIS Movement: 460 mm
X-AXIS Working Feed: 4000 mm/min
X-AXIS Rapid traverse: 20 m/min
Y-AXIS Movement: 400 mm
Y-AXIS Working Feed: 4000 mm/min
Y-AXIS Rapid traverse: 20 m/min
Z-AXIS Movement: 400 mm
Z-AXIS Working Feed: 4000 mm/min
Z-AXIS Rapid traverse: 16 m/min
A-AXIS Movement: -90° - +120° MM
A-AXIS Working Feed: 6.5 rpm
A-AXIS Rapid traverse: 15 rpm
C-AXIS Movement: 360 ° MM
C-AXIS Working Feed: 10 rpm
C-AXIS Rapid traverse: 25 rpm

Workpiece

Workpiece weight: 80 kg

Table

Outer length: 315 mm
Outer width: 315 mm

Tools

Slots in storage: 180
Max weight: 6 kg
Max tool diameter: 110 mm
Max tool length: 240 mm

Media

Main electronic connection: 200 V / 50 Hz
Power consumption: 46 kVA
Air pressure: 6 bar

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
