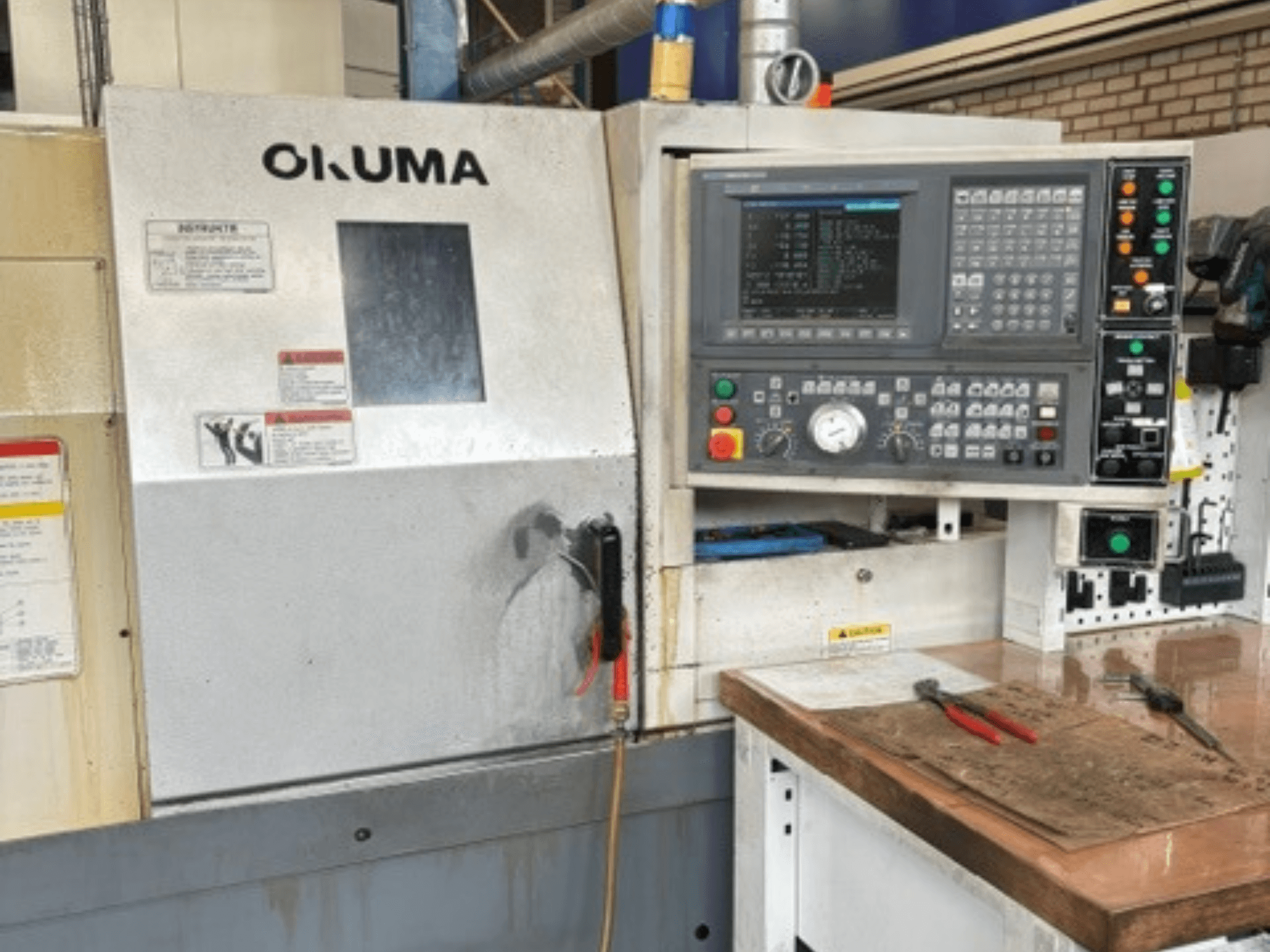

Horizontal turning machine manufactured in 2008. This Okuma ES-L10II features a maximum turning diameter of 390 mm and a maximum turning length of 500 mm. It is equipped with a 10" chuck and a robust Okuma MQ Turret with 12 stations. If you are looking to get high-quality turning capabilities, consider the Okuma ES-L10II machine we have for sale. Contact us for further details regarding this machine.
Overview
- brand: Okuma
- year: 2008
- MODEL: ES-L10II
- application type: Turning
- Location: Netherlands
- machine type: Horizontal Turning Machine
- control unit brand: OKUMA
Technical Information - Okuma ES-L10II
Control Unit
- Control Brand: OKUMA
- Control Model: OSP U10L
Movement
- Number of Axes: 2
- X-axis Travel: 450 mm
- Z-axis Travel: 520 mm
Technical Specification
- Counter Spindle: Yes
- Driven Tools: No
- Spindle Power: 15 kW
- Spindle Speed: 3000 RPM
Additional Information
Working capacity:
Max swing over bed: 520 mm
Max swing over cross slide: 450 mm
Max turning diameter: 390 mm
Max turning length: 500 mm
Rapid traverse: X 20 m/min, Z 25 m/min
Main spindle:
Spindle bore: 80 mm
Speed range: 50–3,000 rpm
Gear ranges: 2 automatic
Max spindle torque: 416.9 Nm
Spindle motor power: 20 kW (continuous), max power at 251 rpm
Chuck: 254 mm (10"), through‑hole Ø70 mm
Spindle nose: JIS A2-8
Turret:
Type: Okuma MQ turret
Stations: 12
Tool shank size: 25 × 25 mm
Boring bar capacity: Ø40 mm
Indexing time: 0.1 s per station
Clamping force: 4,000 kg
CNC control:
Okuma OSP-U10L
10.4" TFT colour display
NC Operating Monitor
Cycle Time Reduction Function
Three-colour machine status indicator
Option included in quotation:
15 kW high-torque spindle, 25–3,000 rpm, max torque 570.7 Nm
Additional equipment
Chip conveyor
Automatic coolant system (0.25 kW)
Tool kit
Instruction and spare parts manual
Dutch operating manual
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
