Okuma LB 3000 EX

Photo Gallery

Okuma - LB 3000 EXIT-TUR-OKU-2008-00002

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

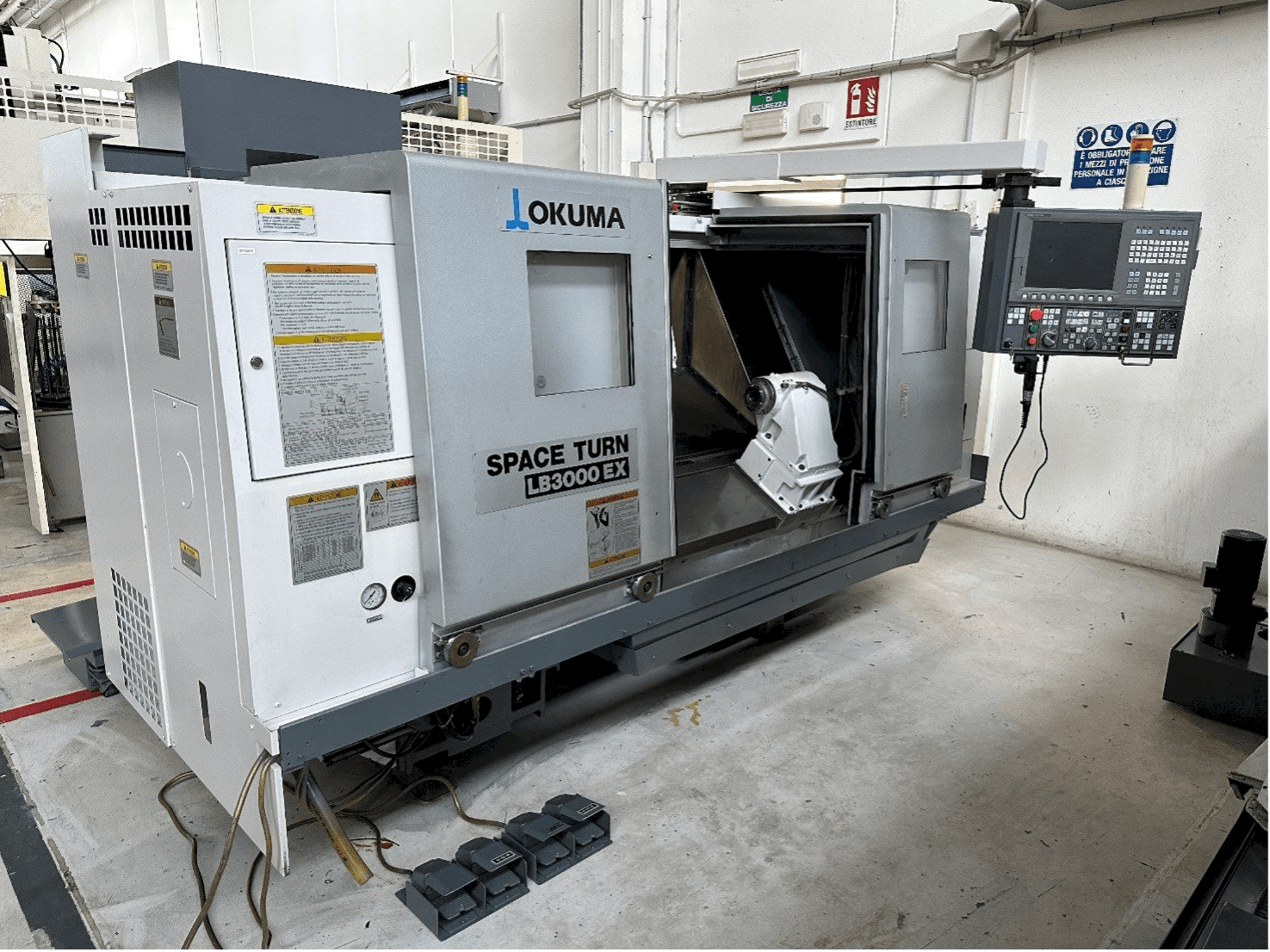

OKUMA LB 3000 EX Lathe

Show in original language

This OKUMA LB 3000 EX Lathe was manufactured in the year 2008 and has 37498 production hours, of which 9646 are spindle hours. It is equipped with an Okuma OSP-P200L control unit. The machine has a spindle speed of 4200 rpm.

Overview

brand: Okuma
year: 2008
MODEL: LB 3000 EX
production hours: 37498
application type: Turning
Location: Italy
machine type: Horizontal Turning Machine
control unit brand: OKUMA

Technical Information - Okuma LB 3000 EX

General Data

Measurements width: 3310 mm
Measurements depth: 1900 mm
Measurements height: 1970 mm
Machine weight: 6100 kg

Control Unit

Model: OSP-P200L
Brand: OKUMA

Main drive

Spindle speed range: 4200 1/MIN
Spindle motor power: 30 KW

Movement

X-AXIS Movement: 260 MM
Z-AXIS Movement: 1065 MM

Additional Information

Machine Benefits

Qualitative Machine Benefits

Rapid feed for x-z axes m/min. 25-30
Motor power x-z axis drive kw bl 2,8/bl 3,5
X axis push kgf 780, z axis push kgf 560, automatic doors, ready for robot, i blow air
X-z axis activation screws dia. /pitch mm. 30-40/16, x-z axis positioning precision mm. 0,01/100 – 0,015/300
Positioning repeatability x-z axis +/- mm. 0,001-0,002, stations p/tools n. 12
Okuma original tool attachment, index time (1 position) sec. 0,14, index time (6 position) sec. 0,40
Power stations / tools n. 12, maximum torque available nm 40. 4, maximum power available kw 7,1/4,1
Rpm range g/min. 45-6000, tailstock slide stroke 1015 mm
Attachment cone cm n. 5 (4), maximum admitted push kn 5 (7. 5)
Self-centering dia. 250 autoblok, static tools kit, n. 2 p/axial motorized tools, n. 2 p/radial motorized tools

Technical Machine Benefits

Distance between centers 1020 mm.
Dia. Max rotating on the guards 580 mm.
Dia. Rotary between the centers 470 mm.
Dia. Max turning with std. Tools motorized 340 mm
Spindle attachment asa-a2
Dia. Front bearing 140 mm.
Dia. Spindle hole 91 mm.
Dia. Useful bar passage (with p/clipper) 80 mm.
Continuously variable rpm ranges 2
Maximum torque available nm 700

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
