Thank you for your visit
This machine was recently sold. Take a look at similar options or get in touch with us directly.
Okuma - LB 300IT-TUR-OKU-2012-00001
Sold
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
Click to chat on WhatsApp
- GINDUMAC
- Products
- Machine Tools
- ➤ Used Okuma LB 300 Lathe
Show in original language

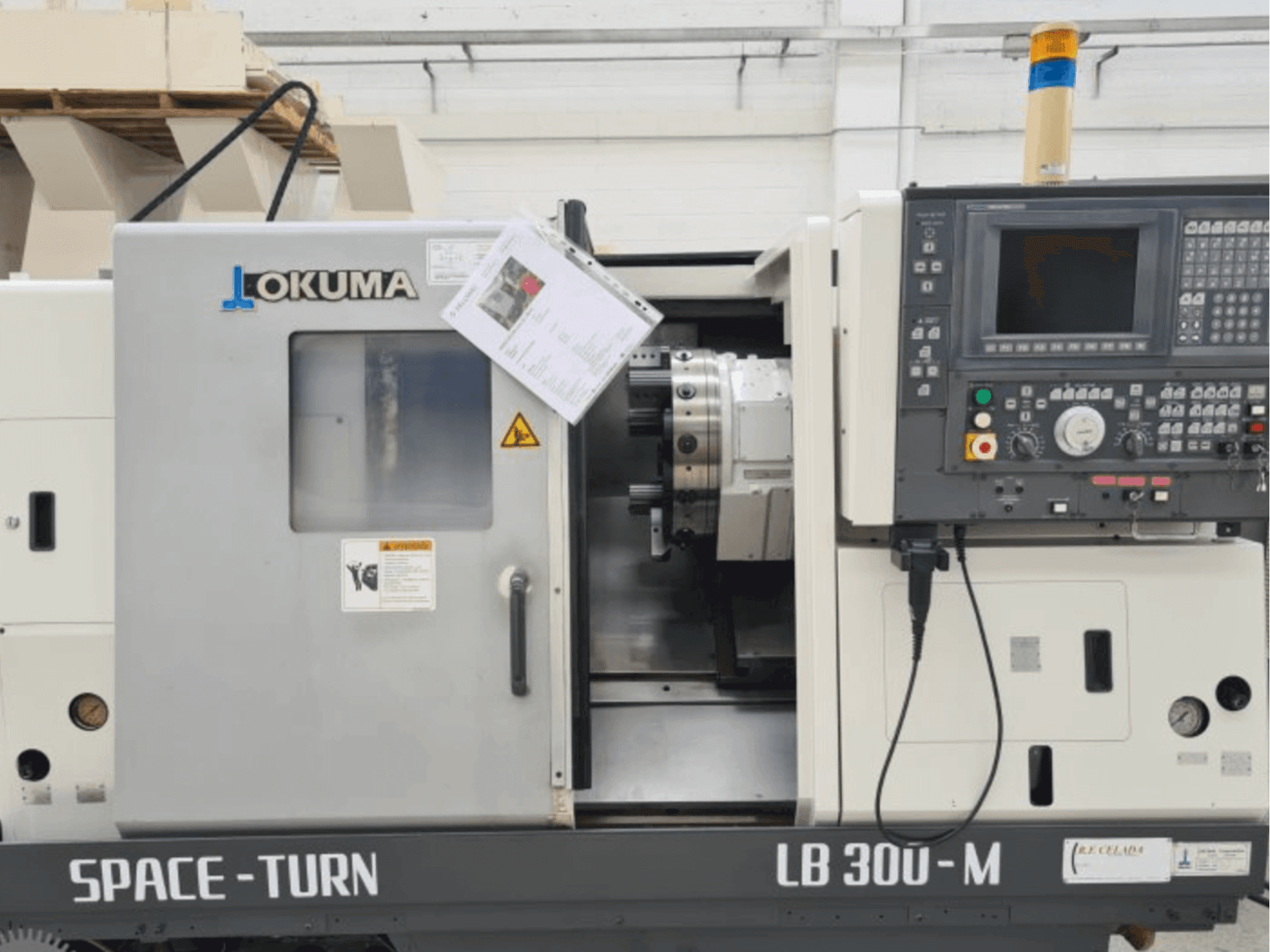

This Okuma LB 300 Lathe was manufactured in the year 2012. It is equipped with an Okuma OSP U100L control unit. The machine has a spindle speed of 45-3800 rpm and 6202 cutting hours.
Overview
- brand: Okuma
- year: 2012
- MODEL: LB 300
- production hours: 6202
- application type: Turning
- Location: Italy
- machine type: Horizontal Turning Machine
- control unit brand: OKUMA
Technical Information - Okuma LB 300
Control Unit
- Control Brand: OKUMA
- Control Model: OSP U100L
Movement
- C-axis: 360°
- X-axis Travel: 280 mm
- Z-axis Travel: 500 mm
Technical Specification
- Spindle Speed: 3800 RPM
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Vdi 40 turret
- Kitagawa b208 chuck
- Chip conveyor
- I blow air
- Robot interface
- High pressure refrigeration pump
- Automatic door
- Various turning tool holder kits (for external and internal)
- 4 radial driven tools ~ 4 axial driven tools
Technical Machine Benefits
- Max diam. Turning 340 mm
- Max turning length 480 mm
- Distance between centers 500 mm
- Incremental x z axes from 0. 001 to 1. 000 mm
- Asa 8 spindle
- Bar passage diameter 65 mm
- 2 electronic ranges
- Motorized tool revolutions 45-4500 rpm, speed 2 ac power 3. 3 kw
- Turret type: v 12 ncm, stations 12, square tool section 25 mm, bar section 40 mm
- Tailstock: sleeve diameter 90 mm, steerer travel 120 mm ,mt5 steerer attachment
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
