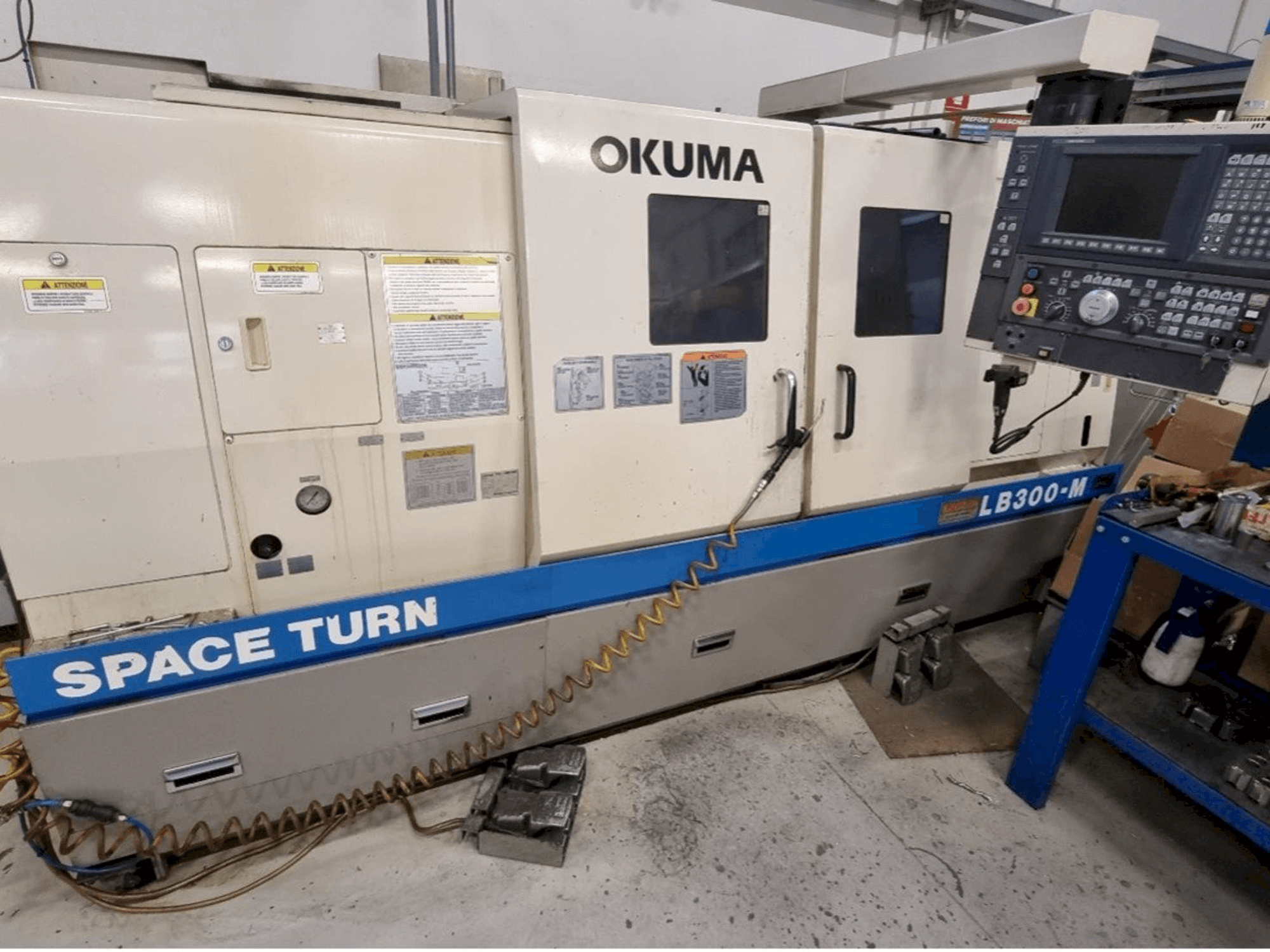

OKUMA LB 300M Lathe

Show in original language

This OKUMA LB 300M Lathe was manufactured in the year 2001. It is equipped with an Okuma OSP-U100L control unit and has 45-4500 rpm, is in very good condition and well maintained.

Overview

brand: Okuma
year: 2001
MODEL: LB 300M
application type: Turning
Location: Italy
machine type: Horizontal Turning Machine
control unit brand: OKUMA

Technical Information - Okuma LB 300M

General Data

Measurements width: 3310 mm
Measurements depth: 1900 mm
Measurements height: 1930 mm
Machine weight: 5900 KG

Control Unit

Model: OSP U100L
Brand: OKUMA

Main drive

Spindle speed range: 45-4500 1/MIN

Movement

X-AXIS Movement: 260 MM
X-AXIS Rapid traverse: 20-25 M/MIN
Z-AXIS Movement: 1020 MM

Media

Power consumption: 28.16 kVa

Additional Information

Machine Benefits

Qualitative Machine Benefits

Screws activation axis x – z dia. /pitch 32-40/16 mm, x, z axis positioning precision mm. 0,01/100 – 0,15/300, positioning repeatability x – z axis +/- 0. 001 – 0. 002 mm,
Turret for tools, station p/tools n. 12, attachment for vdi tools-mm. 40,
Index time (1 position) sec. 0,1, index time (6 position) sec. 0,36, rotary tools drive, , station for motorizable tools n. 12
Max power available kw 7/3. 3, max torque available nw 23. 7,
Tailstock, dia. 90 mm post, post stroke mm. 120
Cone attachment cm n. 5, maximum thrust allowed kfg 500,
Chips conveyor with exhaust belt right, tailstock
Autoc. Dia. 210mm.
Manual presetting
Static and motorized tool holders

Technical Machine Benefits

Distance between the points 1020 mm.
Dia. Max rotating on the guards 530 mm.
Dia. Rotating between points 420 mm.
Dia. Max turning with std. Tools 340mm.
Spindle attachment asa 6”
Dia. Useful bar passage 52
Max power available kw 15/11
Motor power x – z axis drive kw bl 3,0/bl 4,0
X-axis push kfg 660
Z axis push kfg 640

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
