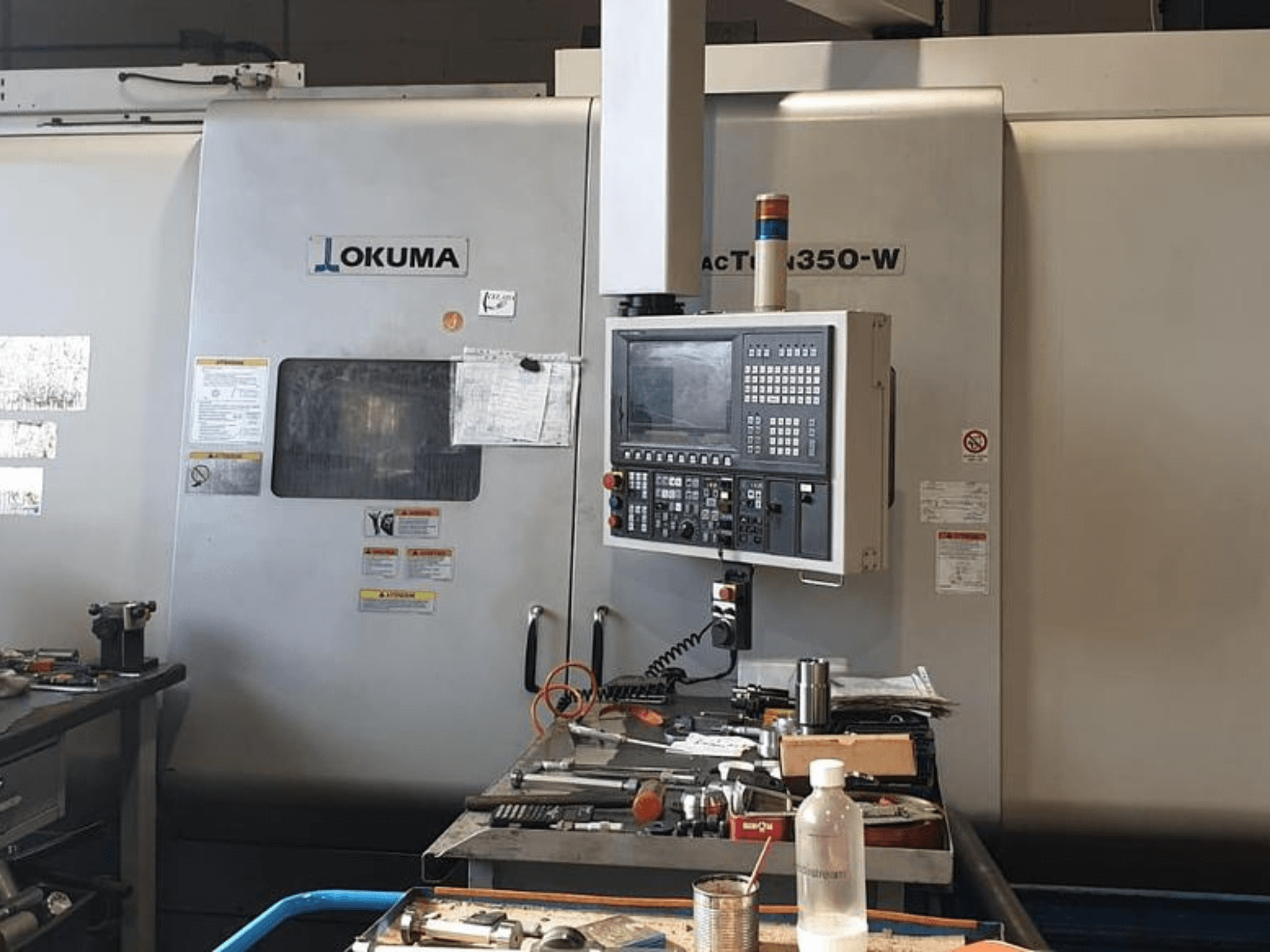

Okuma MAC TURN 350-W turn-mill center, front view with control panel and workspace cluttered with tools and a bottle.
Okuma MAC TURN 350-W turn-mill center, front view with control panel and workspace cluttered with tools and a bottle.

Okuma - MAC TURN 350-WIT-TUR-OKU-2011-00002

190,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 9-axis Okuma MAC TURN 350-W was manufactured in 2011. It features a maximum turning diameter of 550 mm and a distance between centers of 1500 mm. The machine is equipped with a powerful main spindle and sub-spindle, both capable of 3800 rpm, and a milling spindle speed of 12,000 rpm. If you are looking to get high-quality turning and milling capabilities, consider the Okuma MAC TURN 350-W turn-mill centre we have for sale. Contact us for further details.

Overview

  • brand: Okuma
  • year: 2011
  • MODEL: MAC TURN 350-W
  • application type: Turning
  • Location: Italy
  • machine type: Turn-Mill Centre

Technical Information - Okuma MAC TURN 350-W

Dimensions

  • Machine Height: 2950 mm
  • Machine Length: 5110 mm
  • Machine Weight: 13700 kg
  • Machine Width: 2960 mm

Movement

  • Number of Axes: 9
  • X-axis Travel: 1670 mm
  • Y-axis Travel: 505 mm
  • Z-axis Travel: 190 mm

Technical Specification

  • Counter Spindle: No
  • Driven Tools: No
  • Spindle Power: 22 kW
  • Spindle Speed: 3800 RPM

Additional Information

  • Control unit: OKUMA OSP P200L-H

    • Included control options: Collision Avoidance System (CAS), One Touch IGF, Helical Interpolation

  • Distance between centers: 1500 mm

  • Max swing diameter over covers: 550 mm

  • Max turning diameter: 550 mm

  • Bar capacity: 75 mm

  • Main spindle:

    • Attachment: ASA 8" Big Bore

  • Sub-spindle:

    • Attachment: ASA 8 Super Big Bore

    • Speed: 3800 rpm

    • Power: 22/15 kW

  • Milling spindle:

    • Taper: HSK A63

    • Speed: 12,000 rpm

    • Power: 11 kW

  • Tooling:

    • Tool magazine: 44 positions

    • Lower turret: 12 positions with motorized tools

  • Axes:

    • Axis travels: 1670 mm / 1655 mm; 505 mm / 210 mm; 190 mm

    • B-axis: Continuous 210°

    • C-axis: 360,000 divisions

  • Coolant/pump pressure: 15 bar

  • Working hours (as provided):

    • 30870: 8:15

    • 13909:49:34

    • 6594: 8:59

    • 9497:37:03

Additional equipment

  • Chip conveyor

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
