- ➤ Used ONA QX4 - Die-Sinking EDM For Sale | gindumac.com

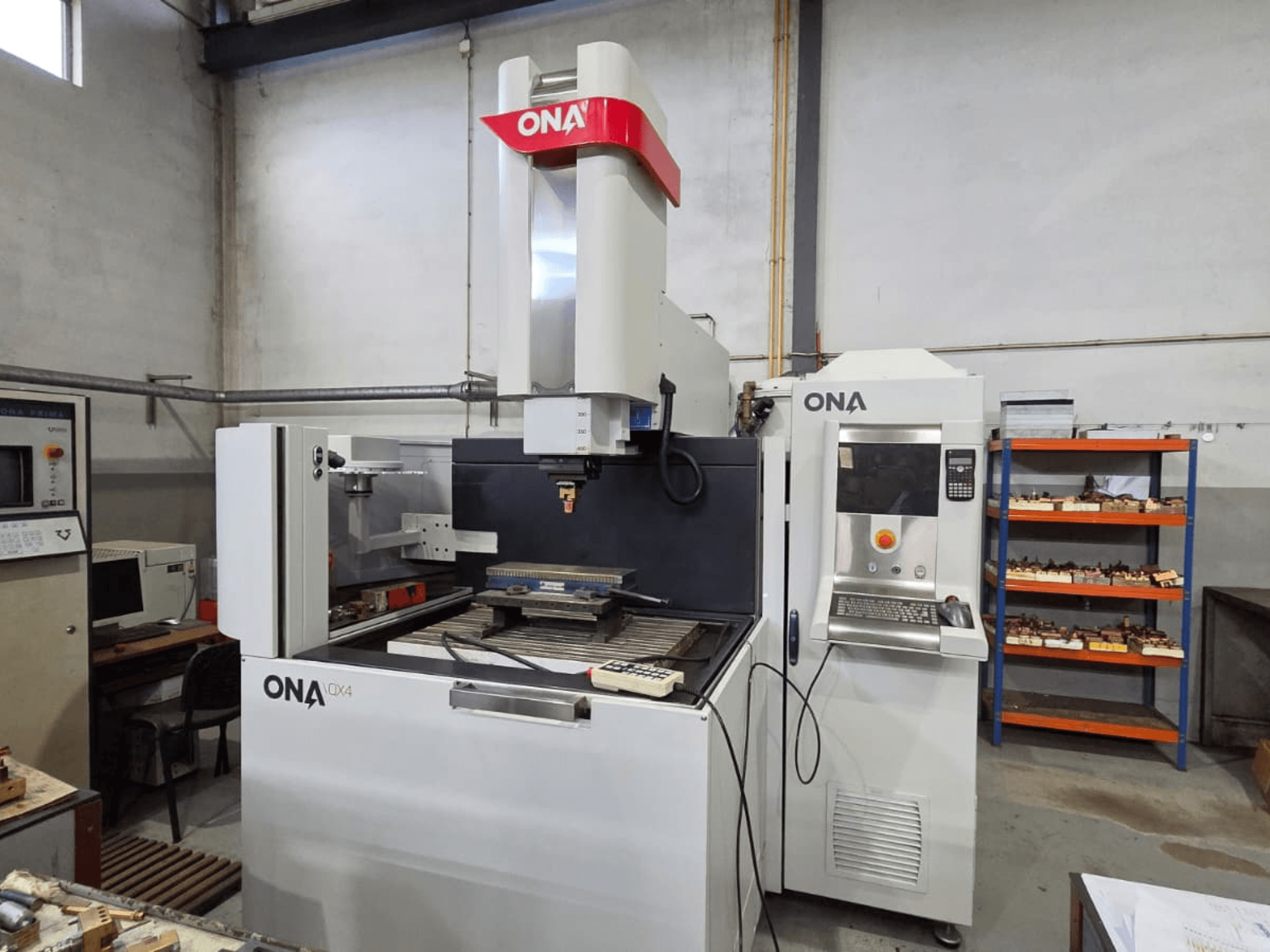

This 3-axis ONA QX4 die-sinking EDM machine was manufactured in 2017. It features an X-axis travel of 600 mm, Y-axis travel of 400 mm, and Z-axis travel of 400 mm. The work tank dimensions are 1060 x 750 x 480 mm, accommodating a maximum workpiece weight of 1500 kg. If you are looking to get high-quality die-sinking capabilities, consider the ONA QX4 machine we have for sale. Contact us for further details.
Overview
- brand: ONA
- year: 2017
- MODEL: QX4
- application type: EDM
- Location: Portugal
- machine type: Die-Sinking EDM Machine
Technical Information - ONA QX4
Dimensions
- Machine Weight: 4350 kg
Movement
- Number of Axes: 3
- X-axis Travel: 600 mm
- Y-axis Travel: 400 mm
- Z-axis Travel: 400 mm
Additional Information
Work tank dimensions (L x W x H): 1060 x 750 x 480 mm
Maximum workpiece weight: 1500 kg
Maximum electrode weight: 100 kg
Distance table to headstock: 200–600 mm
Voltage: 400 V
Frequency: 50 Hz
Current: 25.8 A
Power: 17.9 kVA
Minimum air supply: 6 bar
Generator unit weight: 350 kg
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
