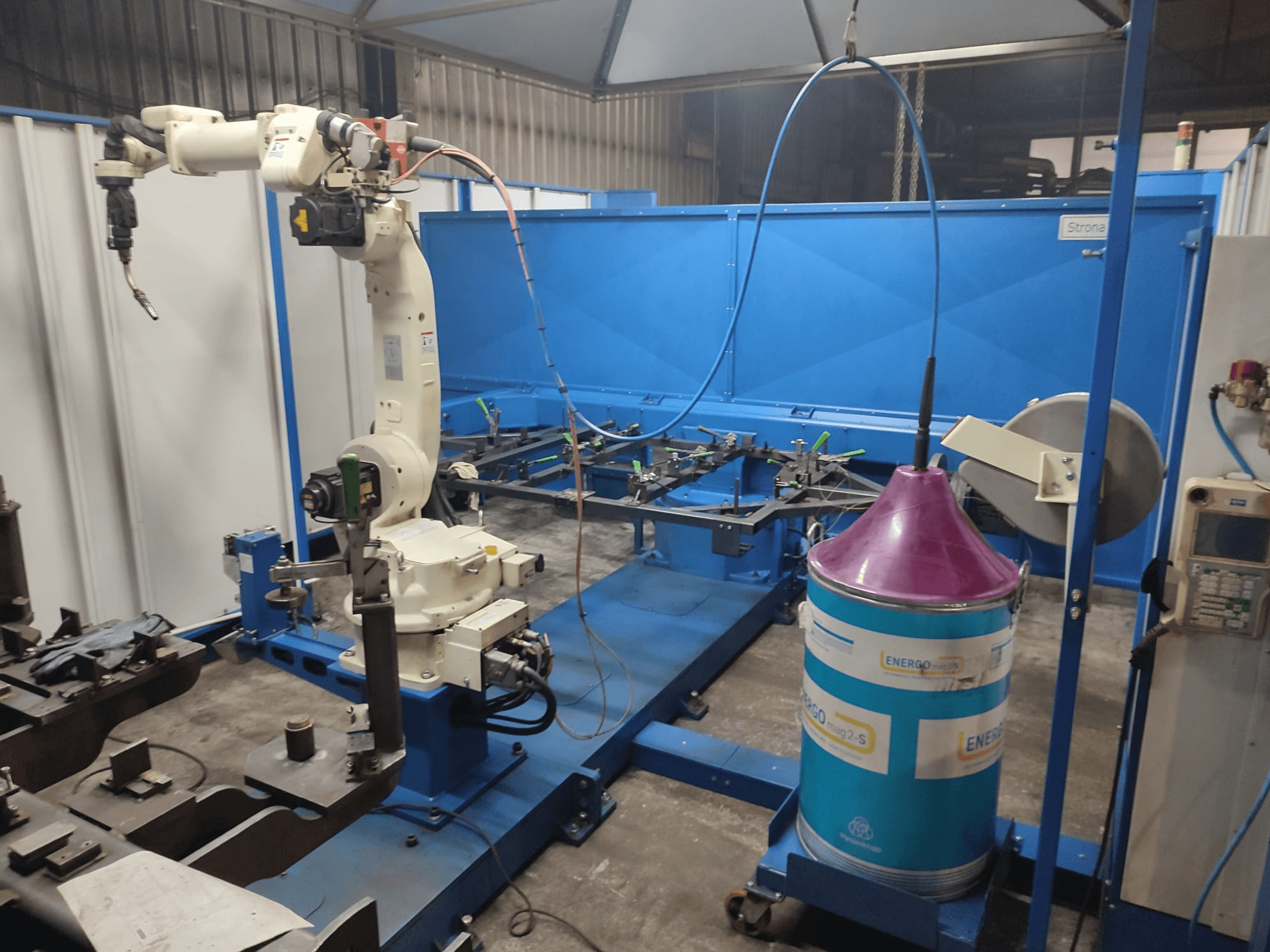

Industrial robotic arm with a white and blue base, setup in a workshop with a blue work surface and metallic components.
Industrial robotic arm with a white and blue base, setup in a workshop with a blue work surface and metallic components.

OTC Daihen - FD-B6L Robotic Welding CellPL-WEL-OTC-2018-00001

95,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 6-axis OTC Daihen FD-B6L Robotic Welding Cell was manufactured in 2018. It features a six-axis welding robot with a working range of 2008 mm, four welding tables, and two positioners. The system includes a digital, synergic WB-P500L welding power source and supports MIG/MAG welding. SYNCHROMOTION technology allows synchronous welding with positioner movement. The setup is designed for high productivity and continuous operation. Contact us for more information about this machine.

Overview

  • brand: OTC Daihen
  • year: 2018
  • MODEL: FD-B6L Robotic Welding Cell
  • production hours: 1000
  • application type: Welding
  • Location: Poland
  • machine type: Welding Robot

Additional Information

  • Robot Controller: FD-11

  • Teaching Pendant: Original teach pendant

  • Programming and Operation: Single, unified interface

  • Axes: 6

  • Working Range: 2008 mm

  • Number of Positioners: 2 pcs

  • Number of Worktables: 4 welding tables

  • Oscillating Rotation of Positioner Arms: 180°

  • Additional Workpiece Rotation Axes: 360°

  • Welding Methods: DC, DC Pulse, DC Wave Pulse

  • Functions: Dynamic parameter changes during welding, smooth parameter transitions without arc extinction

  • Dimensions of Machine (LxWxH): 4.5 m x 9.0 m

  • Structure and Enclosure: Common metal station platform with integrated cable channels, full safety enclosure with protective panels and service doors

  • Welding Power Source Model: Digital, synergic power source, fully integrated with the robot controller

  • Welding Equipment: Welding torch, wire feeder, welding cable package, automatic torch cleaning station

  • Software: SYNCHROMOTION (synchronous welding with positioner movement)

  • Technical Condition: Very good

  • Status: Connected, on-site testing possible

  • Work Cycle: Parallel operation with welding on one pair of tables and simultaneous loading/unloading on the second pair. Continuous operation, high productivity, short cycle times.

This robotic welding cell offers a comprehensive welding solution with its advanced control system, robust safety features, and efficient work cycle management, suitable for high productivity environments.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
