- ➤ Used MSC Chemnitz BFT90/5 MSC | Boring Machine

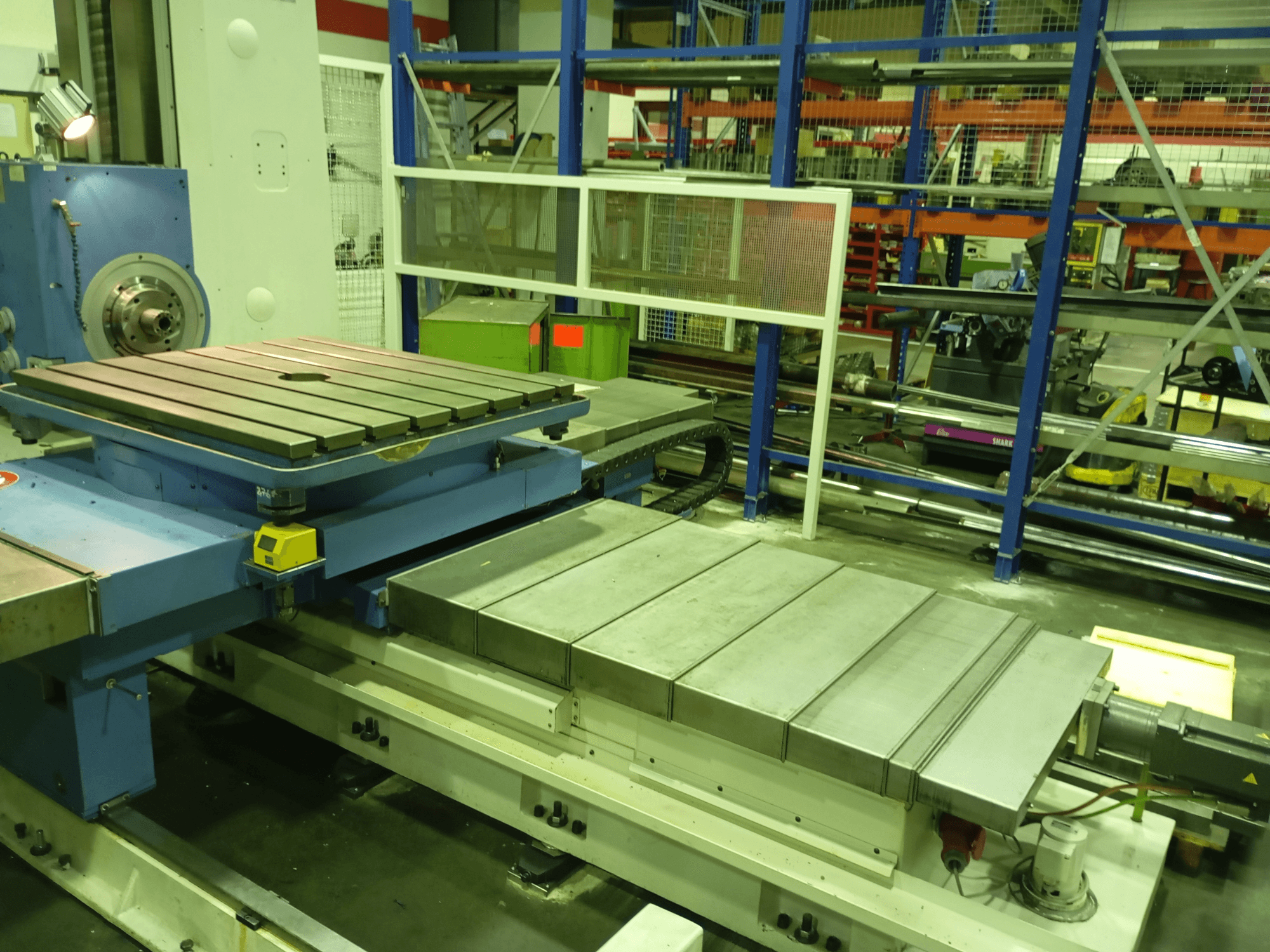

This 5-axis MSC Chemnitz BFT90/5 MSC boring machine was manufactured in 2009. It features a substantial table size of 1000 x 1120 mm with a maximum table load of 2.5 t. The machine offers impressive feed rates of 4000 mm/min and a spindle speed range of 4 – 1600 rpm. If you are looking to get high-quality boring capabilities, consider the MSC Chemnitz BFT90/5 MSC machine we have for sale. Contact us for further details.
Overview
- brand: Other
- year: 2009
- MODEL: BFT 90/5 TNC 320
- production hours: 3093
- application type: Other Machine Tools
- Location: Germany
- machine type: Boring Machine (Metal)
- control unit brand: HEIDENHAIN
Technical Information - Other BFT 90/5 TNC 320
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: TNC 320
Dimensions
- Machine Height: 3160 mm
- Machine Length: 5800 mm
- Machine Weight: 8900 kg
- Machine Width: 3400 mm
- Table Load: 2500 kg
Movement
- Number of Axes: 5
- X-axis Travel: 1000 mm
- Y-axis Travel: 1000 mm
- Z-axis Travel: 1800 mm
Technical Specification
- Spindle Speed: 1600 RPM
- Taper Size: SK 40
Additional Information
Table size: 1000 x 1120 mm
B axis (table rotation): 360°
Feed rate (X/Y/Z): 4000 mm/min
Spindle diameter: 90 mm
W axis travel: 710 mm
Control cabinet dimensions (L x W x H): 2.0 x 0.75 x 2.0 m
Temperature range: 15–40 °C
Electrical: 3-phase/50 Hz; 380 V rated voltage; 24 V control voltage
Connected load: 40 kW
Fuse rated current: 100 A
Typical power consumption: approx. 7.5 kW
Spindle running time: 3069 h
Power-on hours: 10402 h
General overhaul: 2009
General Information Retrofit
Retrofit includes:
Control system: TNC 320
New drives in all axes
New table
New clamping system
New media units
New hand control unit
New coolant system
New hydraulic unit
30 measuring scales (linear measurement systems)
Control manufacturer: SK 40
CNC control: TNC 320
Complete electrical retrofit
New wiring throughout the machine
Integration of CNC system (TNC 320)
New inputs and outputs (I/O)
New sensors and measuring systems
Updated control circuits and safety circuits
Modern CNC control system
Improved accuracy due to new measuring systems
Higher reliability
Better performance due to new drives
Reduced downtime due to new auxiliary units
New electrical documentation
Updated schematics
Includes systems for power supply, control, machine interface, operator panel, and drives
Machine base remains:
MSC Chemnitz table boring machine
Type: BFT 90/5 MSC – 5 axes
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
