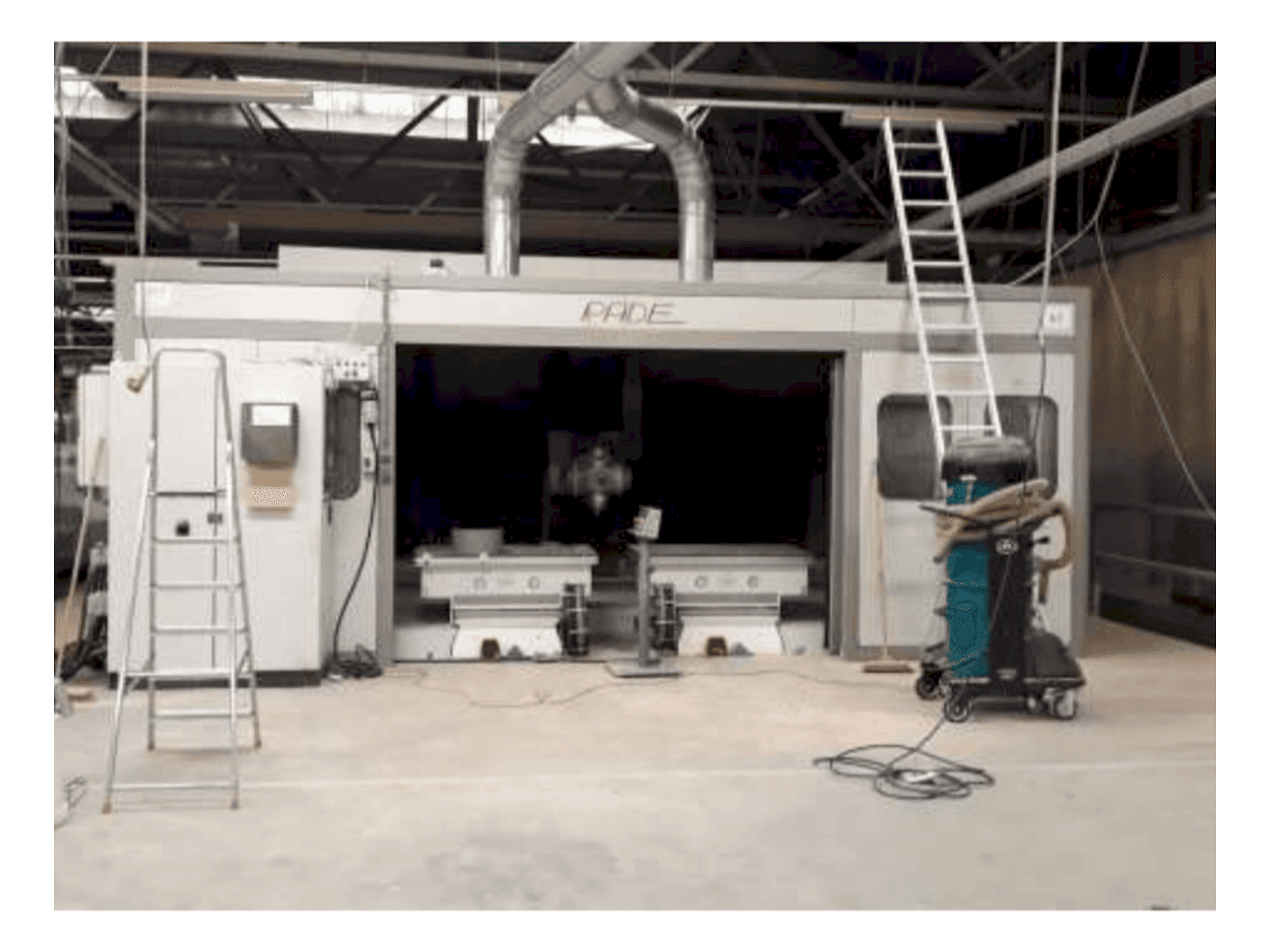

Front view of PADE UNI 5 concept machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

PADE UNI 5 concept

Photo Gallery

PADE - UNI 5 conceptRS-MIL-PAD-2002-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
PADE UNI 5 concept Milling

Show in original language

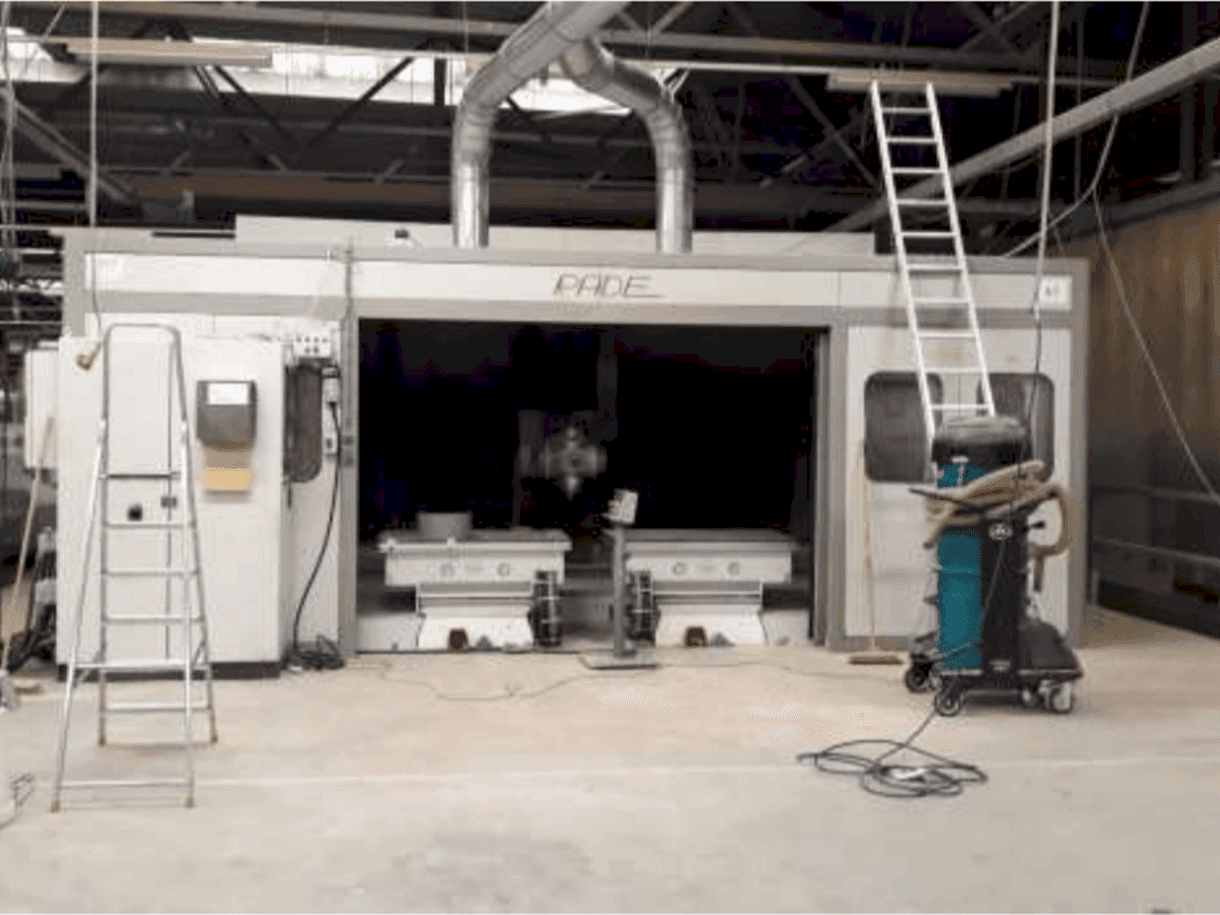

This PADE UNI 5 concept Universal Machine Center was manufactured in 2002. It is operated through a CNC NUM 1040 W.1 PC version control unit. This 6 axis machine has a spindle speed up to 18000 rpm. It has a CNC NUM 1040 Standard feature and a conveyor belt for wood-dust and cut-pieces. the hand pedant is not included.

Overview

brand: PADE
year: 2002
MODEL: UNI 5 concept
production hours: 27030
application type: Milling
Location: Serbia
machine type: Universal Machining Centre

Technical Information - PADE UNI 5 concept

General Data

Measurements width: 6500 mm
Measurements depth: 4085 mm
Measurements height: 2060 mm
Machine weight: 5200 kg

Control Unit

Model: 1040 W.1 PC version

Main drive

Spindle speed range: 18000 rpm 1/MIN
Number of axis: 6

Movement

X-AXIS Movement: 3500 mm
Y-AXIS Movement: 1240 mm
Z-AXIS Movement: 1230 mm

Workpiece

Workpiece x: 3500 mm

Table

Outer length: 1250 mm
Outer width: 800 mm

Additional Information

Machine Benefits

Qualitative Machine Benefits

Cnc num 1040 standard feature
Conveyor belt for wood-dust and cut-pieces
Air-conditioning in the electrical cabinet

Technical Machine Benefits

Routing head with four different tools
Y1 i y2 axis-transversal: 1240 mm
Z axis-height: 1230 mm
A axis (rotation): unlimited
B axis (rotation): 400 degrees
Maximum tolerance axes x, y and z – 0,05 mm
Maximum tolerance axes a and b – 0,02 degrees
Chunk shank – type er40
Rapid tool attachment – hsk50
Number of electro motors: 4

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
