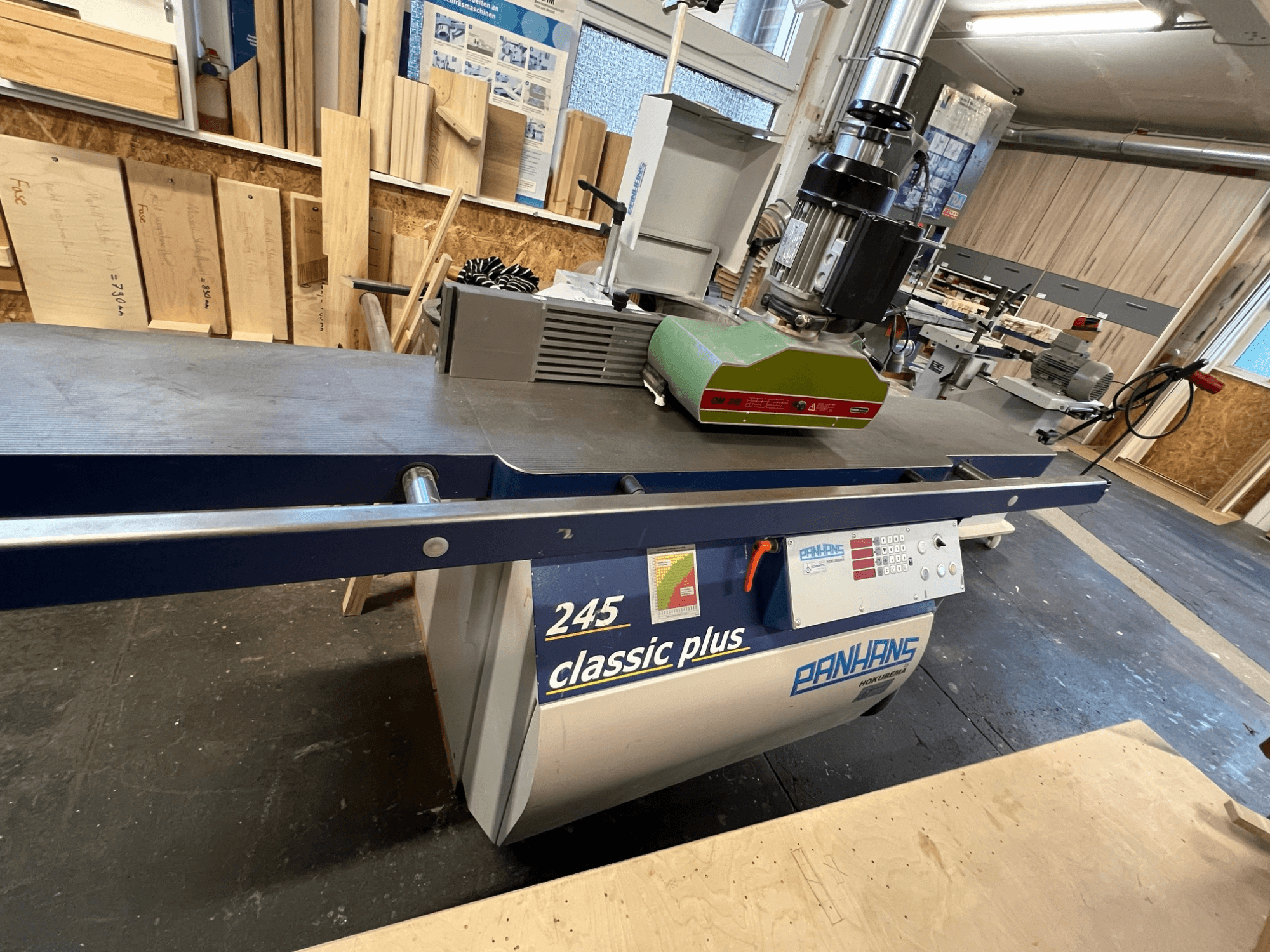

Spindle moulder manufactured in 2013. This PANHANS 245 features a robust table size of 1100 × 760 mm and a spindle height adjustment of 125 mm. It operates at spindle speeds of 3000, 4500, 6000, and 9000 rpm, making it suitable for various woodworking applications. If you are looking to get high-quality woodworking capabilities, consider the PANHANS 245 spindle moulder we have for sale. Contact us for further details.
Overview
- brand: PANHANS
- year: 2013
- MODEL: 245
- production hours: 3675
- application type: Profiling
- Location: Germany
- machine type: Spindle Moulder
Technical Information - PANHANS 245
Dimensions
- Machine Weight: 880 kg
Technical Specification
- Spindle Power: 5.5 kW
- Spindle Speed: 9000 RPM
Additional Information
Voltage: 400 V
Frequency: 50 Hz
Phases: 3
Current type: AC
Motor power: 5.5 kW
Spindle speeds: 3000 / 4500 / 6000 / 9000 rpm
Table size: 1100 × 760 mm
Table height: 880 mm
Spindle height adjustment: 125 mm
Spindle diameter: 30 mm
Tilting range: −5° to +45.5°
Extraction connection: 2 × 120 mm
Required space: approx. 5000 × 2800 mm
Noise level (idle): 67.4 dB(A)
Noise level (working): 82.4 dB(A)
Sound power level (idle): 83.0 dB(A)
Sound power level (working): 91.2 dB(A)
Operating hours: 3,675 h
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
