Parpas PHS 920P Milling Machine

Show in original language

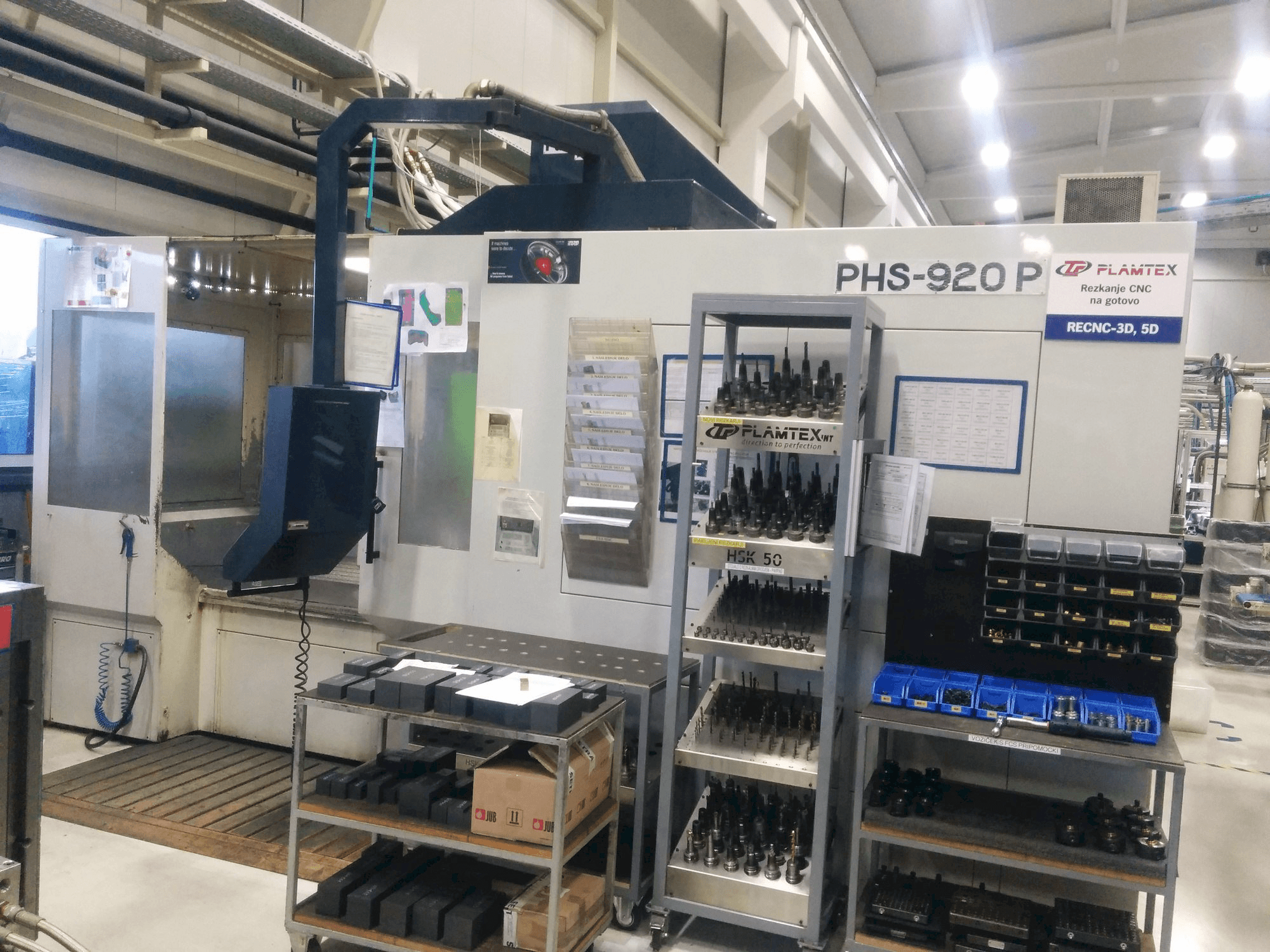

This Parpas PHS 920P Milling Machine was manufactured in Italy in the year 2003 and has been working for 48386 hours. This 5 axis machine is capable of working with a spindle speed up to 2000 rpm. This machine stands out for its table load of 4000 kg.

Overview

brand: Parpas
year: 2003
MODEL: PHS 920P
production hours: 48386
application type: Milling
Location: Slovenia
machine type: Gantry Milling Machine
control unit brand: HEIDENHAIN

Technical Information - Parpas PHS 920P

Control Unit

Control Brand: HEIDENHAIN
Control Model: 530

Dimensions

Machine Depth: 5200 mm
Machine Height: 3300 mm
Machine Weight: 12000 kg
Table Length: 2100 mm
Table Load: 4000 kg
Table Width: 850 mm

Movement

Number of Axes: 5
X-axis Travel: 2000 mm
Y-axis Travel: 1200 mm
Z-axis Travel: 500 mm

Technical Specification

Max. Tool Weight: 3 kg
Spindle Power: 15 kW
Spindle Speed: 20000 RPM

Additional Information

Additional equipment

Chiller
Air Dryer for spindle

Machine Benefits

Qualitative Machine Benefits

Very rigid machine structure-portal design

Technical Machine Benefits

Atc with 20 positions with a heidenhain tool measuring system
Portal design optimised with fem analyze
5 axis simultaneous machining
Spindle with direct drive, cooled with air/water and cnc controlled thermal
Compensation of z axis
Heidenhain touch probe for piece presenting and measuring
Feedrates: max 30m/min

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
