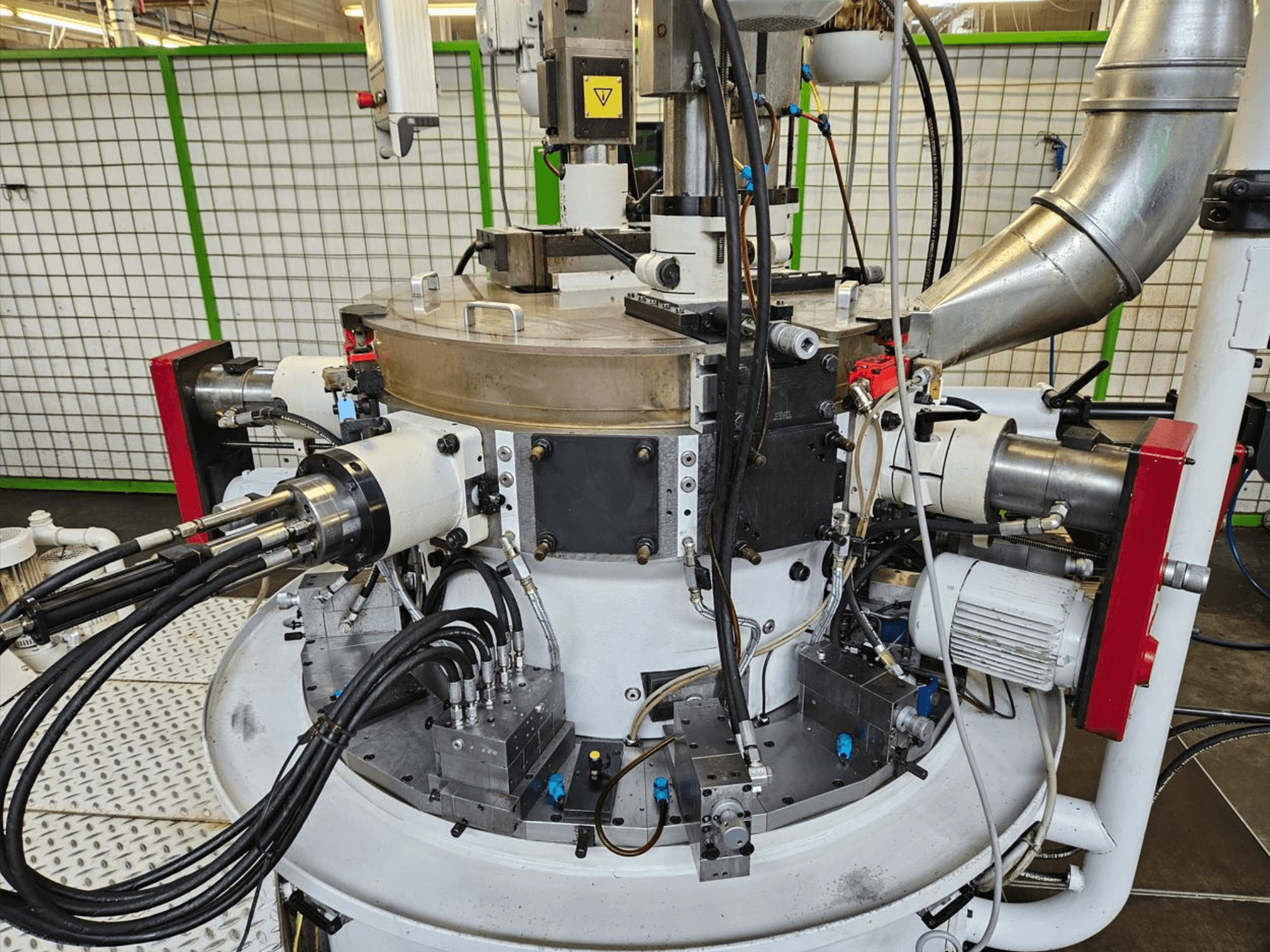

Close-up view of an industrial machine with hydraulic hoses, metal components, and a rotating base. No brand visible.
Close-up view of an industrial machine with hydraulic hoses, metal components, and a rotating base. No brand visible.

PFIFFNER - HW 25-12HU-OTH-PFI-2012-00001

141,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

Horizontal transfer machine manufactured in 2012. This PFIFFNER HW 25-12 features a 12-station indexing rotary table and can accommodate up to 18 machining units. With a maximum clamping diameter of Ø 25 mm and a workpiece length of 100 mm, it offers versatile capabilities. Consider the opportunity to buy this PFIFFNER HW 25-12 machine. Contact us for further details.

Overview

  • brand: PFIFFNER
  • year: 2012
  • MODEL: HW 25-12
  • application type: Other Machine Tools
  • Location: Hungary
  • machine type: Machine Tool
  • control unit brand: SIEMENS

Technical Information - PFIFFNER HW 25-12

Control Unit

  • Control Brand: SIEMENS
  • Control Model: SINUMERIK 840D

Dimensions

  • Machine Weight: 7600 kg

Movement

  • Number of Axes: 3

Technical Specification

  • Spindle Power: 32 kW

Additional Information

  • Number of stations: 12

  • Indexing rotary table: 12-station

  • Indexing time: 0.5 s

Machining units

  • Horizontal machining units: max. 12

  • Vertical machining units: max. 6

  • Total machining units: max. 18

Workpiece and clamping

  • Clamping system: Collets

  • Collet type: W 25

  • Max. clamping diameter: 25 mm

  • Max. workpiece length: 100 mm

Electrical data

  • Voltage: 3 × 400 V

  • Current: 3‑phase AC

  • Frequency: 50 Hz

  • Control voltage: 24 V

Control system

  • Machine control base: Siemens SIMATIC S7

  • Interfaces: AS‑i, PROFIBUS

  • Prepared for CNC axes expansion

  • Optional teleservice for remote diagnostics

Cooling and hydraulics

  • Coolant system capacity: 850 L

  • Coolant (filled): approx. 800 kg

  • Hydraulic unit (empty): approx. 250 kg

  • Hydraulic oil: 150 L

Weights (approx.)

  • Base machine: 3,000 kg

  • Electrical cabinet: 700 kg

  • Coolant system (empty): 1,600 kg

  • Pedestal: 300 kg

Additional equipment

  • Loading magazine (empty): 800 kg

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
